Содержание
- Body lock security system 1
- Contents 1
- I body 1
- Sectio 1
- Lhd models 5
- Maintenance information 5
- Precautions 5
- Precautions for supplemental restraint system srs air bag and seat belt pre tensioner 5
- Rhd models 5
- Clip and fastener 6
- List of table 6
- Fitting adjustment 7
- Front end height adjustment and lateral longitudinal clearance adjust ment 7
- Front end height adjustment and lateral longitudinal clearance adjustment 7
- Surface mismatch adjustment 7
- Hood hinge 8
- Removal 8
- Removal and installation 8
- Removal hood assembly 8
- After installing perform hood fitting adjustment refer to bl 7 fitting adjustment 9
- Apply anti corrosion wax m 97 super or comparable product to the hood hinge hood ledge and hood assembly 9
- Installation 9
- Perform installation in the reverse order of removal while being careful of the following items while per forming the work 9
- Removal and installation of hood lock control 9
- Removal hood lock 9
- Remove bolts and then remove hood hinge 9
- Remove front bumper refer to ei 10 removal and installation 9
- Hood lock cable 10
- Hood lock mounting reinforcement 10
- Installation 10
- Hood lock cable 11
- Hood lock control inspection 11
- Radiator core lower support 13
- Radiator core support 13
- Removal and installation 13
- Removal radiator core upper support 13
- Front fender 15
- Installation 15
- Removal 15
- Removal and installation 15
- Operation 17
- Power door lock system 17
- System description 17
- Back door release actuator operation 18
- Back door switch operation 18
- Door lock and unlock switch operation 18
- Key reminder system 18
- Power door lock system 18
- Selectable function 18
- Unlock link function 18
- Anti hijack function 19
- Auto re lock function 19
- Back door opener opertion 19
- Can communication 19
- Can communication unit 19
- Power door lock system 19
- System description 19
- Power door lock system 21

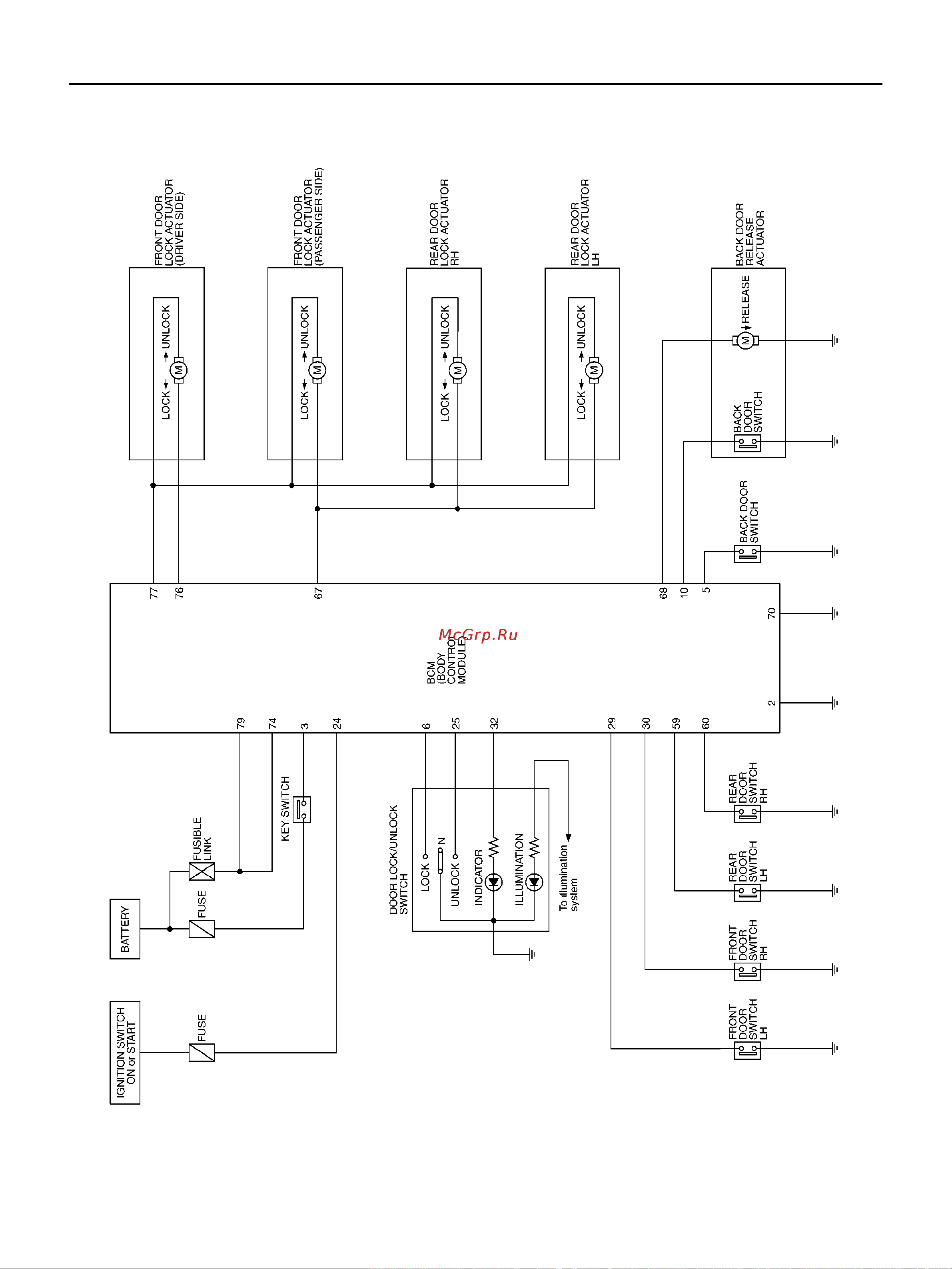

- Wiring diagram d lock without intelligent key system 21
- Power door lock system 23
- Power door lock system 25
- Power door lock system 27
- Wiring diagram d lock with intelligent key system 27
- Power door lock system 29
- Power door lock system 31
- Power door lock system 33
- Terminal and reference value for bcm 33
- Active test 34
- Auto lock set 34
- Consult ii application items 34
- Consult ii inspection procedure 34
- Data monitor 34
- Power door lock system 34
- Refer to gi 36 consult ii start procedure 34
- Security door lock set 34
- Work support 34
- Ble diagnoses chart by symptom with intelligent key system 4 does power door lock system operate normally yes go to 5 no go to 2 5 inspection end 35
- Check the symptom and customer s requests 2 understand the outline of system refer to bl 17 system description 3 according to the trouble diagnosis repair or replace the cause of the malfunction refer to bl 35 trou ble diagnoses chart by symptom without intelligent key system or bl 36 trou 35
- Note always check the work flow before troubleshooting refer to bl 35 work flow 35
- Power door lock system 35
- Trouble diagnoses chart by symptom without intelligent key system 35
- Work flow 35
- Note always check the work flow before troubleshooting refer to bl 35 work flow 36
- Power door lock system 36
- Trouble diagnoses chart by symptom with intelligent key system 36
- Check power supply and ground circuit of bcm 37
- First perform the self diag results in bcm with consult ii then perform the each trou ble diagnosis of malfunction system indicated self diag results of bcm refer to bcs 9 consult ii function bcm 37
- Power door lock system 37
- Check door lock unlock switch 38
- Check door lock unlock switch signal 38
- Check the following 38
- Go to 2 38
- Ground circuit for door lock unlock switch 38
- Ok or ng 38
- Power door lock system 38
- Replace door lock unlock switch 38
- Turn ignition switch off 2 disconnect door lock unlock switch connector 3 check continuity between door lock unlock switch terminals 38
- When door lock unlock switch is turned to lock cdl lock sw on when door lock unlock switch is turned to unlock cdl unlock sw on 38
- With consult ii check door lock unlock switch input signal cdl lock sw cdl unlock sw in data monitor mode with consult ii 38
- Without consult ii operate door lock unlock switch check voltage between bcm connector m57 terminal 6 25 and ground 38
- Check key switch without intelligent key system 39
- Power door lock system 39
- Check key switch and ignition knob switch with intelligent key system 40
- Power door lock system 40
- Check door lock actuator circuit 41
- Power door lock system 41
- Check door lock actuator 42
- Driver side 42
- Power door lock system 42
- Passenger side 43
- Power door lock system 43
- Power door lock system 44
- Rear lh side 44
- Power door lock system 45
- Rear rh side 45
- Check door switch 46
- Driver side 46
- Power door lock system 46
- Power door lock system 47
- Passenger side 48
- Power door lock system 48
- Power door lock system 49
- Check continuity between bcm connector and ground 50
- Check door switch input signal 50
- Check harness continuity 50
- Go to 2 50
- Ok or ng 50
- Power door lock system 50
- Rear lh side 50
- Repair or replace harness 50
- Turn ignition switch off 2 disconnect bcm and rear door switch lh connector 3 check continuity between bcm connector and rear door switch lh connector 50
- When rear door lh side is opened door sw rl on when rear door lh side is close door sw rl off 50
- With consult ii check door switch door sw rl in data monitor mode with consult ii 50
- Without consult ii check voltage between bcm connector m58 terminal 59 and ground 50
- Power door lock system 51
- Check continuity between bcm connector and ground 52
- Check door switch input signal 52
- Check harness continuity 52
- Go to 2 52
- Ok or ng 52
- Power door lock system 52
- Rear rh side 52
- Repair or replace harness 52
- Turn ignition switch off 2 disconnect bcm and rear door switch rh connector 3 check continuity between bcm connector and rear door switch rh connector 52
- When rear door rh side is opened door sw rr on when rear door rh side is close door sw rr off 52
- With consult ii check door switch door sw rr in data monitor mode with consult ii 52
- Without consult ii check voltage between bcm connector and ground 52
- Back door switch 53
- Power door lock system 53
- Check back door switch 54
- Check back door switch ground harness 54
- Check back door switch harness 54
- Check continuity between back door switch connector and ground 54
- Check continuity between back door switch terminal 54
- Disconnect back door switch connector 2 check voltage between back door switch connector and ground check harness for open 54
- Disconnect bcm connector 4 check continuity between back door switch connector and ground check harness for short 54
- Ok or ng 54
- Power door lock system 54
- Repair or replace harness 54
- Replace back door release actuator back door switch 54
- Replace back door switch 54
- Back door switch is pushed trnk opnr sw on back door switch is released trnk opnr sw off 55
- Check back door switch 55
- Check back door switch input signal 55
- Check continuity between bcm connector and ground 55
- Check harness continuity 55
- Go to 2 55
- Ok or ng 55
- Power door lock system 55
- Repair or replace harness 55
- Turn ignition switch off 2 disconnect bcm and back door switch connector 3 check continuity between bcm connector and back door switch connector 55
- With consult ii check back door switch trnk opnr sw in data monitor mode with consult ii 55
- Without consult ii check voltage between bcm connector and ground 55
- Power door lock system 56
- Check back door release actuator 57
- Check back door release output signal perform trunk back door in active test mode with consult ii 57
- Check bcm output signal 57
- Check continuity between bcm connector and ground 57
- Check harness continuity 57
- Disconnect bcm connector 2 check continuity between bcm connector and back door release actuator connector 57
- Go to 2 57
- Go to 3 57
- Ok or ng 57
- Power door lock system 57
- Repair or replace harness 57
- Turn ignition switch off 2 disconnect back door release actuator connector 3 operate back door switch check voltage between back door release actuator connector b46 terminal 4 and ground 57
- When active test is executed does the back door open 57
- Check continuity between back door release actuator connector and ground 58
- Check continuity between door lock unlock switch indicator harness connector terminals 3 and 5 58
- Check door lock unlock switch indicator 58
- Check ground circuit 58
- Ok or ng 58
- Power door lock system 58
- Repair or replace harness 58
- Replace door lock unlock switch 58
- Component parts and harness connector location 59
- Power door lock super lock 59
- Operation 60
- Power door lock super lock 60
- System description 60
- Back door opener opertion 61
- Back door release actuator operation 61
- Back door switch operation 61
- Door lock and unlock switch operation 61
- Key reminder system 61
- Power door lock super lock 61
- Selectable function 61
- Unlock link function 61
- Anti hijack function 62
- Auto re lock function 62
- Operation power door lock unlock and super lock set release operation by remote controller or intelligent key 62
- Outline 62
- Power door lock and super lock release operation 62
- Power door lock super lock 62
- Power door lock unlock and super lock release operation by door key cylinder 62
- Super lock operation 62
- Can communication 63
- Can communication unit 63
- Can controller area network is a serial communication line for real time application it is an on vehicle mul tiplex communication line with high data communication speed and excellent error detection ability many elec tronic control units are equipped onto a vehicle and each control unit shares information and links with other control units during operation not independent in can communication control units are connected with 2 communication lines can h line can l line allowing a high rate of information transmission with less wiring each control unit transmits receives data but selectively reads required data only 63
- Power door lock super lock 63
- Refer to lan 27 can communication unit 63
- System description 63
- Power door lock super lock 65
- Wiring diagram s lock without intelligent key system 65
- Power door lock super lock 67
- Power door lock super lock 69
- Power door lock super lock 71
- Schematic s lock with intelligent key system 71
- Power door lock super lock 73
- Power door lock super lock 75
- Power door lock super lock 77
- Power door lock super lock 78
- Terminal and reference value for bcm 78
- Active test 79
- Auto lock set 79
- Ble diagnoses chart by symptom with intelligent key system 4 does power door lock system operate normally 79
- Check the symptom and customer s requests 2 understand the outline of system refer to bl 17 system description 3 according to the trouble diagnosis repair or replace the cause of the malfunction refer to bl 35 trou ble diagnoses chart by symptom without intelligent key system or bl 36 trou 79
- Consult ii application items 79
- Consult ii inspection procedure 79
- Data monitor 79
- Power door lock super lock 79
- Refer to gi 36 consult ii start procedure 79
- Security door lock set 79
- Work flow 79
- Work support 79
- Power door lock super lock 80
- Power door lock super lock 81
- Preliminary check without intelligent key system 81
- Trouble diagnoses 81
- Note before starting trouble diagnosis below perform preliminary check bl 81 preliminary check without intelligent key system symptom numbers in the symptom chart correspond with those of preliminary check 82
- Power door lock super lock 82
- Symptom chart without intelligent key system 82
- Power door lock super lock 83
- Preliminary check with intelligent key system 83
- Note before starting trouble diagnosis below perform preliminary check bl 83 preliminary check with intelligent key system symptom numbers in the symptom chart correspond with those of preliminary check 84
- Power door lock super lock 84
- Symptom chart with intelligent key system 84
- Check power supply and ground circuit 85
- First perform the self diag results in bcm with consult ii then perform the each trou ble diagnosis of malfunction system indicated self diag results of bcm refer to bcs 9 consult ii function bcm 85
- Power door lock super lock 85
- Check door lock unlock switch 86
- Check door lock unlock switch signal 86
- Check the following 86
- Go to 2 86
- Ground circuit for door lock unlock switch 86
- Ok or ng 86
- Power door lock super lock 86
- Replace door lock unlock switch 86
- Turn ignition switch off 2 disconnect door lock unlock switch connector 3 check continuity between door lock unlock switch terminals 86
- When door lock unlock switch is turned to lock cdl lock sw on when door lock unlock switch is turned to unlock cdl unlock sw on 86
- With consult ii check door lock unlock switch input signal cdl lock sw cdl unlock sw in data monitor mode with consult ii 86
- Without consult ii operate door lock unlock switch check voltage between bcm connector and ground 86
- Check key switch without intelligent key system 87
- Power door lock super lock 87
- Check key switch and ignition knob switch with intelligent key system 88
- Power door lock super lock 88
- Check continuity between key switch connector and ground 89
- Check power door lock output signal 89
- Check power door lock unlock output signal 89
- Disconnect intelligent key unit connector 2 check continuity between intelligent key unit connector and key switch and ignition knob switch connec tor 89
- Insert mechanical key into ignition knob 2 check continuity between key switch and ignition knob switch connector m34 terminal 89
- Key switch circuit inspection 89
- Key switch operation inspection 89
- Ok or ng 89
- Operate door lock unlock switch check voltage between bcm connector and ground 89
- Power door lock super lock 89
- Repair or replace harness between intelligent key unit and key switch and ignition knob switch 89
- Replace bcm 89
- Replace key switch 89
- Check super lock output signal 90
- Ok or ng 90
- Operate remote controller check voltage between bcm connector and ground 90
- Power door lock super lock 90
- Replace bcm 90
- Check door lock actuator 91
- Driver side 91
- Power door lock super lock 91
- Passenger side 92
- Power door lock super lock 92
- Power door lock super lock 93
- Rear lh side 93
- Power door lock super lock 94
- Rear rh side 94
- Check super lock actuator 95
- Driver side 95
- Power door lock super lock 95
- Passenger side 96
- Power door lock super lock 96
- Power door lock super lock 97
- Rear lh side 97
- Power door lock super lock 98
- Rear rh side 98
- Check door switch 99
- Driver side 99
- Power door lock super lock 99
- Bl 100 100
- Power door lock super lock 100
- Bl 101 101
- Passenger side 101
- Power door lock super lock 101
- Bl 102 102
- Power door lock super lock 102
- Bl 103 103
- Check continuity between bcm connector and ground 103
- Check door switch input signal 103
- Check harness continuity 103
- Go to 2 103
- Ok or ng 103
- Power door lock super lock 103
- Rear lh side 103
- Repair or replace harness 103
- Turn ignition switch off 2 disconnect bcm and rear door switch lh connector 3 check continuity between bcm connector and rear door switch lh connector 103
- With consult ii check door switch door sw rl in data monitor mode with consult ii 103
- Without consult ii check voltage between bcm connector and ground 103
- Bl 104 104
- Power door lock super lock 104
- Bl 105 105
- Check continuity between bcm connector and ground 105
- Check door switch input signal 105
- Check harness continuity 105
- Go to 2 105
- Ok or ng 105
- Power door lock super lock 105
- Rear rh side 105
- Repair or replace harness 105
- Turn ignition switch off 2 disconnect bcm and rear door switch rh connector 3 check continuity between bcm connector and rear door switch rh connector 105
- With consult ii check door switch door sw rr in data monitor mode with consult ii 105
- Without consult ii check voltage between bcm connector and ground 105
- Bl 106 106
- Power door lock super lock 106
- Back door switch is pushed trnk opnr sw on back door switch is released trnk opnr sw off 107
- Bl 107 107
- Check back door switch 107
- Check back door switch input signal 107
- Check continuity between bcm connector and ground 107
- Check harness continuity 107
- Go to 2 107
- Ok or ng 107
- Power door lock super lock 107
- Repair or replace harness 107
- Turn ignition switch off 2 disconnect bcm and back door switch connector 3 check continuity between bcm connector and back door switch connector 107
- With consult ii check back door switch trnk opnr sw in data monitor mode with consult ii 107
- Without consult ii check voltage between bcm connector and ground 107
- Bl 108 108
- Power door lock super lock 108
- Bl 109 109
- Check back door release actuator 109
- Check back door release output signal perform trunk back door in active test mode with consult ii 109
- Check bcm output signal 109
- Check continuity between bcm connector and ground 109
- Check harness continuity 109
- Disconnect bcm connector 2 check continuity between bcm connector and back door release actuator connector 109
- Go to 2 109
- Go to 3 109
- Ok or ng 109
- Power door lock super lock 109
- Repair or replace harness 109
- Turn ignition switch off 2 disconnect back door release actuator connector 3 operate back door switch check voltage between back door release actuator connector and ground 109
- When active test is executed does the back door open 109
- Bl 110 110
- Check continuity between back door release actuator connector and ground 110
- Check ground circuit 110
- Ok or ng 110
- Power door lock super lock 110
- Repair or replace harness 110
- Bl 111 111
- Component parts and harness connector location 111
- Multi remote control system 111
- Bl 112 112
- Inputs 112
- Multi remote control system 112
- Outline power door lock operation 112
- System description 112
- Answer back 113
- Bl 113 113
- Multi remote control system 113
- Remote controller id code entry 113
- Bl 115 115
- Multi remote control system 115
- Wiring diagram multi 115
- Bl 117 117
- Multi remote control system 117
- Bl 119 119
- Multi remote control system 119
- Terminal and reference value for bcm 119
- Bl 120 120
- Check the trouble symptom and customer s requests 2 understand outline of system refer to bl 112 system description 3 confirm that power door lock system operates normally refer to bl 16 power door lock system 4 refer to trouble diagnosis chart by symptom repair or replace any malfunctioning parts 5 inspection end 120
- Consult ii application items 120
- Consult ii inspection procedure 120
- Data monitor 120
- Multi remote control system 120
- Refer to gi 36 consult ii start procedure 120
- Work flow 120
- Always check remote controller battery before replacing remote controller 121
- Always check work flow before troubleshooting refer to bl 120 work flow 121
- Bl 121 121
- First perform the self diag results in bcm with consult ii when perform the each trouble diagno sis refer to bcs 9 consult ii function bcm note 121
- Multi remote control system 121
- Trouble diagnosis chart by symptom 121
- Bl 122 122
- Check door switch 122
- Check remote controller 122
- Door switch driver side 122
- Multi remote control system 122
- Bl 123 123
- Check continuity between bcm connector m57 terminal 30 and ground 123
- Check continuity between bcm connector m57 terminal 30 and passenger door switch connector b29 lhd models or b14 rhd models terminal 1 123
- Check continuity between driver door switch terminal 1 and ground part of door switch 123
- Check door switch 123
- Check door switch harness 123
- Check door switch input signal 123
- Door switch passenger side 123
- Go to 2 123
- Multi remote control system 123
- Ok or ng 123
- Repair or replace harness 123
- Replace driver door switch 123
- Turn ignition switch off 2 check voltage between bcm connector m57 terminal 30 and ground 123
- Bl 124 124
- Door switch rear lh 124
- Multi remote control system 124
- Bl 125 125
- Check continuity between bcm connector and ground 125
- Check continuity between bcm connector and rear door switch rh connector 125
- Check continuity between rear door switch rh terminal 1 and ground part of door switch 125
- Check door switch 125
- Check door switch harness 125
- Check door switch input signal 125
- Door switch rear rh 125
- Go to 2 125
- Multi remote control system 125
- Ok or ng 125
- Repair or replace harness 125
- Replace rear door switch rh 125
- Turn ignition switch off 2 check voltage between bcm connector m58 terminal 60 and ground 125
- Back door release actuator back door switch 126
- Bl 126 126
- Check back door release actuator back door switch harness 126
- Check back door release actuator back door switch input signal 126
- Check back door switch 126
- Check continuity between back door release actuator back door switch terminal 1 and 2 126
- Disconnect back door release actuator back door switch connector 2 check voltage between back door release actuator back door switch connector and ground check harness for open 126
- Disconnect bcm connector 4 check continuity between back door release actuator back door switch connector and ground check harness for short 126
- Go to 2 126
- Multi remote control system 126
- Ok or ng 126
- Repair or replace harness 126
- Replace back door release actuator back door switch 126
- Turn ignition switch off 2 check voltage between bcm connector m57 terminal 10 and ground 126
- A fuse no 9 located in fuse block j b 127
- Bl 127 127
- Check back door switch ground harness 127
- Check continuity between back door release actuator back door switch connector and ground 127
- Check key switch input signal 127
- Check key switch insert 127
- Check the following 127
- Check voltage between bcm connector m57 terminal 3 and ground 127
- Disconnect key switch connector 2 check continuity between key switch terminals 127
- Go to 2 127
- Harness for open or short between key switch and fuse 127
- Key switch check 127
- Multi remote control system 127
- Ok or ng 127
- Replace back door switch 127
- Replace key switch 127
- Bl 128 128
- Hazard reminder check 128
- Multi remote control system 128
- Bl 129 129
- Multi remote control system 129
- Remote controller battery replacement 129
- Bl 130 130
- Component parts and harness connector location 130
- Intelligent key system 130
- Bl 131 131
- Intelligent key system 131
- Bl 132 132
- Door lock function operation description 132
- Intelligent key system 132
- System description 132
- Auto door lock function 133
- Bl 133 133
- Intelligent key lock in prevention function 133
- Intelligent key system 133
- Key reminder function 133
- Operation condition 133
- Operation range 133
- Remote control entry functions door lock function 133
- Active check function 134
- Bl 134 134
- Engine startup function operation description 134
- Intelligent key system 134
- Lock condition 134
- Map lamp function 134
- Mt vehicle key interlock function 134
- Operation range 134
- Unlock condition 134
- Bl 135 135
- Ignition switch off position warning combination buzzer when door closed this warning is issued when the user forgets to return the ignition knob to the lock position 135
- Ignition switch off position warning intelligent key warning buzzer driver door when door opened closed this warning is issued when the user leaving the car without returning the ignition knob to the lock posi tion 135
- Ignition switch return forgotten warning with the ignition in off or acc position if the driver door is opened this warning is issued 135
- Intelligent key low battery warning this warning is issued when it detects that the battery in the intelligent key is running low 135
- Intelligent key system 135
- Key left in ignition warning when mechanical key is used while the mechanical key in the ignition knob and the ignition switch is in the off acc or lock posi tion if the driver door is opened this warning is issued 135
- Operation condition 135
- This warning is issued if the intelligent key is taken outside the car through a window while the engine is running from window 135
- This warning is issued if the intelligent key is taken outside the car while the engine is running when door open closed 135
- Warning and alarm function operation description 135
- Warnings and alarms shown as follows and are given to the user as warning notice when using the combina tions of intelligent key warning buzzer driver door inside vehicle buzzer in combination meter and warning lamps key and lock 135
- When any of the following conditions are met 135
- Bl 136 136
- Door ajar alarm 136
- Intelligent key lock in prevention warning 136
- Intelligent key system 136
- Knob return forgotten warning 136
- Warning procedure 136
- Bl 137 137
- Change settings function 137
- Changing anti hijack function settings with the intelligent key 137
- Changing settings using consult ii 137
- Intelligent key registration 137
- Intelligent key system 137
- Steering lock unit registration steering lock unit id registration 137
- Bl 139 139
- Intelligent key system 139
- Wiring diagram i key 139
- Bl 141 141
- Intelligent key system 141
- Bl 143 143
- Intelligent key system 143
- Bl 145 145
- Intelligent key system 145
- Bl 147 147
- Intelligent key system 147
- Bl 149 149
- Intelligent key system 149
- Terminals and reference value for intelligent key unit 149
- Bl 150 150
- Intelligent key system 150
- Bl 151 151
- Intelligent key system 151
- Terminal and reference value for bcm 151
- Terminals and reference value for steering lock unit 151
- Bl 152 152
- Intelligent key system 152
- Bl 153 153
- Intelligent key system 153
- Preliminaly check 153
- Trouble diagnosis procedure 153
- Bl 154 154
- Intelligent key system 154
- Work flow 154
- Basic operation 155
- Bl 155 155
- Caution if consult ii is used with no connection consult ii converter malfunctions might be detected in self diagnosis depending on control unit which performs can communication 155
- Consult ii application items 155
- Consult ii can display each diagnostic item using the diagnostic test modes as shown below 155
- Consult ii function intelligent key 155
- Consult ii inspection procedure 155
- Data monitor 155
- Intelligent key system 155
- Refer to gi 36 consult ii start procedure 155
- Self diagnostic results 155
- Active test 156
- Bl 156 156
- Intelligent key system 156
- Work support 156
- Bl 157 157
- Conditions of vehicle operating conditions 157
- Intelligent key system 157
- Key warning lamp green illuminates 157
- Key warning lamp red illuminates 157
- Trouble diagnosis symptom chart 157
- Before performing the diagnosis in the following table check trouble diagnosis procedure refer to bl 153 trouble diagnosis procedure 158
- Bl 158 158
- Check if ignition switch turns using mechanical key if it turns check if engine start by i key in work support mode is on 158
- Conditions of vehicle operating conditions 158
- Engine start condition check 158
- If the following symptoms are detected check systems shown in the diagnoses service procedure col umn in this order 158
- Intelligent key is registered 158
- Intelligent key system 158
- Key is not inserted in ignition switch 158
- Key warning lamp does not illuminate 158
- Make sure that vehicle is under the condition shown in conditions of vehicle before starting diagnosis and check each symptom 158
- Multiple mechanical keys are not set in a keyfob if mechanical keys are near the ignition switch the operation may not work properly 158
- One or more registered intelligent keys are in the vehicle 158
- Self diagnosis results are not displayed 158
- All doors are closed 159
- Before performing the diagnosis in the following table check trouble diagnosis procedure refer to bl 153 trouble diagnosis procedure 159
- Bl 159 159
- Conditions of vehicle operating conditions 159
- Door lock unlock function malfunction 159
- If the following symptoms are detected check systems shown in the diagnosis procedure column in this order 159
- Ignition switch is not depressed 159
- Intelligent key system 159
- Lock unlock by i key is on when setting on consult ii 159
- Make sure that vehicle is under the condition shown in conditions of vehicle before starting diagnosis and check each symptom 159
- Remote keyless entry function malfunction 159
- All doors are closed 160
- Bl 160 160
- Conditions of vehicle operating conditions 160
- If the following symptoms are detected check systems shown in the diagnosis service procedure col umn in this order 160
- Ignition switch is not depressed 160
- Intelligent key system 160
- All doors are closed 161
- Before performing the diagnosis in the following table check trouble diagnosis procedure refer to bl 153 trouble diagnosis procedure 161
- Bl 161 161
- Conditions of vehicle operating conditions 161
- Hazard and buzzer reminder function malfunction 161
- If the following symptoms are detected check systems shown in the diagnosis service procedure col umn in this order 161
- If the following symptoms are detected check systems shown in the diagnosis service procedure col umn in this order conditions of vehicle operating conditions each warning chime function is on when setting on consult ii 161
- Ignition switch is not depressed 161
- Intelligent key system 161
- Make sure that vehicle is under the condition shown in conditions of vehicle before starting diagnosis and check each symptom 161
- Warning chime function malfunction 161
- Bl 162 162
- Intelligent key system 162
- After printing self diagnosis results go to can system refer to lan 163
- Before performing the diagnosis in the following table check trouble diagnosis procedure refer to bl 153 trouble diagnosis procedure 163
- Bl 163 163
- Caution if consult ii is used with no connection of consult ii converter malfunctions might be detected in self diagnosis depending on control unit which performs can communication 163
- Check can communication system 163
- Check display content in self diagnostic results 163
- Check self diagnostic results 163
- Connect consult ii and turn ignition switch on 163
- If the following symptoms are detected check systems shown in the diagnosis service procedure col umn in this order 163
- Intelligent key system 163
- Ok or ng 163
- Replace intelligent key unit 163
- Touch intelligent key on select system screen 163
- Touch self diag results on select diag mode screen 163
- Warning lamp function malfunction 163
- With consult ii 163
- A fuse no 5 located in fuse and fusible link box j b 164
- Between intelligent key unit and fuse 164
- Bl 164 164
- Check continuity between intelligent key unit harness connector and ground 164
- Check ground circuit 164
- Check ignition switch signal 164
- Check ignition switch signal circuit 164
- Check power supply and ground circuit 164
- Check power supply circuit 164
- Check the following 164
- Intelligent key system 164
- Ok or ng 164
- Repair or replace intelligent key power supply circuit 164
- Repair or replace the intelligent key unit ground circuit 164
- Turn ignition switch off 2 disconnect intelligent key unit connector 3 check voltage between intelligent key unit harness connector and ground 164
- Bl 165 165
- Check key switch input signal 165
- Check key switch intelligent key unit input 165
- Check key switch power supply circuit 165
- Go to 2 165
- Intelligent key system 165
- Ok or ng 165
- Remove mechanical key from ignition switch 2 disconnect key switch and ignition knob switch connector 3 check voltage between key switch and ignition knob switch and ground 165
- Repair or replace key switch and ignition knob switch power supply circuit 165
- With consult ii check key switch key sw in data monitor mode with consult ii 165
- Without consult ii 1 turn ignition switch off 2 disconnect intelligent key unit connector 3 check voltage between intelligent key unit and ground 165
- Bl 166 166
- Check continuity between intelligent key unit and ground 166
- Check continuity key switch and ignition knob switch 166
- Check key switch 166
- Check key switch circuit 166
- Disconnect intelligent key unit connector 2 check continuity between intelligent key unit and key switch and ignition knob switch 166
- Intelligent key system 166
- Ok or ng 166
- Repair or replace harness between intelligent key unit and key switch and ignition knob switch 166
- Replace key cylinder assembly built in key switch 166
- Bl 167 167
- Check continuity between bcm and ground 167
- Check continuity key switch and ignition knob switch 167
- Check harness between key switch and ignition knob switch and fuse 167
- Check key switch bcm input 167
- Check key switch circuit 167
- Check key switch operation 167
- Check key switch power supply circuit 167
- Disconnect bcm connector 2 check continuity between bcm and key switch and ignition knob switch 167
- Intelligent key system 167
- Ok or ng 167
- Remove mechanical key from ignition switch 2 disconnect key switch and ignition knob switch connector 3 check voltage between key switch and ignition knob switch and ground 167
- Repair or replace harness between key switch and ignition knob switch and bcm 167
- Replace key cylinder assembly built in key switch 167
- Bl 168 168
- Check ignition knob switch 168
- Check ignition knob switch input signal 168
- Check ignition knob switch power supply circuit 168
- Go to 2 168
- Intelligent key system 168
- Ok or ng 168
- Repair or replace key switch and ignition knob switch power supply circuit 168
- Turn ignition switch off 2 disconnect key switch and ignition knob switch connector 3 check voltage between key switch and ignition knob switch and ground 168
- With consult ii display push sw on data monitor screen and check if on off display is linked to ignition switch oper ation 168
- Without consult ii 1 turn ignition switch off 2 disconnect intelligent key unit connector 3 check voltage between intelligent key unit and ground 168
- Bl 169 169
- Check continuity between intelligent key unit and ground 169
- Check continuity ignition knob switch 169
- Check ignition knob switch 169
- Check ignition knob switch circuit 169
- Disconnect intelligent key unit connector 2 check continuity between intelligent key unit and key switch and ignition knob switch 169
- Intelligent key system 169
- Ok or ng 169
- Repair or replace harness between intelligent key unit and key switch and ignition knob switch 169
- Replace key switch and ignition knob switch 169
- Bl 170 170
- Check door request switch 170
- Go to 2 170
- Intelligent key system 170
- Ok or ng 170
- With consult ii check door request switch dr req sw or as req sw in data monitor mode 170
- Without consult ii 1 turn ignition switch off 2 check voltage between intelligent key unit harness connector and ground 170
- Bl 171 171
- Check continuity between front door request switch connector and ground 171
- Check continuity between intelligent key unit connector and ground 171
- Check door request switch circuit 171
- Check door request switch ground circuit 171
- Check door request switch operation 171
- Check front door request switch 171
- Disconnect intelligent key unit and front door request switch connector 2 check continuity between intelligent key unit connector and front door request switch connector 171
- Intelligent key system 171
- Ok or ng 171
- Repair or replace front door request switch ground cir cuit 171
- Repair or replace harness between intelligent key unit and front door request switch 171
- Replace malfunction front door request switch 171
- Bl 172 172
- Check back door request switch 172
- Check intelligent key unit output signal 172
- Connect intelligent key unit connector 2 check voltage between intelligent key unit connector and ground 172
- Go to 2 172
- Intelligent key system 172
- Ok or ng 172
- Replace intelligent key unit 172
- With consult ii check back door request switch bd tr req sw in data monitor mode 172
- Without consult ii 1 turn ignition switch off 2 check voltage between intelligent key unit connector and ground 172
- Bl 173 173
- Check back door request switch 173
- Check back door request switch circuit 173
- Check back door request switch ground circuit 173
- Check back door request switch operation 173
- Check continuity between back door request switch connector and ground 173
- Check continuity between intelligent key unit connector and ground 173
- Disconnect intelligent key unit and back door request switch connector 2 check continuity between intelligent key unit connector and back door request switch connector 173
- Intelligent key system 173
- Ok or ng 173
- Repair or replace back door request switch ground cir cuit 173
- Repair or replace harness between intelligent key unit and back door request switch 173
- Replace trunk lid request switch 173
- Bl 174 174
- Check door switch 174
- Driver side 174
- Intelligent key system 174
- Bl 175 175
- Intelligent key system 175
- Bl 176 176
- Intelligent key system 176
- Passenger side 176
- Bl 177 177
- Intelligent key system 177
- Bl 178 178
- Check continuity between bcm connector and ground 178
- Check door switch input signal 178
- Check harness continuity 178
- Go to 2 178
- Intelligent key system 178
- Ok or ng 178
- Rear lh side 178
- Repair or replace harness 178
- Turn ignition switch off 2 disconnect bcm and rear door switch lh connector 3 check continuity between bcm connector and rear door switch lh connector 178
- When rear door lh side is opened door sw rl on when rear door lh side is close door sw rl off 178
- With consult ii check door switch door sw rl in data monitor mode with consult ii 178
- Without consult ii check voltage between bcm connector m58 terminal 59 and ground 178
- Bl 179 179
- Intelligent key system 179
- Bl 180 180
- Check continuity between bcm connector and ground 180
- Check door switch input signal 180
- Check harness continuity 180
- Go to 2 180
- Intelligent key system 180
- Ok or ng 180
- Rear rh side 180
- Repair or replace harness 180
- Turn ignition switch off 2 disconnect bcm and rear door switch rh connector 3 check continuity between bcm connector and rear door switch rh connector 180
- When rear door rh side is opened door sw rr on when rear door rh side is close door sw rr off 180
- With consult ii check door switch door sw rr in data monitor mode with consult ii 180
- Without consult ii check voltage between bcm connector and ground 180
- Back door switch 181
- Bl 181 181
- Intelligent key system 181
- Bl 182 182
- Check back door switch 182
- Check back door switch ground harness 182
- Check back door switch harness 182
- Check continuity between back door switch connector and ground 182
- Check continuity between back door switch terminal 182
- Disconnect back door switch connector 2 check voltage between back door switch connector and ground check harness for open 182
- Disconnect bcm connector 4 check continuity between back door switch connector and ground check harness for short 182
- Intelligent key system 182
- Ok or ng 182
- Repair or replace harness 182
- Replace back door release actuator back door switch 182
- Replace back door switch 182
- Bl 183 183
- Check intelligent key warning buzzer circuit 183
- Intelligent key system 183
- Bl 184 184
- Check continuity between intelligent key unit connector and ground 184
- Check outside key antenna circuit 184
- Check outside key antenna driver side and passenger side 184
- Check outside key antenna input signal 1 184
- Disconnect intelligent key unit and outside key antenna connector 2 check continuity between intelligent key unit connector and outside key antenna connector 184
- Go to 2 184
- Intelligent key system 184
- Ok or ng 184
- Repair or replace harness between intelligent key unit and outside key antenna 184
- Turn ignition switch off 2 check signal between intelligent key unit connector and ground with oscilloscope 184
- Bl 185 185
- Check outside key antenna back door 185
- Check outside key antenna input signal 1 185
- Check outside key antenna input signal 2 185
- Go to 2 185
- Intelligent key system 185
- Ok or ng 185
- Replace intelligent key unit 185
- Replace outside key antenna new antenna or other antenna 2 connect intelligent key unit and outside key antenna connector 3 check signal between intelligent key unit connector and ground with oscilloscope 185
- Turn ignition switch off 2 check signal between intelligent key unit connector and ground with oscilloscope 185
- Bl 186 186
- Check continuity between intelligent key unit connector and ground 186
- Check outside key antenna circuit 186
- Check outside key antenna input signal 2 186
- Disconnect intelligent key unit and outside key antenna back door connector 2 check continuity between intelligent key unit connector and outside key antenna back door connector 186
- Intelligent key system 186
- Ok or ng 186
- Repair or replace harness between intelligent key unit and outside key antenna back door 186
- Replace intelligent key unit 186
- Replace outside key antenna new antenna or other antenna 2 connect intelligent key unit and outside key antenna back door connector 3 check signal between intelligent key unit connector and ground with oscilloscope 186
- Bl 187 187
- Check continuity between intelligent key unit connector and ground 187
- Check inside key antenna 187
- Check inside key antenna circuit 187
- Check inside key antenna input signal 1 187
- Disconnect intelligent key unit and inside key antenna connector 2 check continuity between intelligent key unit connector and inside key antenna connector 187
- Go to 2 187
- Intelligent key system 187
- Ok or ng 187
- Repair or replace harness between intelligent key unit and inside key antenna 187
- Turn ignition switch off 2 check signal between intelligent key unit connector and ground with oscilloscope 187
- Bl 188 188
- Check continuity between steering lock unit and ground 188
- Check inside key antenna input signal 2 188
- Check steering lock unit 188
- Check steering lock unit ground circuit 188
- Check steering lock unit power supply 188
- Go to 6 188
- Intelligent key system 188
- Ok or ng 188
- Repair or replace steering lock unit power supply circuit 188
- Replace inside key antenna new antenna or other antenna 2 connect intelligent key unit and inside key antenna connector 3 check signal between intelligent key unit connector and ground with oscilloscope 188
- Replace intelligent key unit 188
- Turn ignition switch off 2 disconnect steering lock unit connector 3 check voltage between steering lock unit and ground 188
- Bl 189 189
- Check intelligent key unit output signal 189
- Check signal between intelligent key unit and ground with oscilloscope 189
- Check steering lock communication signal 189
- Connect steering lock unit connector 2 check voltage between intelligent key unit and ground 189
- Intelligent key system 189
- Ok or ng 189
- Replace intelligent key unit 189
- Bl 190 190
- Check continuity between steering lock unit and ground 190
- Check steering lock unit communication circuit 190
- Check the following 190
- Disconnect intelligent key unit and steering lock unit connectors 2 check continuity between intelligent key unit and steering lock unit 190
- Disconnect intelligent key unit connector 2 check continuity between intelligent key unit and steering lock unit 190
- Intelligent key system 190
- Intelligent key unit ground circuit 190
- Ok or ng 190
- Repair or replace harness between steering lock unit and intelligent key unit 190
- Replace steering lock unit 190
- Bl 191 191
- Check hazard function 191
- Check headlamp function 191
- Check warning buzzer in combination meter 191
- Check warning lamp 191
- Intelligent key system 191
- Bl 192 192
- Check stop lamp switch 192
- Intelligent key system 192
- Bl 193 193
- Installation 193
- Intelligent key disassembly and assembly 193
- Intelligent key inspection 193
- Intelligent key system 193
- Removal 193
- Removal and installation of intelligent key unit 193
- Bl 194 194
- Intelligent key system 194
- Remote controller battery inspection 194
- Bl 195 195
- Fitting adjustment 195
- Front door longitudinal gap and front end height difference adjustment 195
- Remove front fender refer to bl 15 removal and installation 2 loosen the hinge bolts on body then lift the rear end of front door to adjust the clearance and surface dif ference properly 195
- Bl 196 196
- Installation 196
- Rear door longitudinal gap and front end height difference adjustment 196
- Removal and installation 196
- Removal of front door 196
- Striker adjustment 196
- Bl 197 197
- Installation 197
- Removal of rear door 197
- Bl 198 198
- Front door weatherstrip 198
- Installation 198
- Removal 198
- Bl 199 199
- Caution during removal if peeling off the double sided tape is difficult apply remover product equivalent to sumitomo 3m cleaner 30 and then remove the double sided tape when using remover keep it way from open flame and work in a sufficiently ventilated area 199
- Front door weatherstrip 199
- Install in the reverse oprder of removal 199
- Installation 199
- Removal 199
- Removal check link bolts 2 remove door weatherstrip 199
- Bl 200 200
- Component parts location 200
- Front door lock 200
- Removal 200
- Removal and installation 200
- Remove front door finisher refer to ei 20 removal and installation 2 fully close front door glass 3 remove sealing screen 4 remove front door lower sash rear refer to gw 89 removal and installation 5 remove inside handle cable and lock knob cable from holder 6 remove inside handle screws slide handle toward rear of vehi cle disengage handle from door panel and remove inside han dle 200
- Bl 201 201
- Front door lock 201
- Bl 202 202
- Front door lock 202
- Bl 203 203
- Disassembly and assembly 203
- Door key cylinder assembly 203
- Front door lock 203
- Outside handle 203
- Remove handle cover screws 2 remove handle cover and then remove door antenna vehicles with intelligent key systems only 203
- Remove key cylinder escutcheon engagement 3 locations and then remove door key cylinder 2 remove hook 2 locations engagements and then remove door request switch from key cylinder escutcheon vehicles with intelligent key systems only 203
- Bl 204 204
- Component parts location 204
- Disconnect inside handle cable and lock knob cable from inside handle caution during removal and installation work so as not to bend the ends of the lock knob cable and inside handle cable 204
- Rear door lock 204
- Removal 204
- Removal and installation 204
- Remove rear door finisher refer to ei 20 removal and installation 2 remove sealing screen 3 remove partition sash refer to gw 93 removal and installation 4 support door glass while lifting it up to the door window completely closed position 5 remove inside handle bolts slide handle toward rear of vehicle remove engagement with door panel and remove inside handle 204
- Bl 205 205
- Pull outside door handle forward and then slide it toward vehicle rear to remove 205
- Pull outside handle forward while removing outside handle escutcheon 205
- Rear door lock 205
- Remove door lock assembly screws torx t30 205
- Remove door side grommets and then remove outside handle escutcheon screws torx t30 from grommet holes 205
- Remove front and rear gaskets 205
- Bl 206 206
- Rear door lock 206
- Back door 207
- Bl 207 207
- Fitting adjustment 207
- Remove luggage rear plate refer to ei 32 removal and installation 207
- Vertical lateral clearance surface difference adjustment 207
- Back door 208
- Back door assembly 208
- Back door striker 208
- Bl 208 208
- Inspection 208
- Installation 208
- Removal 208
- Back door 209
- Back door stay assembly 209
- Bl 209 209
- Installation 209
- Removal 209
- Back door 210
- Bl 210 210
- Installation 210
- Removal 210
- Removal and installation of back door weatherstrip 210
- Back door handle assembly removal 211
- Back door lock 211
- Back door lock assembly removal 211
- Bl 211 211
- Disassembly and assembly 211
- Installation 211
- Removal and installation 211
- Bl 212 212
- Fuel filler lid opener 212
- Removal 212
- Removal and installation of fuel filler lid opener 212
- Bl 213 213
- Fuel filler lid opener 213
- Install in the reverse order of removal 213
- Installation 213
- Remove fuel filler lid opener cable mounting clip on vehicle 213
- Remove fuel filler lock 7 remove front kicking plate and rear kicking plate refer to ei 26 removal and installation 213
- Remove mounting bolts and remove fuel filler lid opener 10 remove fuel filler lid opener cable 213
- Bl 215 215
- Component parts and harness connector location hatchback 215
- Nats nissan anti theft system 215
- Bl 216 216
- Nats nissan anti theft system 216
- Note if customer reports a no start condition request all ignition key without intelligent key system or mechanical key with intelligent key system to be brought to the dealer to check for a nats malfunction 216
- Bcm without intelligent key system 217
- Bl 217 217
- Condition of security indicator normal 217
- During trouble diagnosis or when the following parts have been replaced and if ignition key or mechanical key is added registration is required all keys kept by the owner of the vehicle should be registered with ignition key or mechanical key 217
- Fore warns that the vehicle is equipped with nats nissan anti theft system 217
- If a malfunction has been detected security indicator will keep illuminates when ignition switch is in on position 217
- Ignition key without intelligent key system 217
- Intelligent key can be registered up to 5 keys including the standard key on request from the owner 217
- Intelligent key unit with intelligent key system 217
- Mechanical key with intelligent key system 217
- Nats nissan anti theft system 217
- Nats nissan anti theft system has the following functions 217
- Nats shows a higher anti theft performance at preventing engine to be initiates by an unregistered key registered key ignition key mechanical key intelligent key 217
- Nats trouble diagnoses system initialization and additional registration of other ignition key or mechani cal key ids must be carried out using consult ii hardware and consult ii nats software when nats initialization has been completed the id of the inserted ignition key or mechanical key is automati cally registered then if necessary additional registration of other ignition key or mechanical key ids can be carried out regarding the procedures of nats initialization and ignition key or mechanical key id reg istration refer to consult ii operation manual nats 217
- Only a key with key id registered in bcm without intelligent key system or intelligent key unit with intel ligent key system and ecm can start engine it has a higher protection against auto thefts that duplicates keys 217
- Operating description 217
- Security indicator 217
- System description 217
- Vehicles with intelligent key system security indicator blinks constantly when the mechanical key is removed from the ignition key cylinder note because security indicator is highly efficient the battery is barely affected 217
- Vehicles without intelligent key system security indicator will not blink while the ignition knob is in on or start state 217
- With intelligent key system 217
- Without intelligent key system 217
- Bl 218 218
- Ecm re communicating function 218
- Nats nissan anti theft system 218
- System composition 218
- Bl 219 219
- Nats nissan anti theft system 219
- Wiring diagram nats 219
- Without intelligent key system 219
- Bl 221 221
- Nats nissan anti theft system 221
- Bl 222 222
- Nats nissan anti theft system 222
- Terminals and reference value for intelligent key unit with intelligent key sys tem 222
- Terminals and reference value for steering lock unit with intelligent key sys tem 222
- Bl 223 223
- Nats nissan anti theft system 223
- Terminals and reference value for bcm without intelligent key system 223
- Bl 224 224
- Consult ii 224
- Consult ii diagnostic test mode function 224
- Consult ii inspection procedure 224
- Nats nissan anti theft system 224
- Bl 225 225
- Check result item chart for nats immu function 225
- Nats nissan anti theft system 225
- Bl 227 227
- Models without intelligent key system 227
- Nats nissan anti theft system 227
- Note perform diagnostic procedure 7 when p1610 is displayed by the self diag results of the engine refer to consult ii operation manual nats 227
- Trouble diagnosis symptom chart 227
- Bl 228 228
- Models with intelligent key system 228
- Nats nissan anti theft system 228
- Note perform diagnostic procedure 7 when p1610 is displayed by the self diag results of the engine refer to consult ii operation manual nats 228
- Security indicator inspection 228
- Bl 229 229
- Diagnostic procedure 1 229
- Diagnostic procedure 2 229
- Models without intelligent key system 229
- Nats nissan anti theft system 229
- Bl 230 230
- Nats nissan anti theft system 230
- Bl 231 231
- Models with intelligent key system 231
- Nats nissan anti theft system 231
- Bl 232 232
- Nats nissan anti theft system 232
- Bl 233 233
- Diagnostic procedure 3 233
- Diagnostic procedure 4 233
- Nats nissan anti theft system 233
- Bl 234 234
- Diagnostic procedure 5 234
- Diagnostic procedure 6 234
- Nats nissan anti theft system 234
- Bl 235 235
- Nats nissan anti theft system 235
- Bl 236 236
- Diagnostic procedure 7 236
- Nats nissan anti theft system 236
- Bl 237 237
- Caution before servicing srs turn ignition switch off disconnect both battery cables and wait at least 3 min utes 1 remove the spiral cable refer to srs 38 removal and installation 2 disconnect the nats antenna amp connect remove the screw and nats antenna amp 237
- Install in the reverse order of removal 237
- Installation 237
- Nats nissan anti theft system 237
- Removal 237
- Removal and installation nats antenna amp 237
Похожие устройства
- Nissan Note ENGINE MECHANICAL
- Nissan Note ENGINE CONTROL SYSTEM
- Nissan Note FUEL SYSTEM
- Nissan Note FRONT AXLE
- Nissan Note FRONT SUSPENSION
- Nissan Note GENERAL INFORMATION
- Nissan Note INSTRUMENT PANEL
- Nissan Note ENGINE LUBRICATION SYSTEM
- Nissan Note GLASSES, WINDOW SYSTEM _ MIRRORS
- Nissan Note LAN SYSTEM
- Nissan Note LIGHTING SYSTEM
- Daikin BRC1H81W7 Инструкция по эксплуатации
- Nissan Note REAR AXLE
- Nissan Note REAR SUSPENSION
- Nissan Note POWER STEERING SYSTEM
- Nissan Note SEAT
- Nissan Note STEERING CONTROL SYSTEM
- Nissan Note MANUAL TRANSAXLE
- Nissan Note MAINTENANCE
- Daikin BRC1H81W7 Руководство по применению для установщика
Скачать
Случайные обсуждения
