BL-72
POWER DOOR LOCK — SUPER LOCK —

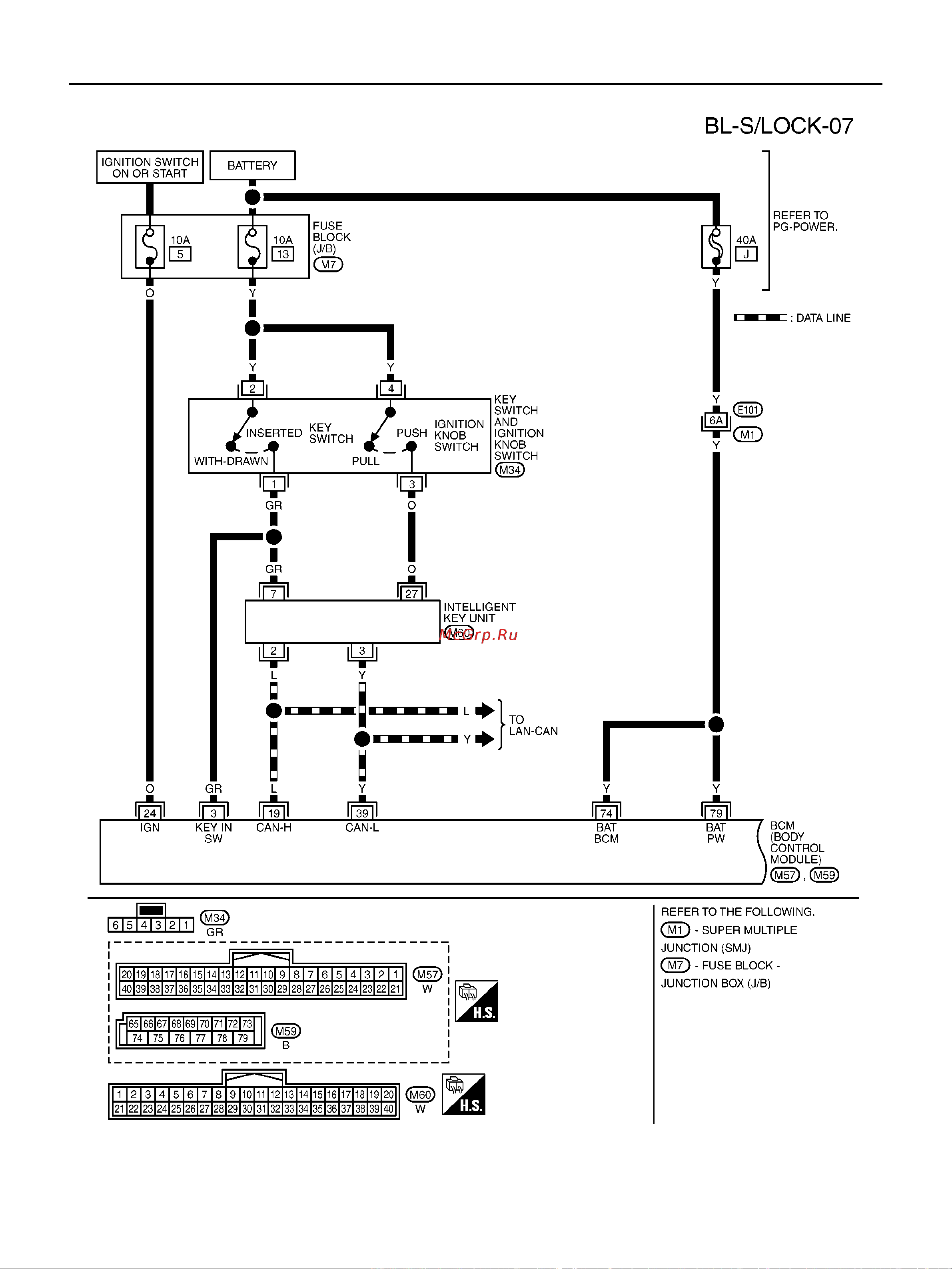

Wiring Diagram — S/LOCK — (With Intelligent Key System)
BIS000J4
MIWA0709E
