Nissan Note [10/334] Preparation
![Nissan Note [10/334] Preparation](/views2/1789811/page10/bga.png)
EM-10
[CR]
PREPARATION

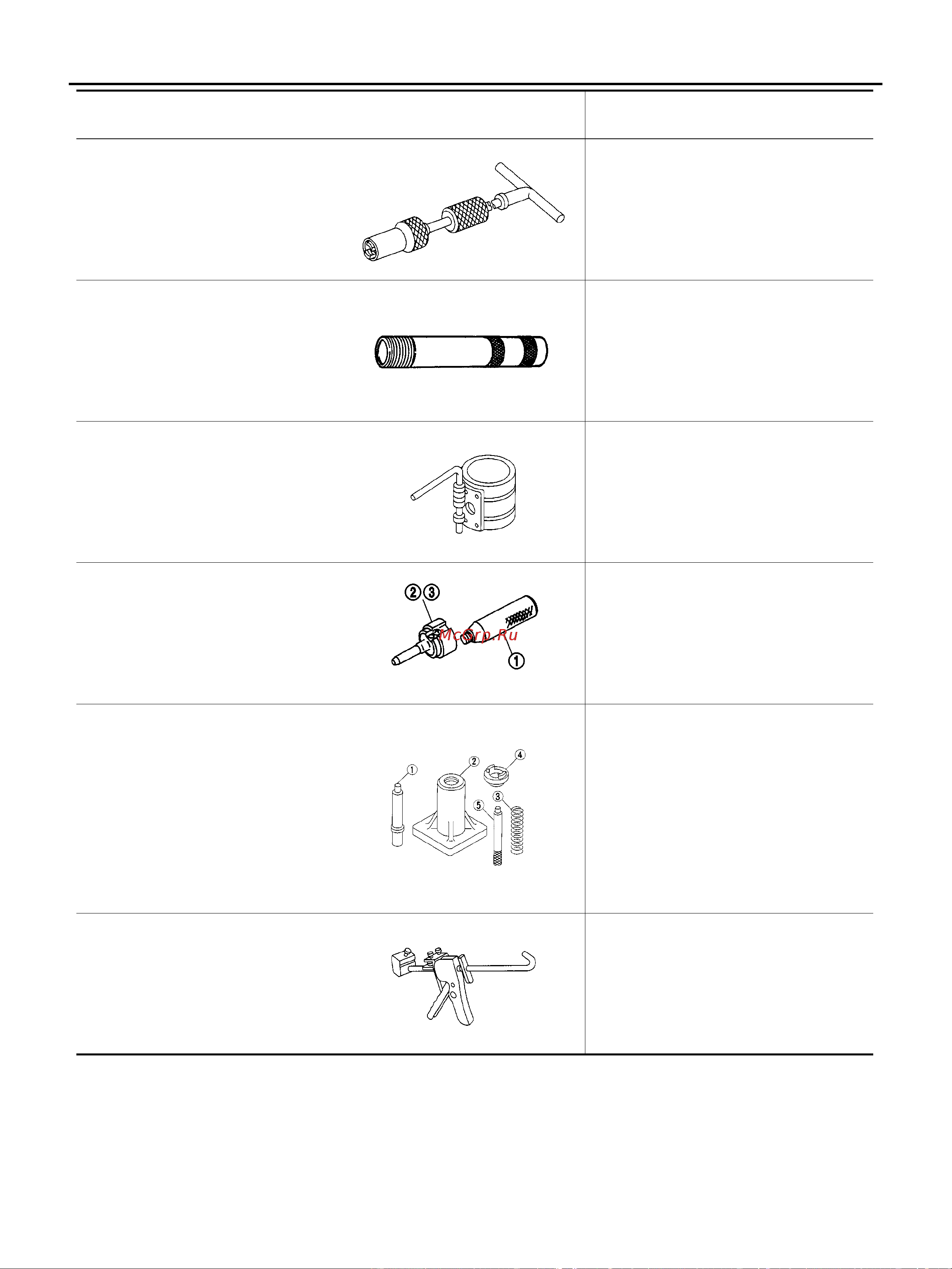

KV10107902
Valve oil seal puller
Removing valve oil seal
KV10115600
Valve oil seal drift
Installing valve oil seal
EM03470000
Piston ring compressor
piston assembly into cylinder bore
1. ST15243000
Valve seat drift
2. KV11103710
Adapter
3. KV11103720
Adapter
Installing valve seat
KV10107400
Piston pin Press stand
1. KV10107310
Center shaft
2. ST03140030
Stand
3. ST13040030
Spring
4. KV10107320
Cap
5. ST13040050
Drift
Disassembling and assembling piston with
connecting rod
WS39930000
Tube presser
Pressing the tube of liquid gasket
Tool number
Tool name
Description
NT011
ZZA0996D
NT044
PBIC1120E
NT013
NT052
