EM-196
[HR]
CYLINDER BLOCK

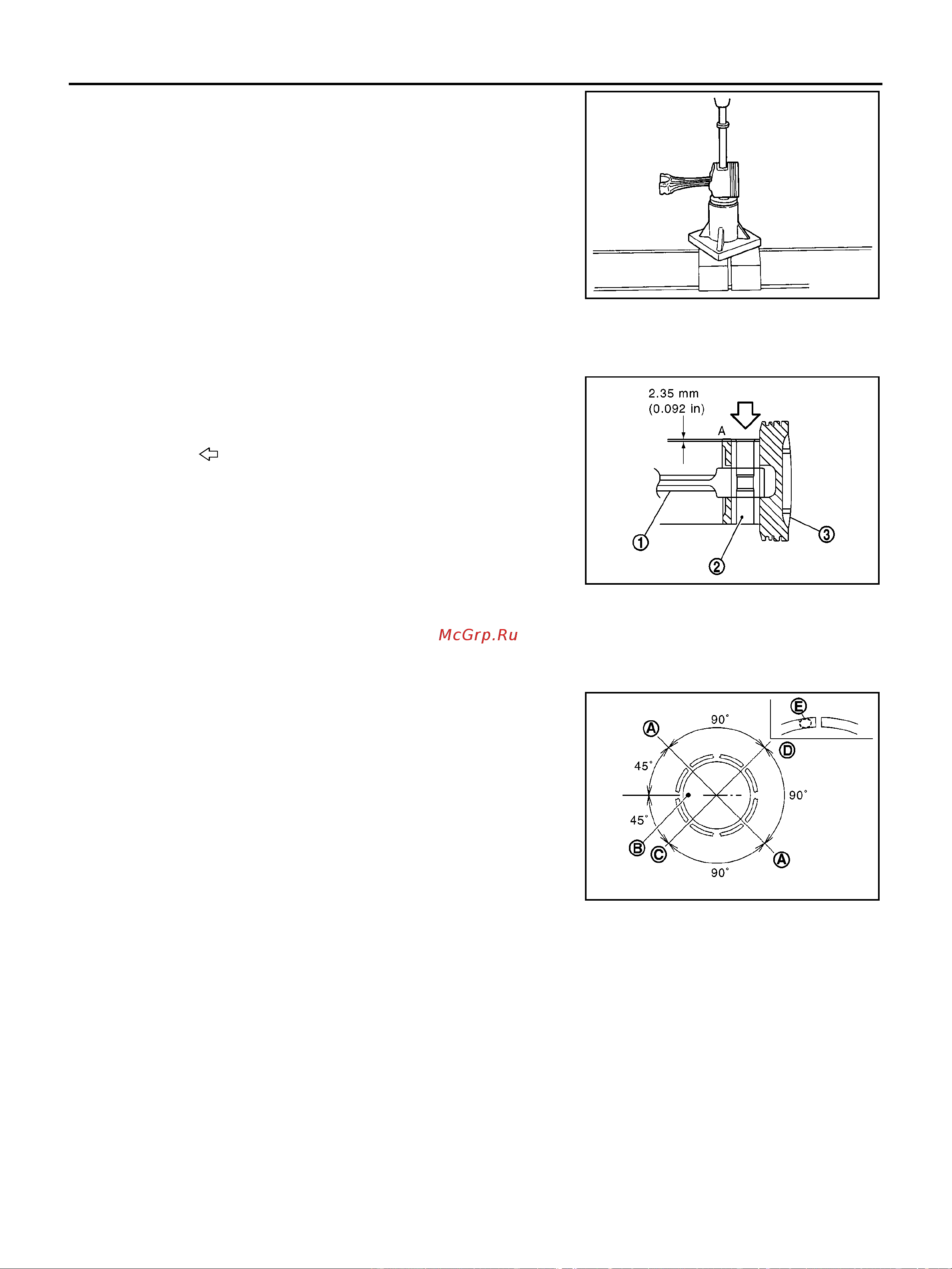

b. Press-fit the piston pin using the piston pin press stand (SST).
● For the details of SST, refer to the following.
CAUTION:
Press-fit the piston so as not to damage it.
NOTE:
The joint between the connecting rod and the piston pin is a press fit.
● Press-fit the piston pin (2) from piston surface“A” to the depth
of 2.35 mm (0.092 in).
● After finishing work, make sure that the piston (3) moves
freely.
9. Using a piston ring expander (commercial service tool), install piston rings.
CAUTION:
● Be careful not to damage piston.
● Be careful not to damage piston rings by expanding them excessively.
● Position each ring with the gap as shown in the figure refer-
ring to the piston front mark (B).
● Install second ring with the stamped mark (E) facing upward.
10. Install connecting rod bearings to connecting rod and connecting rod cap.
● When installing connecting rod bearings, apply new engine oil to the bearing surface (inside). Do not
apply engine oil to the back surface, but thoroughly clean it.
● Install the bearing in the center position.
NOTE:
There is no stopper tab.
● Make sure that the oil holes on connecting rod and connecting rod bearing are aligned.
Press stand : ST13030020
Spring : ST13030030
Drift : KV10109730
Center shaft : KV10114120
Center cap : KV10110310
KBIA3470J
1 : Connecting rod
:Press-fitdirection
PBIC3751E
A : Oil ring upper or lower rail gap (either of them)
C : Second ring and oil ring spacer gap
D :Topringgap
Stamped mark:
Second ring : R
PBIC3752E
