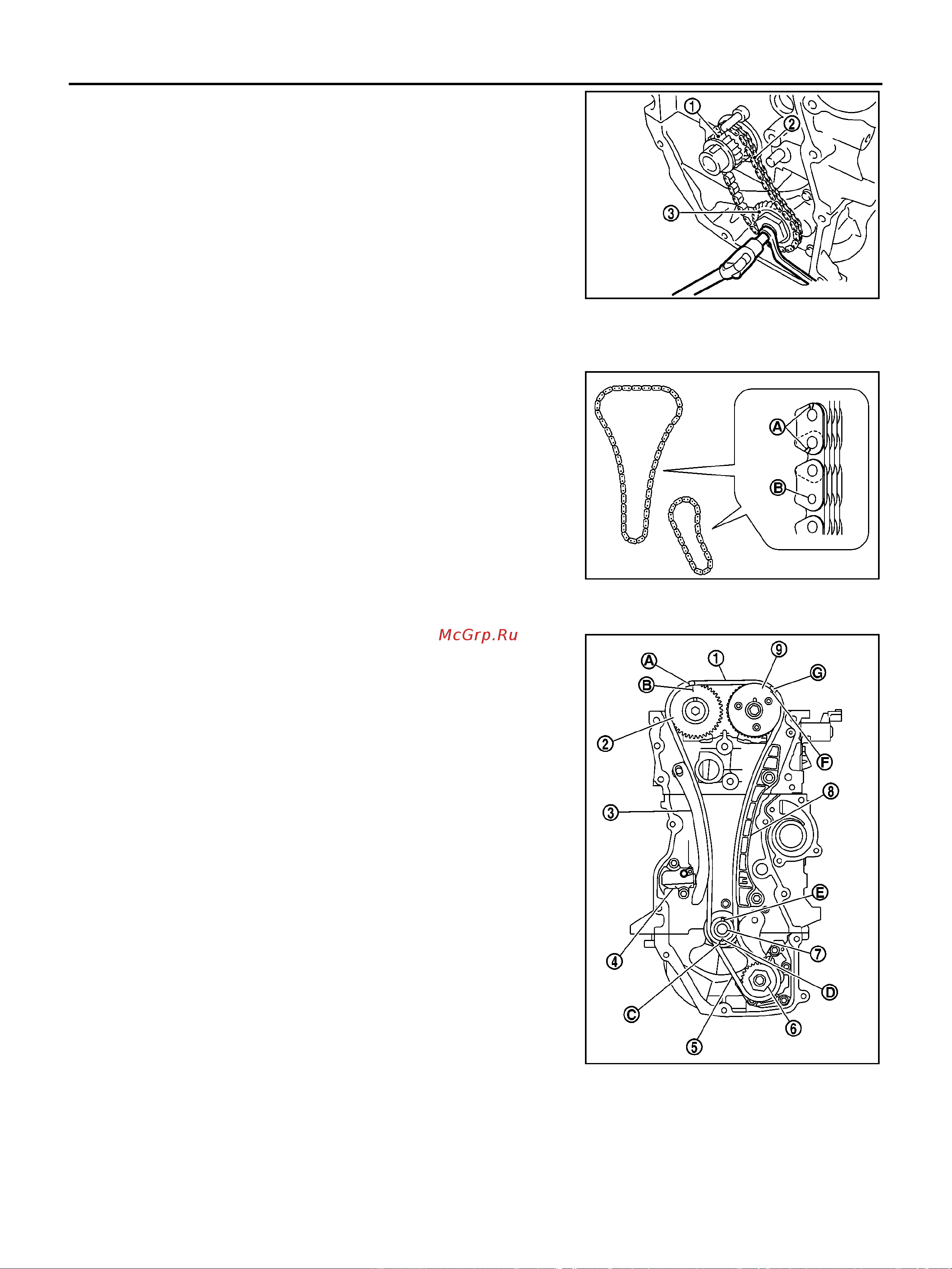

TIMING CHAIN
b. Hold the top of the oil pump shaft using the TORX socket (size:
E8), and then loosen the oil pump sprocket nuts and remove
them.
c. Remove the crankshaft sprocket (1), the oil pump drive chain
(2), and the oil pump sprocket (3) at the same time.
INSPECTION AFTER REMOVAL
Timing Chain
Check timing chain for cracks (A) and any excessive wear (B) at the
roller links of timing chain. Replace timing chain if necessary.
INSTALLATION
NOTE:
The figure shows the relationship between the matching mark on
each timing chain and that on the corresponding sprocket, with the
components installed.
1. Install the crankshaft sprocket and the oil pump drive related
parts with the following procedure:
PBIC3720E
PBIC3169J
1 : Timing chain
2 : Camshaft sprocket (EXH)
3 : Timing chain slack guide
4 : Chain tensioner
5 : Oil pump drive chain
6 : Oil pump sprocket
7 : Crankshaft sprocket
8 : Timing chain tension guide
9 : Camshaft sprocket (INT)
A : Yellow link
B : Matching mark (stamp)
C : Orange link
D : Matching mark (stamp)
E : Crankshaft key (point straight up)
F : Matching mark (peripheral stamp line)
G : Yellow link
PBIC3718E
