EM-110
[HR]
PREPARATION

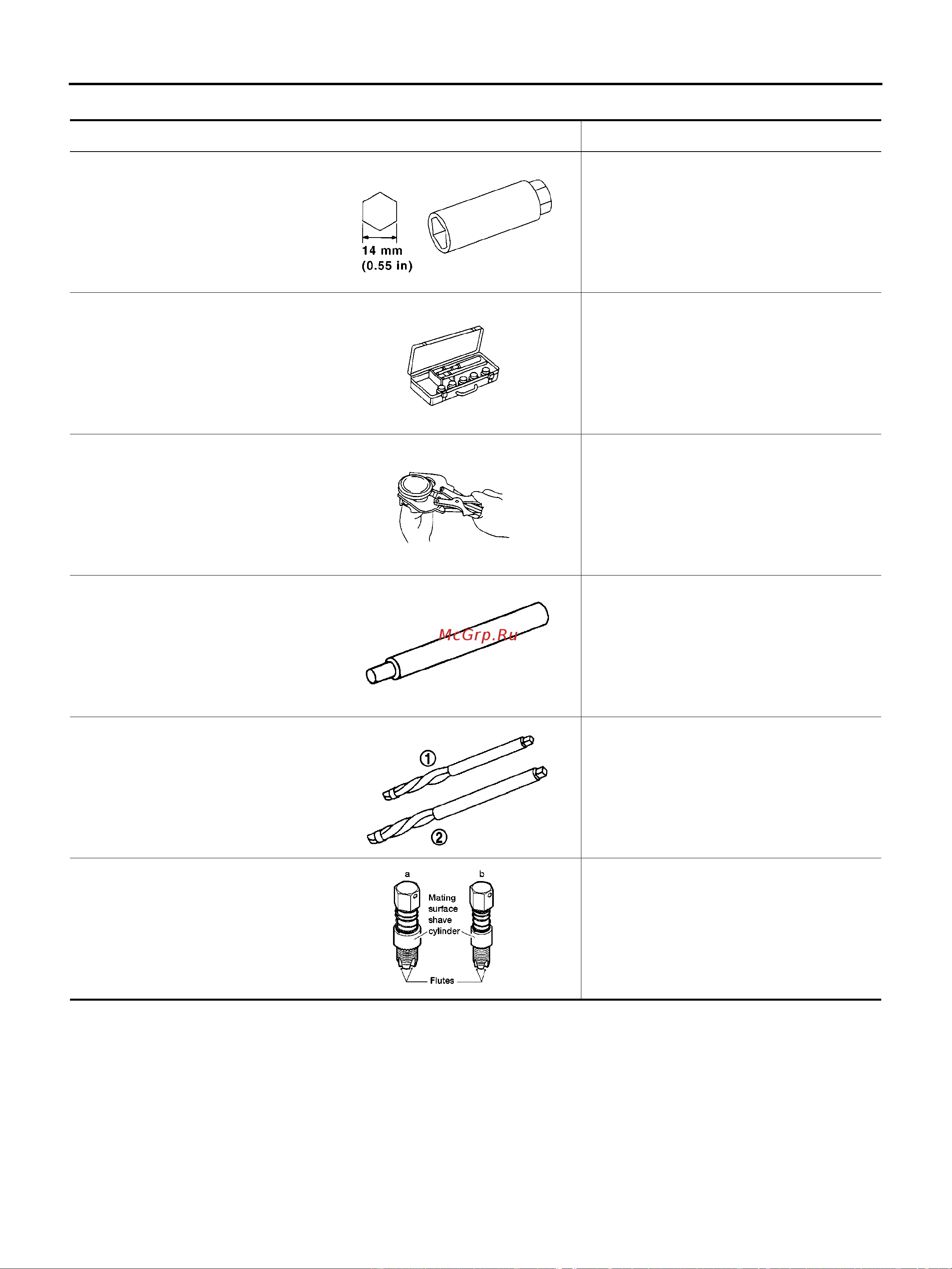

Commercial Service Tools
BBS002O4
Tool name Description
Spark plug wrench Removing and installing spark plug
Valve seat cutter set Finishing valve seat dimensions
Piston ring expander Removing and installing piston ring
Valve guide drift Removing and installing valve guide
Valve guide reamer 1: Reaming valve guide inner hole
2: Reaming hole for oversize valve guide
Oxygen sensor thread cleaner Reconditioning the exhaust system threads
before installing a new heated oxygen sensor
(Use with anti-seize lubricant shown below.)
a = 18 mm (0.71 in) dia. for zirconia heated
oxygen sensor
b = 12 mm (0.47 in) dia. for titania heated
oxygen sensor
PBIC3874E
S-NT048
S-NT030
PBIC4012E
PBIC4013E
AEM488
