Nissan Note [16/334] Drive belts
![Nissan Note [16/334] Drive belts](/views2/1789811/page16/bg10.png)
EM-16
[CR]
DRIVE BELTS
WATER PUMP BELT
1. Remove RH front fender protector.
2. Loosen lock nut (3).
3. Tighten lock nut (3) with fingers.
4. Adjust the belt tension by turning the adjuster bolt (4).
For the specified belt tension, refer to EM-14, "
Checking drive Belts" .
5. Tighten lock nut (3).
6. Turn the crankshaft pulley two times clockwise.
7. Check that the belt tension is within the standard. Refer to MA-27, "
Checking Drive Belts" .
Removal and Installation
BBS002N5
REMOVAL
● Fully loosen each belt while referring to EM-14, "Tension Adjustment" . Remove them one by one, starting
with the one in the front.
INSTALLATION
1. Install belts to the pulley in the reverse order of removal.
CAUTION:
● Make sure the belt is securely inside the groove on each pulley.
● Make sure there is no oil, grease, or coolant in pulley grooves.
2. Adjust tension of each belt.
CAUTION:
● When measuring belt tension immediately after the belt is installed, first set the tension to the
standard, rotate the crankshaft for more than two turns in order to eliminate variance in the belt
tension between pulleys, then measure and adjust tension to the standard.
● When measuring belt tension, hand tighten idler pulley lock nut to eliminate any looseness.
3. Tighten the lock nut of adjustment parts to the specified torque.
4. Make sure that tension of each belt is within the standard.

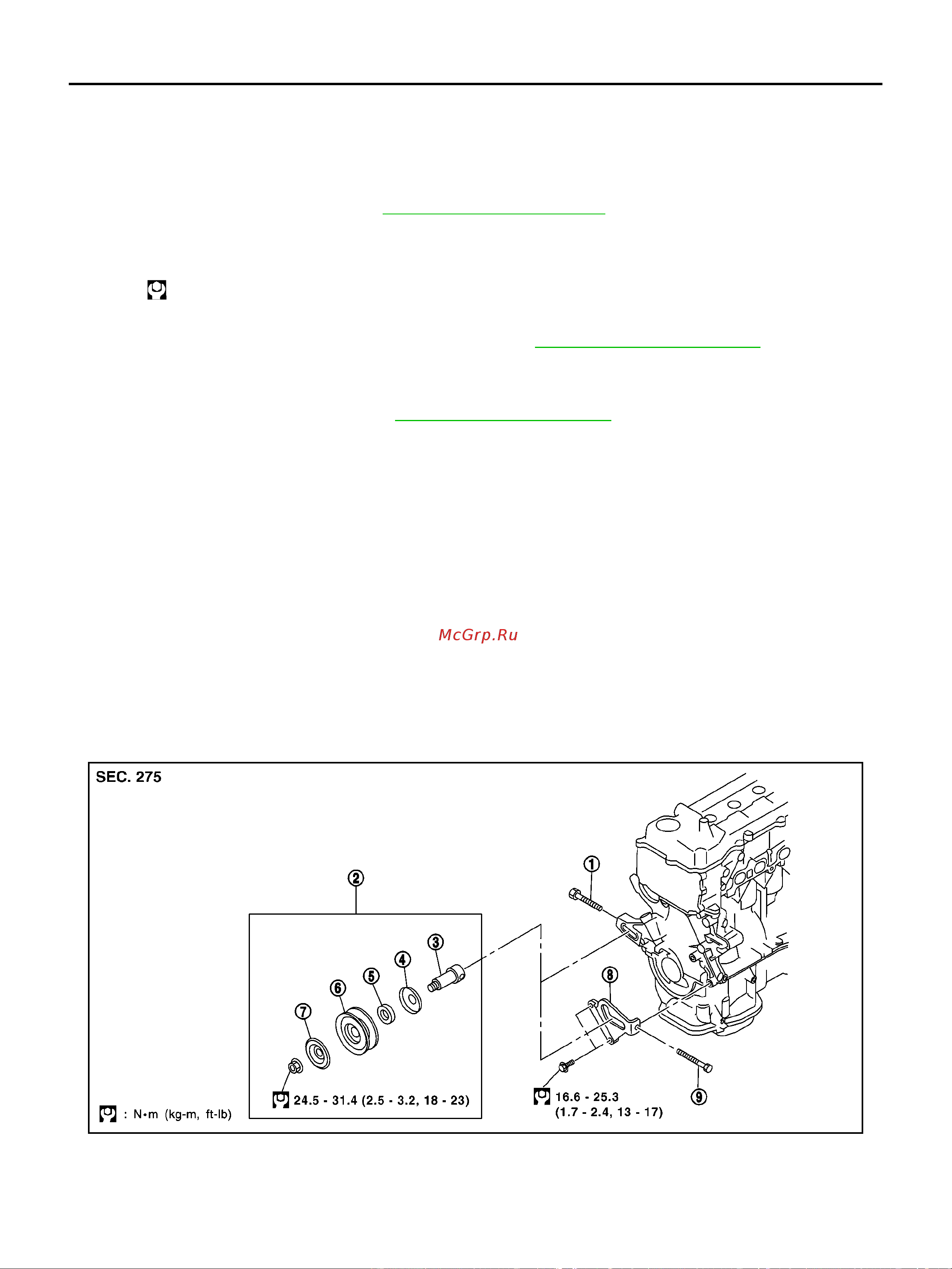

Removal and Installation of Drive Belt Idler Pulley
BBS002N6
Nut (3) :
: 24.5 - 31.4 N·m (2.5 - 3.2 kg-m, 18 - 23 ft-lb)
PBIC1417E
1. Adjuster bolt (for water pump belt) 2. Idler pulley assembly 3. Shaft
