EM-18
[CR]
AIR CLEANER AND AIR DUCT
AIR CLEANER AND AIR DUCT
PFP:16500
Removal and Installation
BBS002N7
REMOVAL
NOTE:
The steps 1 to 2 can be skipped, moving straight to the step 3 (separation of harnesses and hoses, etc. can-
not be skipped)
1. Remove the harness connector and then the manifold absolute pressure sensor.
CAUTION:
● Handle manifold absolute pressure sensor with care. Avoid impacts.
● Make sure no foreign matter is attached to the sensor (oils, chemicals, etc.)
2. Remove the harness connector and vacuum hose and then the EVAP canister purge volume control sole-
noid valve.
CAUTION:
Handle EVAP canister purge volume control solenoid valve with care. Avoid impacts.
3. Remove air duct.

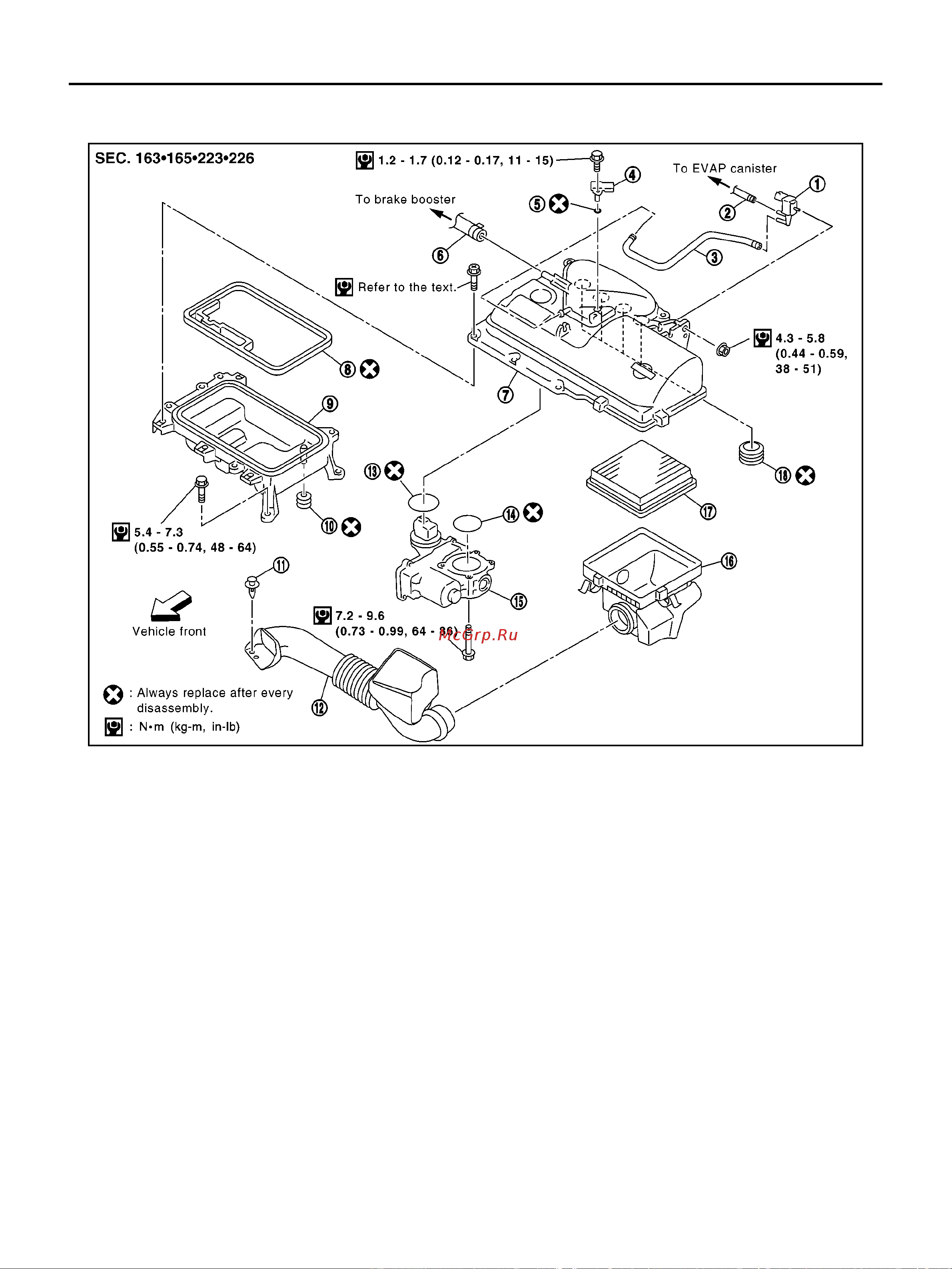

PBIC1418E
1.
EVAP canister purge volume control sole-
noid valve
2. Vacuum hose 3. Vacuum hose
4. Manifold absolute pressure sensor 5. O-ring 6. Vacuum hose
7. Air cleaner case (upper) 8. Gasket 9. Air cleaner case (lower)
10. Gasket 11. Clip 12. Air duct
13. Gasket 14. Gasket 15. Electric throttle control actuator
16. Air cleaner body 17. Air cleaner filter 18. Gasket
