CYLINDER BLOCK
EM-207
[HR]
C
D
E
F
G
H
I
J
K
L
M
A
EM

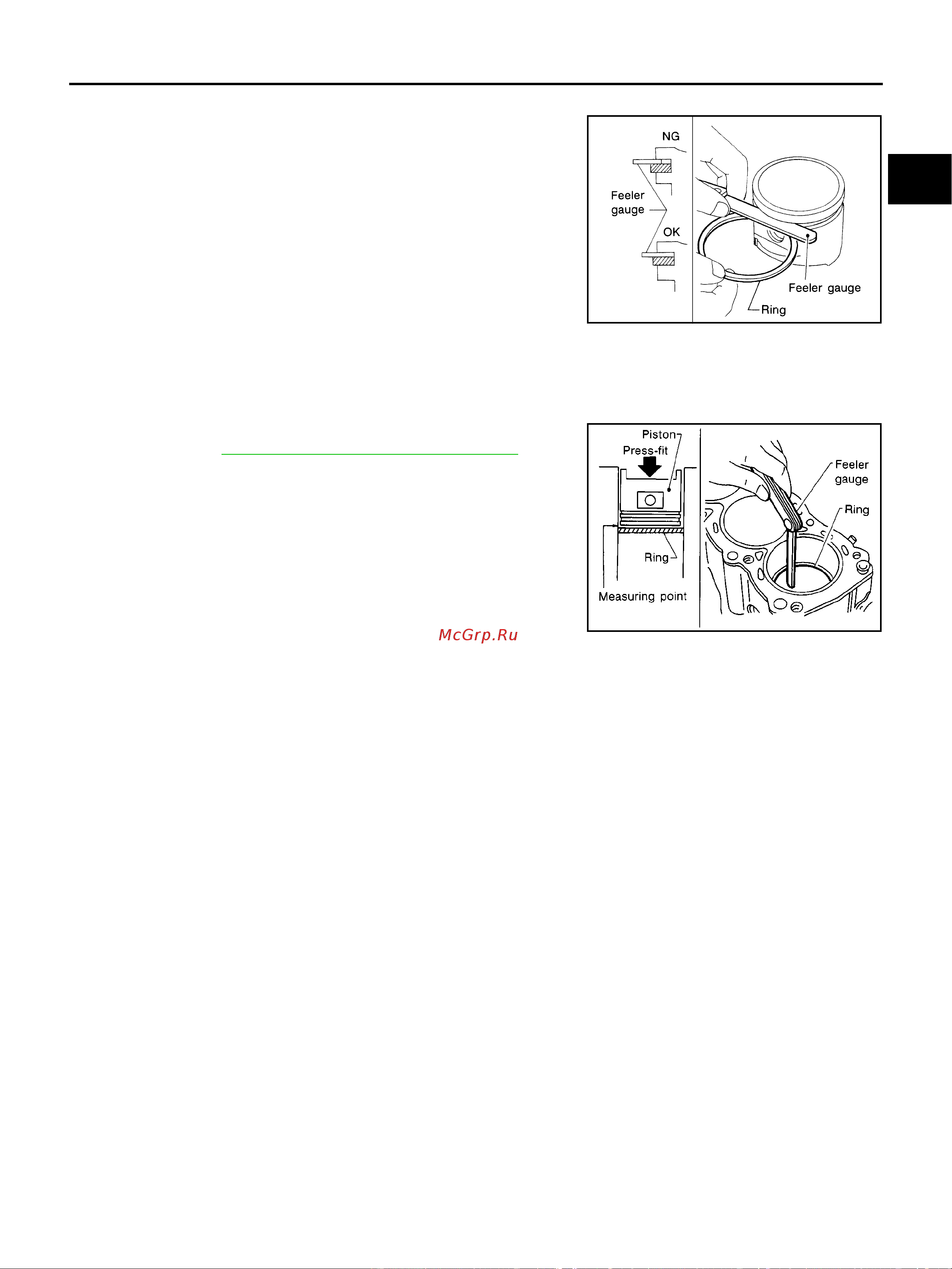

PISTON RING SIDE CLEARANCE
● Measure the side clearance of piston ring and piston ring groove
with a feeler gauge.
● If the measured value exceeds the limit, replace piston ring, and measure again. If it still exceeds the limit,
replacepistonalso.
PISTON RING END GAP
● Make sure that cylinder bore inner diameter is within the specifi-
cation. Refer to EM-210, "
Cylinder Bore Inner Diameter" .
● Lubricate with new engine oil to piston and piston ring, and then
insert piston ring until middle of cylinder with piston, and mea-
sure piston ring end gap with a feeler gauge.
● If the measured value exceeds the limit, replace piston ring.
Standard:
Top ring : 0.040 - 0.080 mm (0.0015 - 0.0031 in)
2nd ring : 0.030 - 0.070 mm (0.0012 - 0.0028 in)
Oil ring : 0.045 - 0.125 mm (0.0017 - 0.0049 in)
Limit:
Top ring : 0.11 mm (0.0043 in)
2nd ring : 0.10 mm (0.0039 in)
SEM024AA
Standard:
Top ring : 0.20 - 0.30 mm (0.0078 - 0.0118 in)
2nd ring : 0.35 - 0.50 mm (0.0137 - 0.0196 in)
Oil ring (rail ring) : 0.20 - 0.60 mm (0.0079 - 0.0236 in)
Limit:
Top ring : 0.50 mm (0.0196 in)
2nd ring : 0.66 mm (0.0259 in)
Oil ring (rail ring) : 0.92 mm (0.0362 in)
SEM822B
