TIMING CHAIN
EM-51
[CR]
C
D
E
F
G
H
I
J
K
L
M
A
EM
REMOVAL
Operation Description
1. Remove engine and transaxle assembly from the vehicle. Refer to EM-70, "Removal and Installation" .
2. Separate engine from transaxle. Refer to MT-7, "
REMOVAL AND INSTALLATION" .
3. Remove parts remaining in step 3 and proceed to step 5.
NOTE:
The reason for doing work with the engine by itself is stated below.
● It is necessary to remove the transaxle when removing and installing the oil pan (upper).
● For this reason, the entirety of the supporting engine mount disappears when removing and installing the
front cover.
1. Remove RH front wheel and RH front fender protector.
2. Drain the engine oil.
3. Remove the following parts.
● Drive belts and drive belt idler pulleys; Refer to EM-14, "DRIVE BELTS" .
● Rocker cover; Refer to EM-35, "ROCKER COVER" .
● Exhaust front tube; Refer to EX-3, "EXHAUST SYSTEM" .
● Starter motor; Refer to SC-51, "Removal and Installation (CR Engine Models)" .
● Oil pan (lower and upper) and oil strainer; Refer to EM-26, "OIL PAN AND OIL STRAINER" .
● RH headlamp; Refer to LT-32, "Removal and Installation" .
4. Using the following procedure, remove the RH engine mount stay and the RH engine mount brackets
(upper and lower).
a. The engine should be immobilized using any one of the following methods.
● Mount engine slingers and hook with hoist. Refer to EM-70, "Removal and Installation" .
● Support the transaxle bottom with a jack stand, etc.
CAUTION:
Make sure the transaxle is not scratched while the bottom is being supported.
b. Remove RH engine mount stay and RH engine mount bracket (upper and lower). Refer to EM-70,
"Removal and Installation" .
5. Remove alternator. Refer to SC-15, "
CHARGING SYSTEM" .
6. Remove cylinder head front cover. Refer to EM-38, "
CAMSHAFT" .

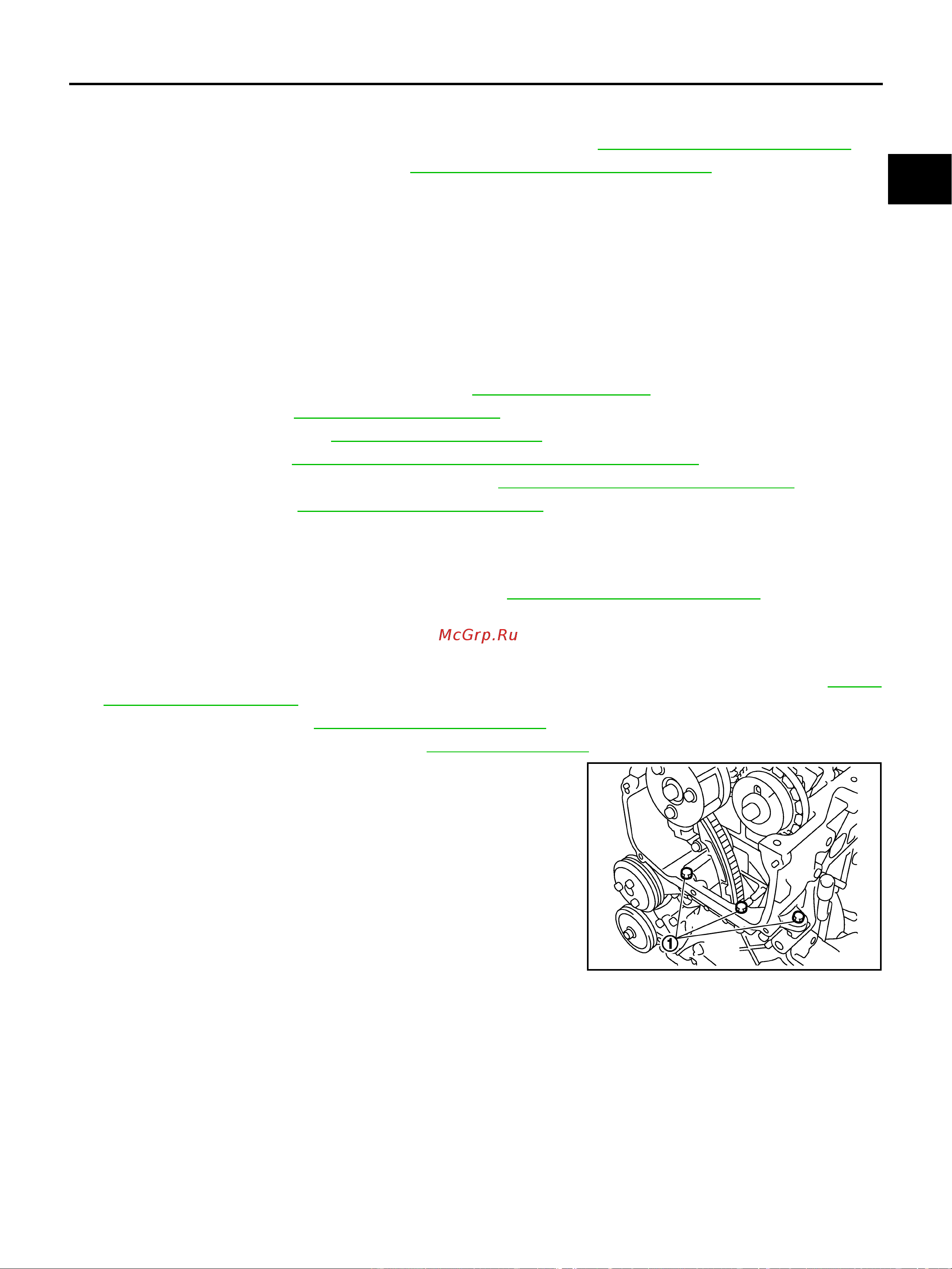

7. Remove the cylinder head auxiliary bolts (1).
8. Set No. 1 cylinder at TDC on its compression stroke.
a. Turn the crankshaft pulley clockwise.
b. When doing this, make sure both the intake and exhaust cam noses on cylinder No. 1 are facing out-
wards. (No. 1 cylinder at TDC of its compression stroke)
PBIC1335E
