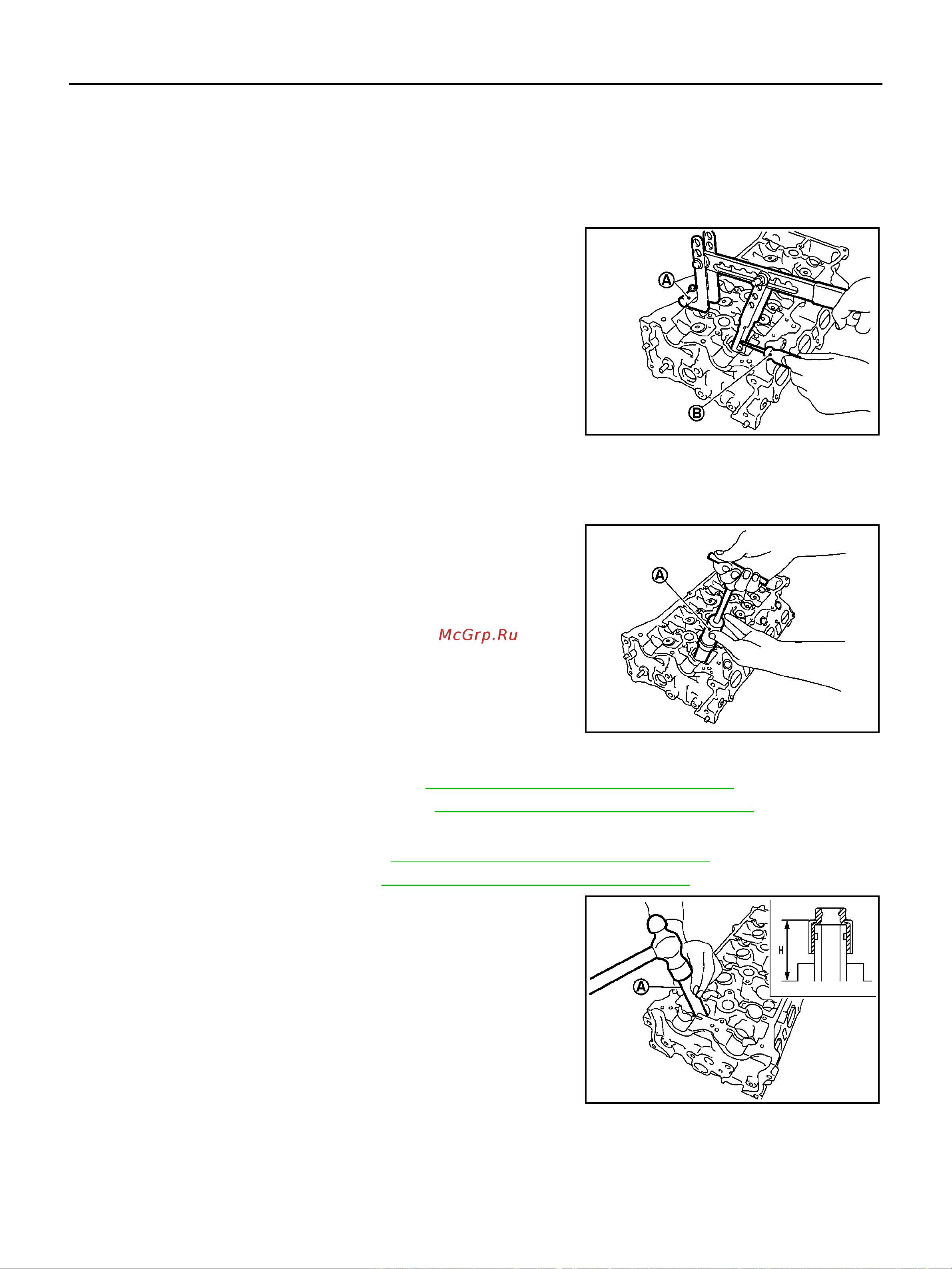

EM-178
[HR]
CYLINDER HEAD
Disassembly and Assembly
BBS002P4
DISASSEMBLY
1. Remove spark plug with a spark plug wrench (commercial service tool).
2. Remove valve lifter.
● Identify installation positions, and store them without mixing them up.
3. Remove valve collet.
● Compress valve spring with the valve spring compressor, the
attachment and the adapter (SST: KV10116200) (A). Remove
valve collet with a magnet hand (B).
CAUTION:
When working, be careful not to damage valve lifter holes.
4. Remove valve spring retainer and valve spring.
5. Push valve stem to combustion chamber side, and remove valve.
● Identify installation positions, and store them without mixing them up.
6. Remove valve oil seal with the valve oil seal puller (SST:
KV10107902) (A).
7. Remove valve spring seat.
8. When valve seat must be replaced, refer to EM-181, "
VALVE SEAT REPLACEMENT" to removal.
9. When valve guide must be replaced, refer to EM-180, "
VALVE GUIDE REPLACEMENT" to removal.
ASSEMBLY
1. Install valve guide if removed. Refer to EM-180, "VALVE GUIDE REPLACEMENT" .
2. Install valve seat if removed. Refer to EM-181, "
VALVE SEAT REPLACEMENT" .
3. Install valve oil seal.
● Install with the valve oil seal drift (SST: KV10115600) (A) to
match dimension in the figure.
4. Install valve spring seat.
5. Install valve.
● Install larger diameter to intake side.
6. Install valve spring.
PBIC3727E
PBIC3728E
Height “H” : 13.2 - 13.8 mm (0.519 - 0.543 in)
PBIC3211J
