Nissan Note [15/334] Drive belts
![Nissan Note [15/334] Drive belts](/views2/1789811/page15/bgf.png)
DRIVE BELTS
EM-15
[CR]
C
D
E
F
G
H
I
J
K
L
M
A
EM
CAUTION:
● When the belt is replaced with new one, adjust the belt tension to the value for “New belt”,
because new belt will not fully seat in the pulley groove.
● When tension of the belt being used exceeds “Limit”, adjust it to the value for “At adjustment”.
● When installing a belt, make sure that it is correctly engaged with the pulley groove.
● Do not allow oil or engine coolant to get on the belt.
● Do not twist or bend the belt strongly.

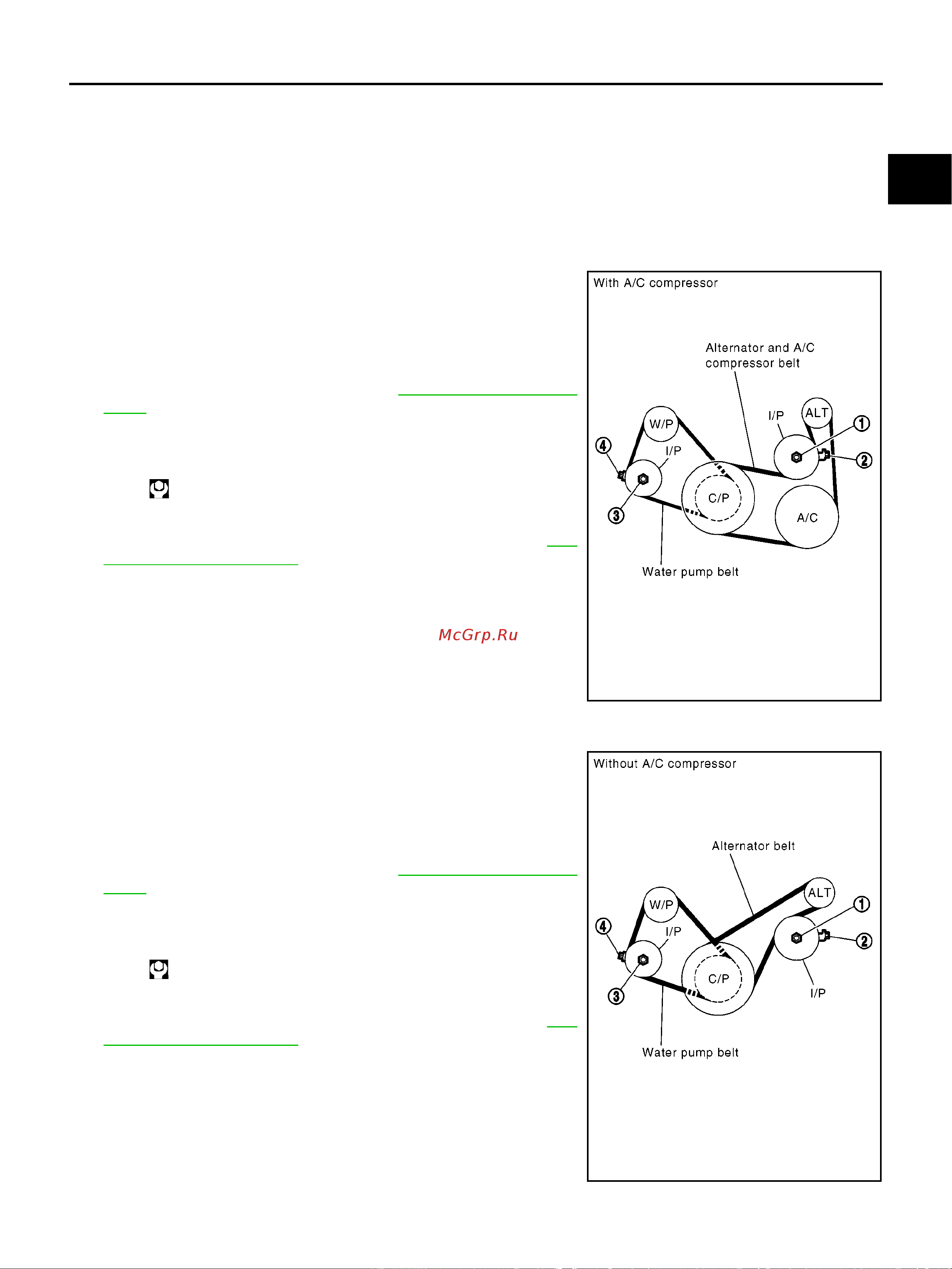

ALTERNATOR AND A/C COMPRESSOR BELT (WITH A/C MODELS)
1. Remove RH front fender protector.
2. Loosen lock nut (1).
3. Tighten lock nut (1) with fingers.
4. Loosen lock nut (1) half a turn counter-clockwise.
5. Adjust the belt tension by turning the adjuster bolt (2).
For the specified belt tension, refer to EM-14, "
Checking drive
Belts" .
6. Tighten lock nut (1).
7. Turn the crankshaft pulley two times clockwise.
8. Check that the belt tension is within the standard. Refer to MA-
27, "Checking Drive Belts" .
ALTERNATOR BELT (WITHOUT A/C MODELS)
1. Remove RH front fender protector.
2. Loosen lock nut (1).
3. Tighten lock nut (1) with fingers.
4. Loosen lock nut (1) half a turn counter-clockwise.
5. Adjust the belt tension by turning the adjuster bolt (2).
For the specified belt tension, refer to EM-14, "
Checking drive
Belts" .
6. Tighten lock nut (1).
7. Turn the crankshaft pulley two times clockwise.
8. Check that the belt tension is within the standard. Refer to MA-
27, "Checking Drive Belts" .
Nut (1) :
: 24.5 - 31.4 N·m (2.5 - 3.2 kg-m, 18 - 23 ft-lb)
PBIC1290E
Nut (1) :
: 24.5 - 31.4 N·m (2.5 - 3.2 kg-m, 18 - 23 ft-lb)
PBIC1416E
