CAMSHAFT
EM-43
[CR]
C
D
E
F
G
H
I
J
K
L
M
A
EM

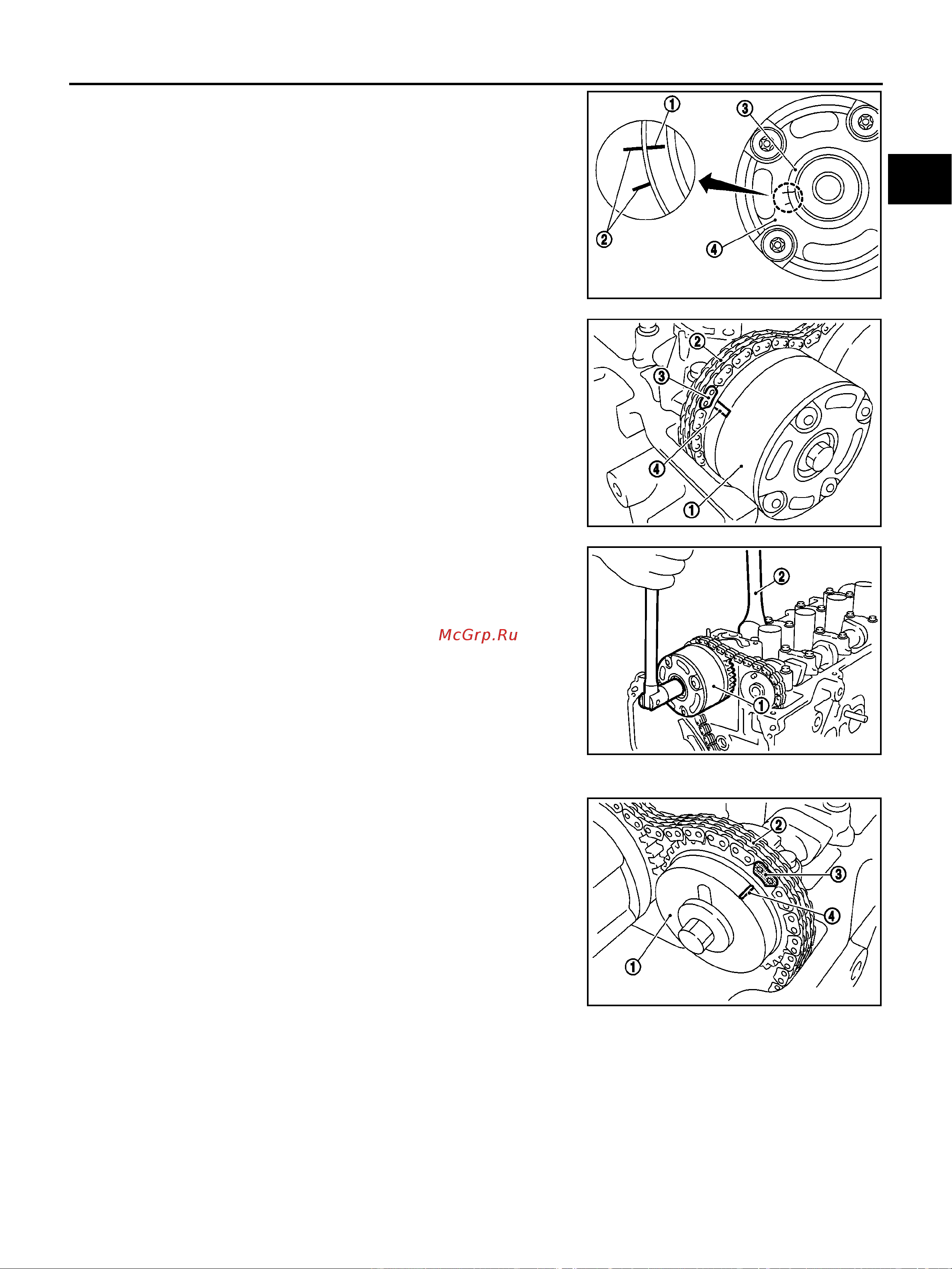

● Make sure the most advanced position checking intake valve
timing control advance mark (1) of vane (3) and alignment
mark (2) of sprocket (4) are located as shown in the figure.
a. Install timing chain (2) by aligning its mating mark (3) (marked
when timing chain is removed) with mark (4) on camshaft
sprocket (1).
● Install by aligning the dowel pin on the back of the camshaft
sprocket with dowel pin hole on the camshaft.
b. Keeping the camshaft hexagonal part still with the wrench (2),
tighten the mounting bolt for the intake camshaft sprocket (1).
c. Remove adhesive tape or equivalent from camshaft sprocket.
6. Install the exhaust camshaft sprocket (1) in the following proce-
dure:
a. Install timing chain (2) by aligning its mating mark (3) (marked
when timing chain is removed) with mark (4) on camshaft
sprocket (1).
● Install by aligning the dowel pin groove of the sprocket with
dowel pin on the camshaft.
b. Keeping the camshaft hexagonal part still with the wrench,
tighten the mounting bolt for the exhaust camshaft sprocket.
c. Make sure the markings for the intake and the exhaust camshaft
sprockets and the timing chain are all lined up.
PBIC1634E
PBIC1317E
PBIC1318E
PBIC1319E
