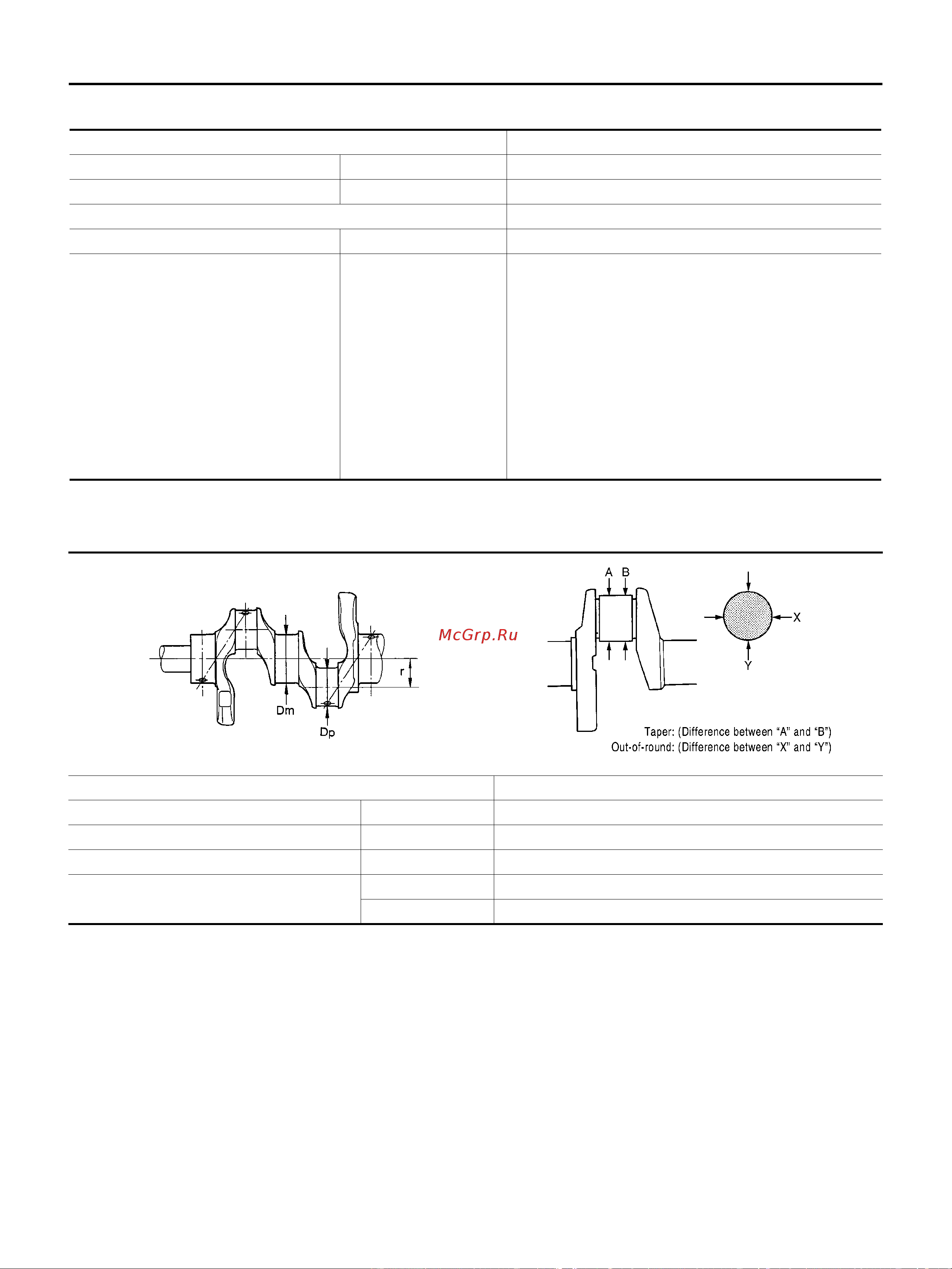

SERVICE DATA AND SPECIFICATIONS (SDS)
CONNECTING ROD
Unit: mm (in)
*: After installing in connecting rod
CRANKSHAFT
Unit: mm (in)
Center distance 129.84 - 129.94 (5.1118 - 5.1157)
Bend [per 100 (3.94)] Limit 0.15 (0.0059)
Torsion [per 100 (3.94)] Limit 0.30 (0.0118)
Connecting rod bushing inner diameter* 18.958 - 18.978 (0.7463 - 0.7471)
Side clearance Standard 0.200 - 0.352 (0.0079 - 0.0138)
Connecting rod big end diameter
Grade No. A
Grade No. B
Grade No. C
Grade No. D
Grade No. E
Grade No. F
Grade No. G
Grade No. H
Grade No. J
Grade No. K
Grade No. L
Grade No. M
Grade No. N
43.000 - 43.001 (1.6929 - 1.6929)
43.001 - 43.002 (1.6929 - 1.6930)
43.002 - 43.003 (1.6930 - 1.6930)
43.003 - 43.004 (1 6930 - 1.6931)
43.004 - 43.005 (1.6931 - 1.6931)
43.005 - 43.006 (1.6931 - 1.6931)
43.006 - 43.007 (1.6931 - 1.6932)
43.007 - 43.008 (1.6932 - 1.6932)
43.008 - 43.009 (1.6932 - 1.6933)
43.009 - 43.010 (1.6933 - 1.6933)
43.010 - 43.011 (1.6933 - 1.6933)
43.011 - 43.012 (1.6933 - 1.6934)
43.012 - 43.013 (1.6934 - 1.6934)
Center distance “r” 41.68 - 41.76 (1.6409 - 1.6440)
Out-of-round (Difference between “X” and “Y”) Limit 0.003 (0.0001)
Taper (Difference between “A” and “B”) Limit 0.004 (0.0001)
Runout [TIR*] Limit 0.10 (0.0039)
Crankshaft end play
Standard 0.098 - 0.260 (0.0038 - 0.0102)
Limit 0.35 (0.0137)
SEM645
SBIA0535E
