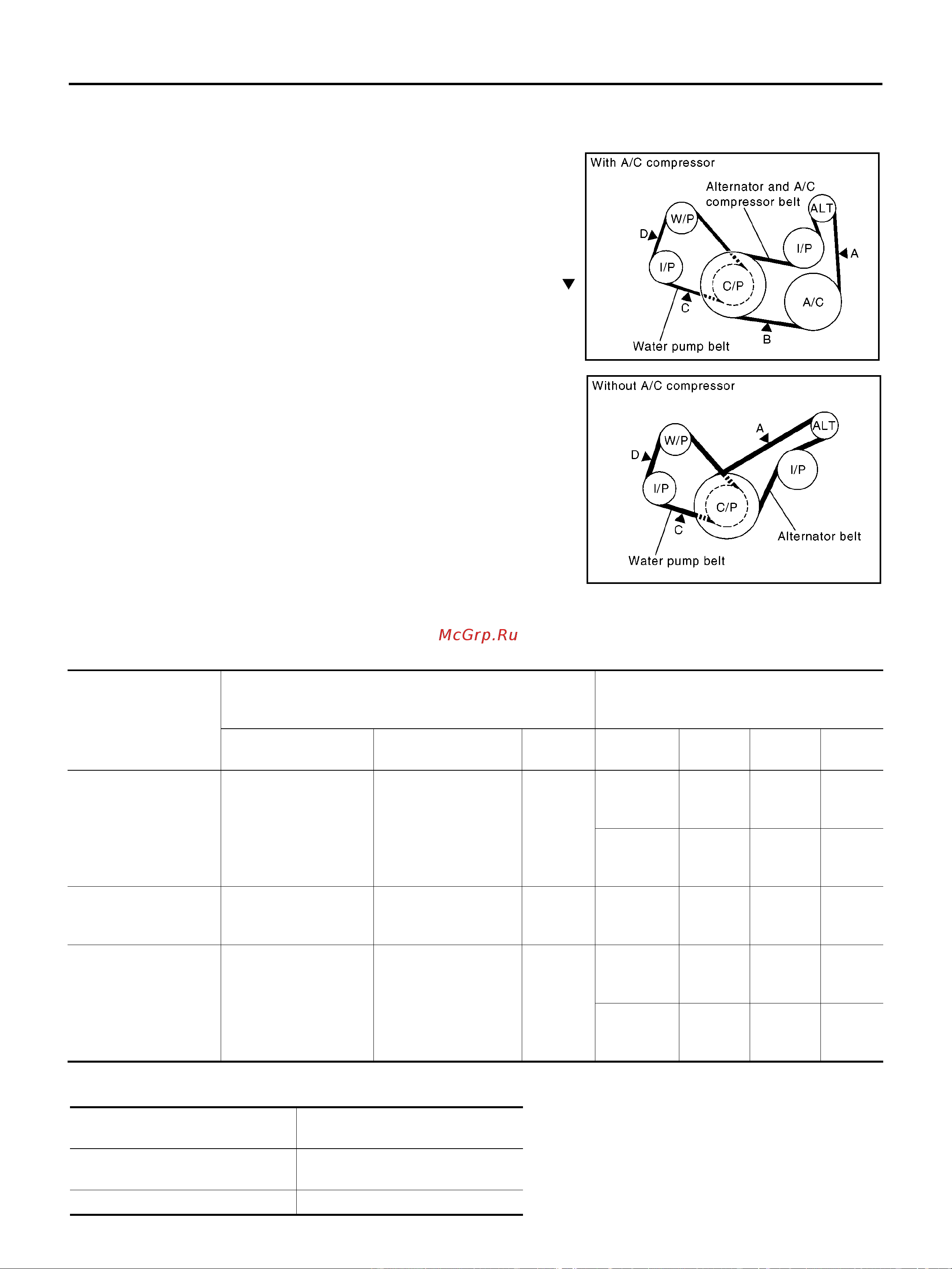

EM-14
[CR]
DRIVE BELTS
DRIVE BELTS
PFP:02117
Checking drive Belts
BBS002N3
● Inspection should be done only when engine is cold or over 30
minutes after the engine is stopped.
● Turn the crankshaft pulley two times clockwise, and make sure
tension on all pulleys is equal before doing the test.
● Visually check the belts for wear, damage, and cracks on inside
and edges.
● When measuring deflection, apply 98.1 N (10 kg, 22lb) at the
marked point.
CAUTION:
When measuring belt tension immediately after the belt is installed, first set the tension to the stan-
dard, rotate the crankshaft for more than two turns in order to eliminate variance in the belt tension
between pulleys, then measure and adjust tension to the standard again.
Tension Adjustment
BBS002N4
PBIC1414E
PBIC1415E
Location
Tension [N (kg, lb)]
Deflection [mm (in)]
[When pressed by force of 98.1N (10 kg,
22lb)]
New At adjustment Limit
Measuring
point
New belt
At adjust-
ment
Limit
Alternator and
A/C compressor belt
603 - 691 (61.5 - 70.5,
135.6 - 155.3)
495 - 583 (50.5 - 59.5,
111.3 - 131.1)
196 (20,
44.1)
A
6.6 - 7.8
(0.260 -
0.307)
7.3 - 8.5
(0.287 -
0.335)
13.8
(0.543)
B
5.6 - 6.6
(0.220 -
0.260)
7.1 - 8.3
(0.280 -
0.327)
11.9
(0.469)
Alternator belt
603 - 691 (61.5 - 70.5,
135.6 - 155.3)
495 - 583 (50.5 - 59.5,
111.3 - 131.1)
196 (20,
44.1)
A
3.1 - 4.1
(0.122 -
0.161)
9.8 -10.6
(0.386 -
0.417)
13.8
(0.543)
Water pump belt
446 - 534 (45.5 - 54.5,
100.3 - 120.0)
348 - 436 (35.5 - 44.5,
78.2 - 98.0)
137 (14,
30.9)
C
6.7 - 7.3
(0.264 -
0.287)
7.6 - 8.6
(0.299 -
0.339)
12.4
(0.448)
D
4.7 - 5.6
(0.185 -
0.220)
7.0 - 7.7
(0.276 -
0.303)
8.6
(0.339)
Location
Location of adjuster and tightening
method
Alternator and A/C compressor
drive belt
Adjusting bolt on idler pulley
Water pump belt Adjusting bolt on idler pulley
