EM-270
[K9K]

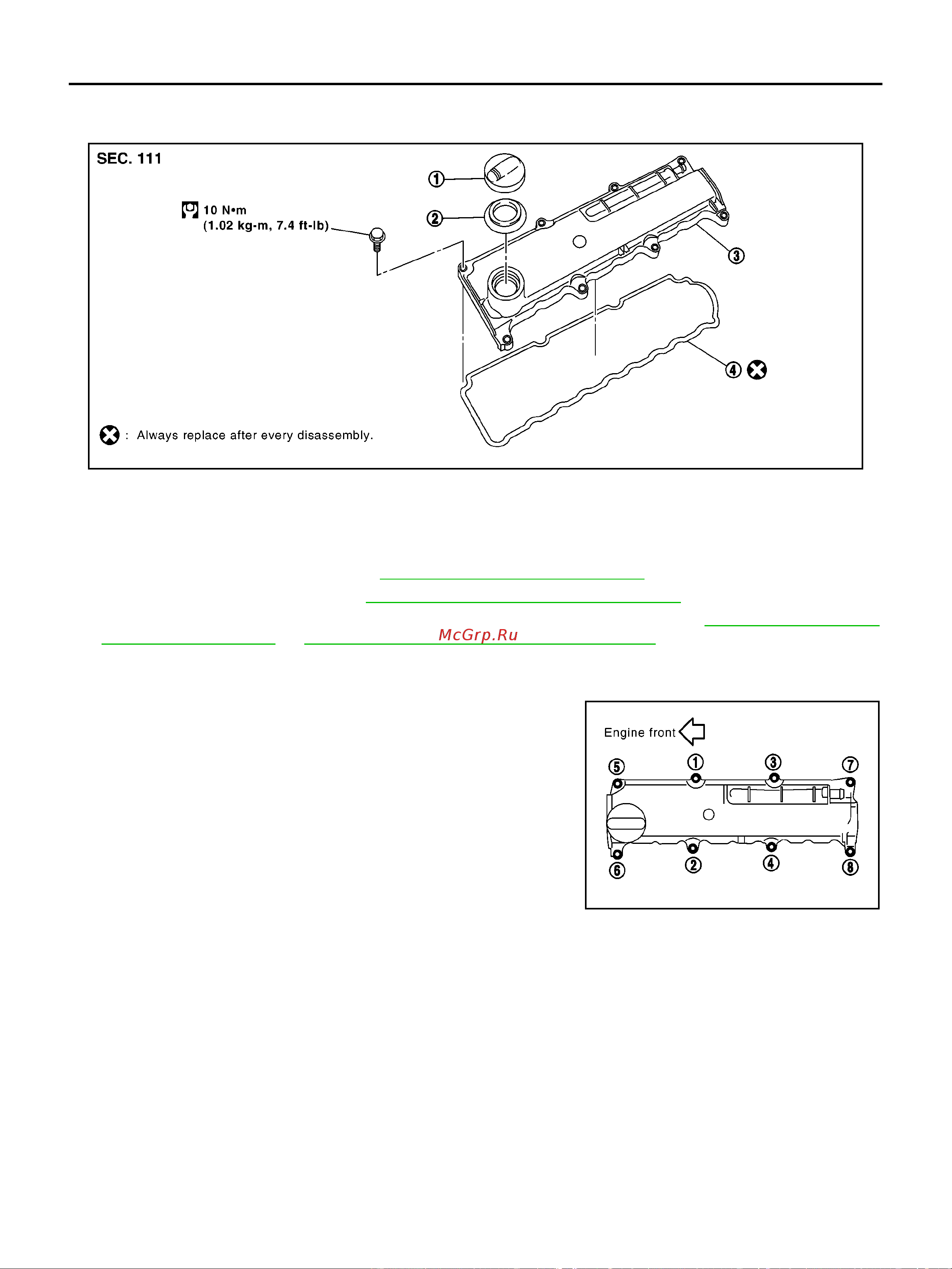

ROCKER COVER
ROCKER COVER
PFP:13264
Removal and Installation
BBS002QG
REMOVAL
1. Remove engine room cover. Refer to EM-241, "ENGINE ROOM COVER" .
2. Remove air duct (suction). Refer to EM-245, "
AIR CLEANER AND AIR DUCT" .
3. Remove inlet pipe assembly and air inlet hose, and inlet pipe bracket. Refer to EM-247, "
Removal and
Installation (For 50kW)" or EM-249, "Removal and Installation (For 65kW)" .
4. Remove rear engine slinger.
5. Unclip timing belt upper cover.
6. Remove rocker cover.
● Loosen holding bolts in the reverse order as shown in the fig-
ure and remove.
MLIA0009E
1. Oil filler cap 2. Oil catcher 3. Rocker cover
4. Gasket
MBIB0580E
