EM-332
[K9K]
BASIC INSPECTION

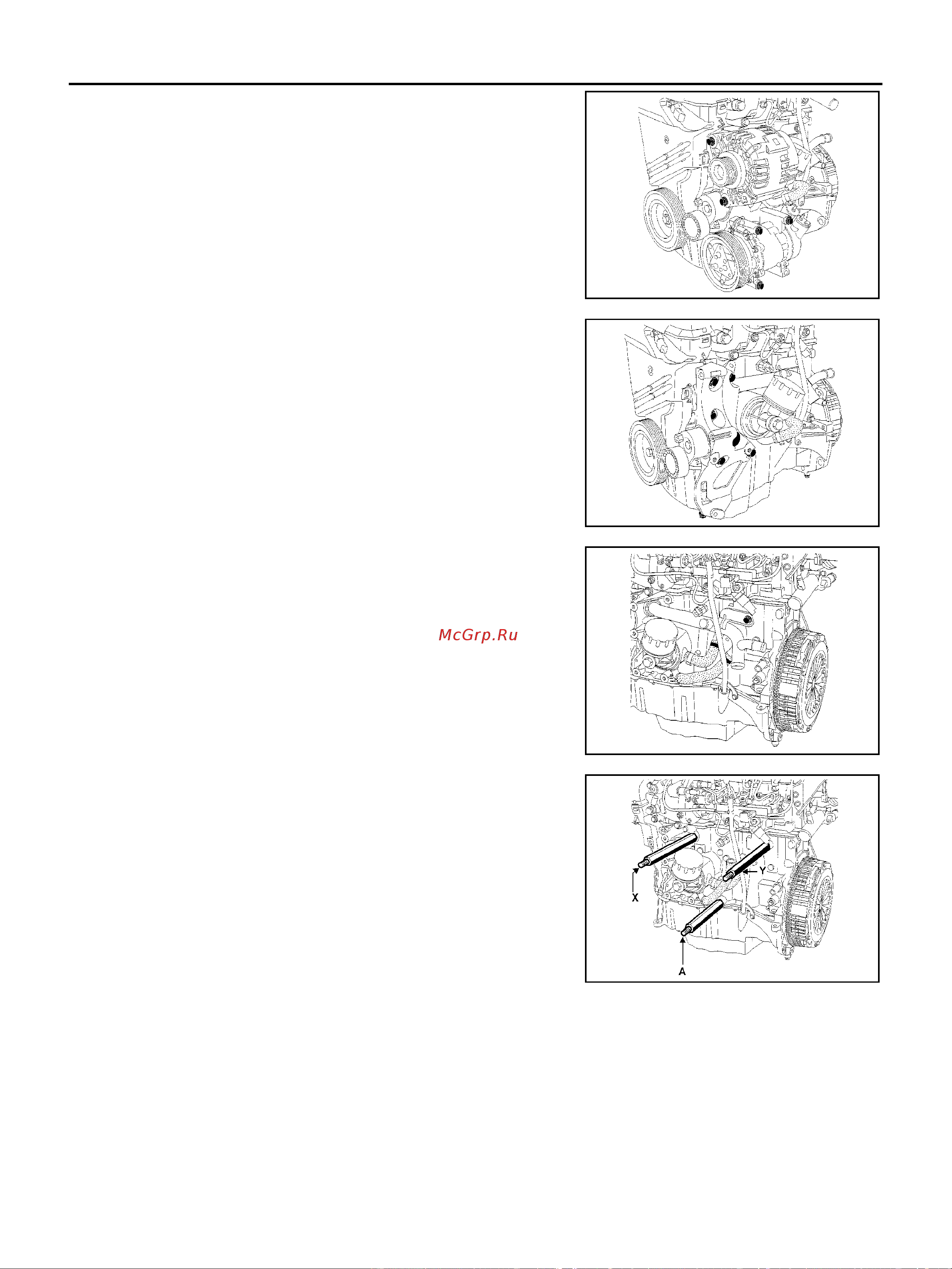

2. Remove the alternator.
3. Remove the air conditioning compressor or idler pulley.
4. Remove the multifunction support.
5. Remove the coolant inlet pipe on the water pump.
6. Place the rods (A ), (X ), (Y ) or Tool KV113B0100 (Mot. 1378)
on the cylinder block so that they fit into the holes (20, 32, 33 )
on the plate of Tool KV113B0070 (Mot. 792-03).
Parts To Be Replaced After Removal
BBS002R3
● All gaskets
● Flywheel bolts
● Crankshaft bearing bolts
● Camshaft pulley bolt
● Crankshaft pulley bolts
● Bigendcapbolts
● Injector holder copper washers
● Fuel injection tubes
MBIB0354E
MBIB0355E
MBIB0356E
MBIB0357E
