Nissan Note [72/334] Engine assembly

EM-72

[CR]

ENGINE ASSEMBLY

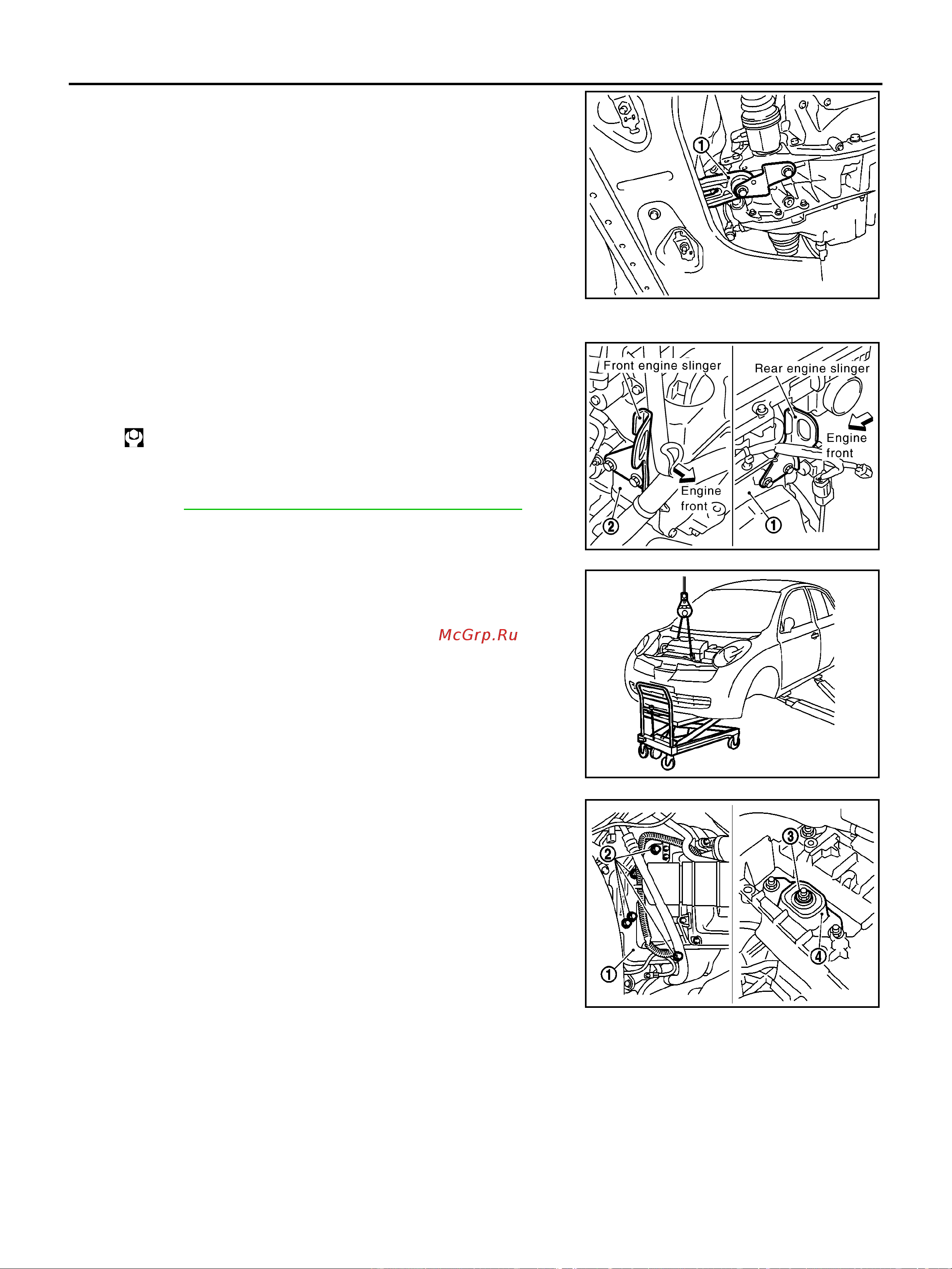

18. Remove rear torque rod (1).

Removal

19. Install engine slinger to cylinder head front left side (1) and rear

right side (2) and support the engine position with a hoist.

NOTE:

Front side and rear side engine slinger are common parts.

● For front side, remove harness bracket under fuel tube pro-

tector and mount by using harness bracket mounting hole.

Refer to EM-32, "

FUEL INJECTOR AND FUEL TUBE" .

20. Lift to a height sufficient to allow easy work, support the bottom

of the engine with either a manual lift table caddy (commercial

service tool) or two suitable jacks, and adjust the tension of the

hoist.

CAUTION:

● Put a piece of wood or something similar as the support-

ing surface, secure a completely stable condition.

● Make sure the hanging chain or hanging hook does not

come into contact with the A/C piping or the vehicle (cowl

top).Alsomakesuretheydonotgetinthewaybymov-

ing while the work is being done.

21. Remove the RH engine mount bracket (upper) (1) mounting

bolts (2).

22. Remove the LH engine mount bolt-securing nut (3).

23. Carefully lower the manual lift table caddy or suitable jack, (or carefully raise the lift), and remove the

engine and transaxle assembly from the vehicle.

● If you are going to lower the engine side, do this in tandem with the hoist.

CAUTION:

● This should be done making sure it does not come in contact with the vehicle.

● Check that all connection points have been disconnected.

● Make sure the hanging chain or hanging hook does not come into contact with the A/C piping or

the vehicle (cowl top).

MBIB1377E

: 16.6 - 23.5 N·m (1.7 - 2.3 kg-m, 13 - 17 in)

PBIC1358E

PBIC1454E

MBIB9050E
