BASIC INSPECTION
EM-327
[K9K]
C
D
E
F
G
H
I
J
K
L
M
A
EM

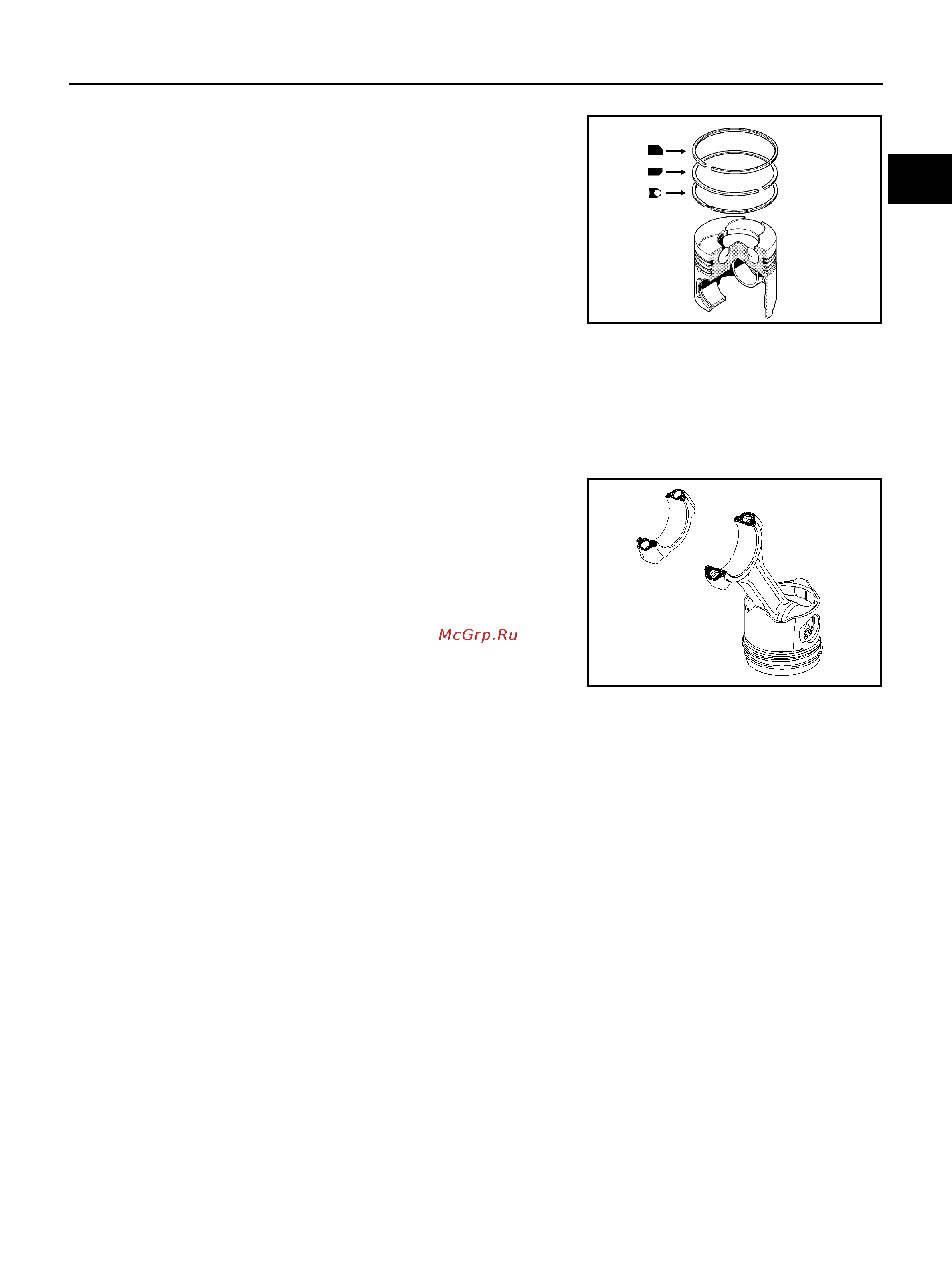

PISTON RING
The piston rings are supplied ready adjusted.
PISTON RING END GAP
Connecting Rod
BBS002QY
The connecting rod is of the detachable cap type.
WARNING:
● The bolts must be coated with engine oil under the heads
and on the threads when the connecting rods are installed
in the engine.
● The big end caps are positioned on the connecting rod by
irregularities on the parting line.
● The occurrence of impacts or a foreign body between the
body - cap mating surfaces will lead to rapid rupture of the
connecting rod.
NOTE:
The connecting rod small end rings cannot be replaced.
Thickness:
Top ring : 1.97 - 1.99 mm (0.0776 - 0.0783 in)
2nd ring : 1.97 - 1.99 mm (0.0776 - 0.0783 in)
Oil ring : 2.47 - 2.49 mm (0.0972 - 0.0980 in)
MBIB0339E
Top ring : 0.20 - 0.35 mm (0.0079 - 0.0138 in)
2nd ring : 0.70 - 0.90 mm (0.0276 - 0.0354 in)
Oil ring : 0.25 - 0.50 mm (0.0098 - 0.0197 in)
Lateral big end play : 0.205 - 0.467 mm (0.0081 -
0.0184 in)
Diametrical big end play : 0.035 - 0.045 mm (0.0014 -
0.0018 in)
Center distance between
the big end and small end
: 133.75 mm (5.2657 in)
Diameter of the big end : 47.610 - 47.628 mm (1.8744
-1.8751in)
Diameter of the small end
(without ring) : 27.24 - 27.26 mm (1.0724 -
1.0732 in)
(with ring) : 25.013 - 25.025 mm (0.9848
-0.9852in)
MBIB0340E
