PREPARATION
EM-11
[CR]
C
D
E
F
G
H
I
J
K
L
M
A
EM

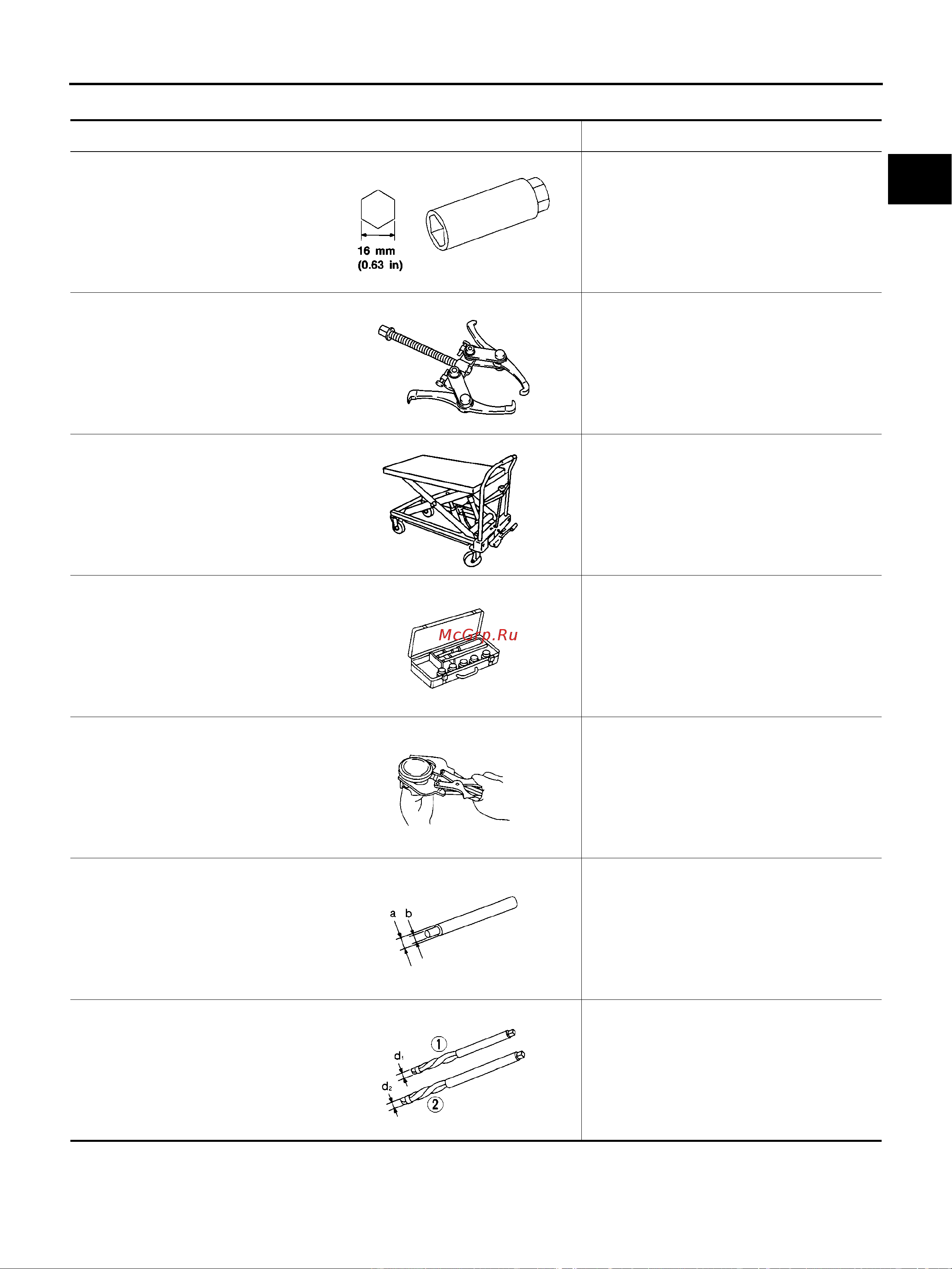

Commercial Service Tools
BBS002N0
Tool name Description
Spark plug wrench Removing and installing spark plug
Crankshaft pulley puller Removing crankshaft pulley
Manual lift table caddy Removing and installing engine
Valve seat cutter set Finishing valve seat dimensions
Piston ring expander Removing and installing piston ring
Valve guide drift Removing and installing valve guide
Intake & Exhaust:
a: 9.5 mm (0.374 in) dia.
b: 5.5 mm (0.217 in) dia.
Valve guide reamer Reaming valve guide 1 or hole for oversize
valve guide 2
Intake & Exhaust:
d
1 : 5.0 mm (0.217 in) dia.
d
2 : 9.675 mm (0.381 in) dia.
NT047
PBIC0887E
ZZA1210D
NT048
NT030
NT015
NT016
