HIGH PRESSURE PIPES
EM-263
[K9K]
C
D
E
F
G
H
I
J
K
L
M
A
EM

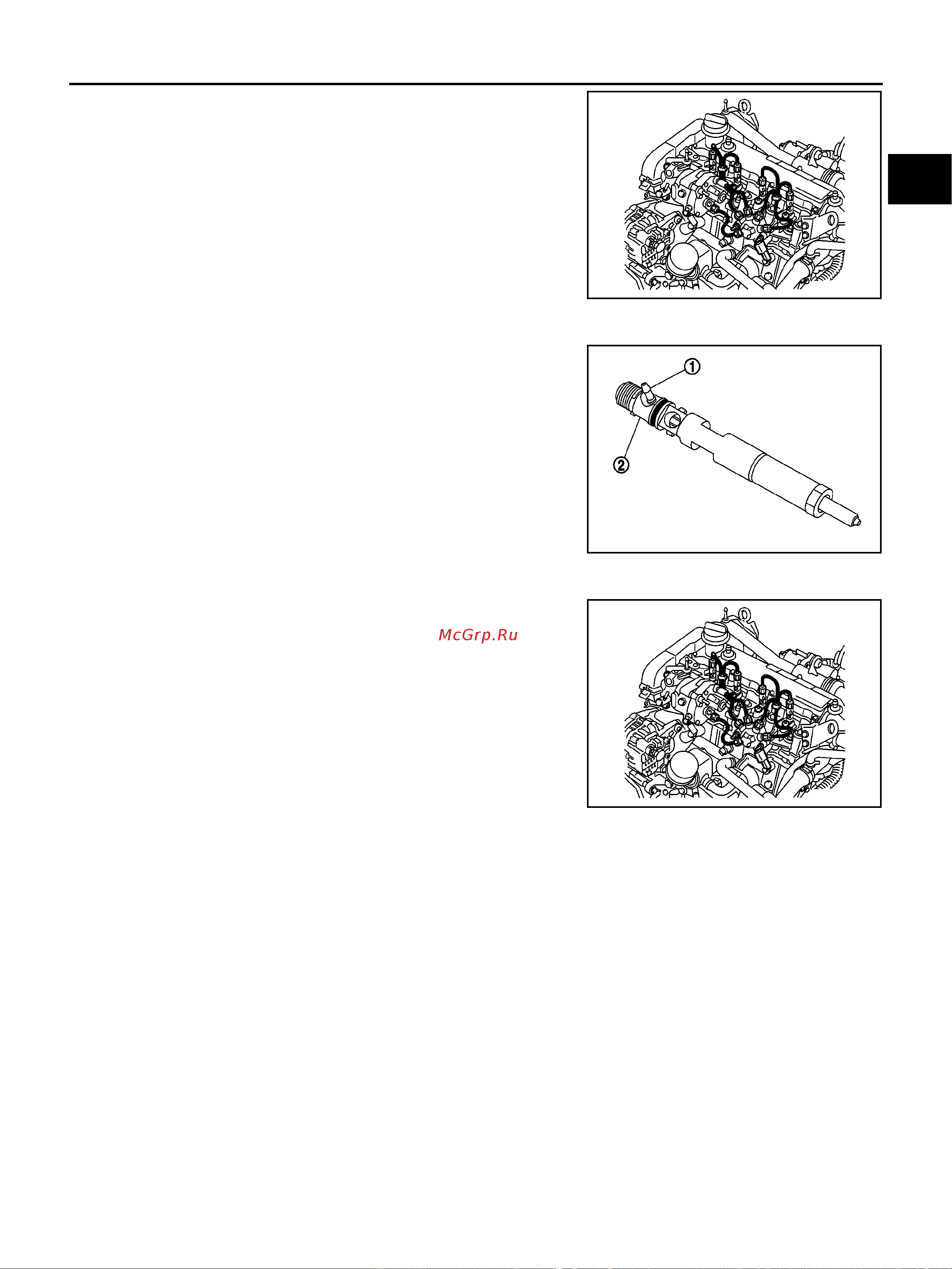

8. Undo the mounting nut of the rail a few turns.
CAUTION:
● When undoing the high pressure pipes, it is essential to
maintain the central union of the injector (2).
● Do not damage the injector's leak return duct (1).
NOTE:
Undo the nut on the pump side or the injector side, then the
nut located on the rail side. Undo the nuts for each pipe in
turn. Move the nut along the pipe keeping the olive in con-
tact with the taper.
9. Remove all the high pressure pipes.
10. Plug all the holes in the injection circuit.
11. Remove the rail.
INSTALLATION
CAUTION:
All the high pressure pipes removed must be systematically replaced.
1. Finger tightens the nuts.
2. Before fitting the new high pressure pipes, lightly lubricate the nut threads with the oil from the sachet pro-
vided in the new parts kit.
NOTE:
Fit the pump/rail pipe before the rail/injector pipes.
3. Fit the pump-rail high pressure pipe as follow:
● Remove the protective plugs from the high pressure pump outlet, the high pressure rail inlet and the
pipe.
● Insert the high pressure pipe olive into the taper of the high pressure pump outlet,
● Insert the high pressure pipe olive into the taper of the high pressure rail inlet.
● Finger tighten the nuts of the high pressure pipe starting with the one located on the rail side.
4. Fit the rail-injector high pressure pipe as follow:
MBIB9026E
MBIB9027E
MBIB9026E
