ENGINE ROOM COVER
EM-241
[K9K]
C
D
E
F
G
H
I
J
K
L
M
A
EM
ENGINE ROOM COVER PFP:14049
Removal and Installation
BBS002PW
REMOVAL
● Remove engine room cover from engine room cover bracket.
CAUTION:
Do not damage or scratch cover when installing or removing.
INSTALLATION
● Install in the reverse order of removal.
NOTE:
Press engine room cover until hearing the “click”.

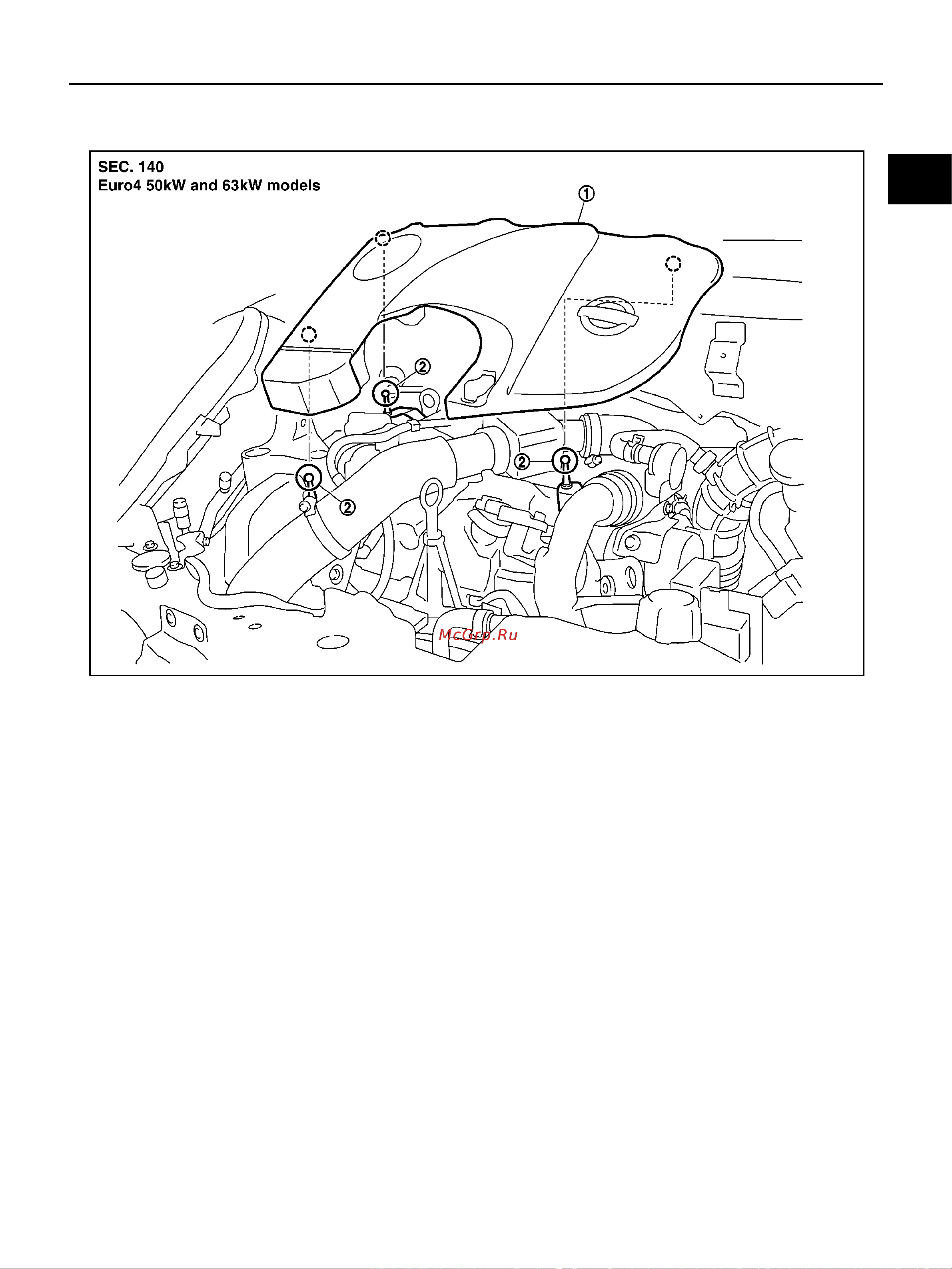

1. Engine room cover 2. Engine room cover bracket
MBIB1412E
