AIR CLEANER AND AIR DUCT
EM-19
[CR]
C
D
E
F
G
H
I
J
K
L
M
A
EM

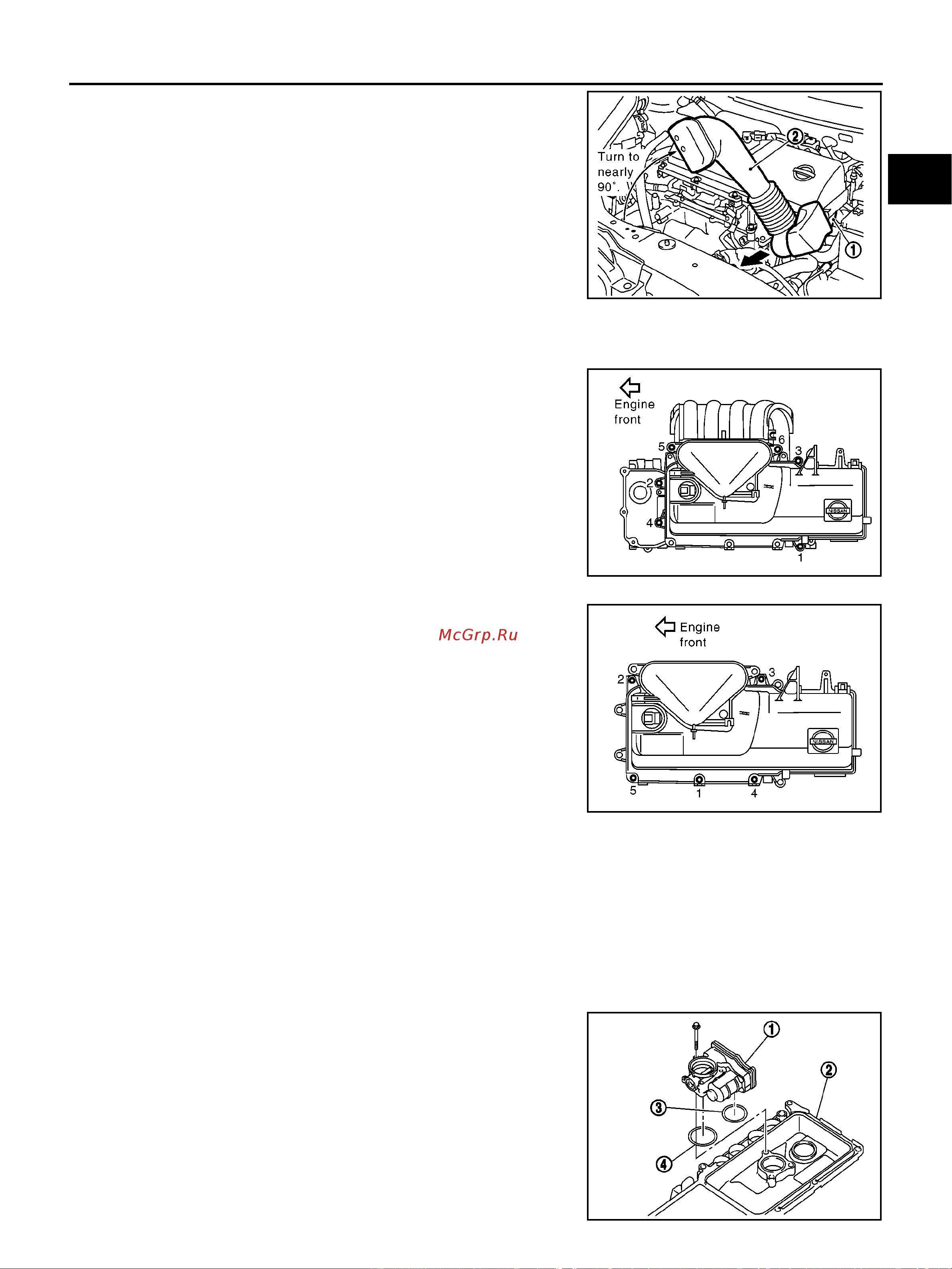

● Remove the clips, and with air duct (2) turned to nearly 90
degrees, pull off from the air cleaner body (1).
4. Remove the clips, pull the air cleaner body down then forward,
and then remove the air cleaner body and the air cleaner filter.
NOTE:
Removal and disassembly of the air cleaner case (upper) and
(lower) follows below.
5. Move the transaxle breather hose.
6. Remove the air cleaner case assembly in the following order.
● The entire air cleaner case (upper and lower) is referred to as
the air cleaner case assembly.
a. Separate the harness connector from the electronic throttle control actuator.
b. Separate the brake booster vacuum hose.
c. Loosen bolts in the reverse of the order shown in figure.
7. Remove the air cleaner case assembly by raising.
● Slowly raise the force evenly on the intake manifold joint to lift
it and remove the air cleaner case assembly.
CAUTION:
● To avoid damaging parts, do not use sudden force.
● Block the intake manifold openings with tape to make
sure no foreign particles get inside it while you are
removing the air cleaner case assembly.
8. Loosen the bolts in reverse of the order shown in the figure and
separate the air cleaner case (upper) and (lower).
9. Remove the electronic throttle control actuator from the air cleaner case (upper).
● Turn the air cleaner case (upper) over on the protective sheet to make sure the surface does not get
scratched.
● The electronic throttle control actuator should be handled with the following precautions in mind.
CAUTION:
● Handle electronic throttle control actuator with care. Avoid impacts.
● Do not disassemble or adjust.
INSTALLATION
1. Install the electronic throttle control actuator (1) to the air cleaner
case (upper) (2) in the following procedure:
a. Install the gasket (3) to the connector base.
b. Attach the gasket (4) to the outer groove on the throttle bore on
the side of the air cleaner case (upper) (2).
c. Install electronic throttle control actuator.
● There is no pre-determined order in which the mounting bolts
should be tightened.
● Perform the “Throttle Valve Closed Position Learning” when
harness connector of the electric throttle control actuator is
PBIC1293E
PBIC1419E
PBIC1420E
PBIC1294E
