EM-22
[CR]
INTAKE MANIFOLD
INTAKE MANIFOLD
PFP:14003
Removal and Installation
BBS002N9
REMOVAL
1. Remove air duct and air cleaner case assembly. Refer to EM-18, "AIR CLEANER AND AIR DUCT" .
2. Remove the PCV hose (between the intake manifold and the rocker cover) from the intake manifold side.
3. Remove the support bracket mounting bolt (No. 1 port upper engine front side)
4. Loosen nuts and bolts in the reverse of the order shown in the
figure to remove the intake manifold.
CAUTION:
Disregard No. 6 shown in figure in the loosening order.
NOTE:
Removal and installation of No. 5 nut is made easier by inserting
the tool into the recommended cutout part (2) on the No. 1 port
(1). (The same applies to No. 4 nut)

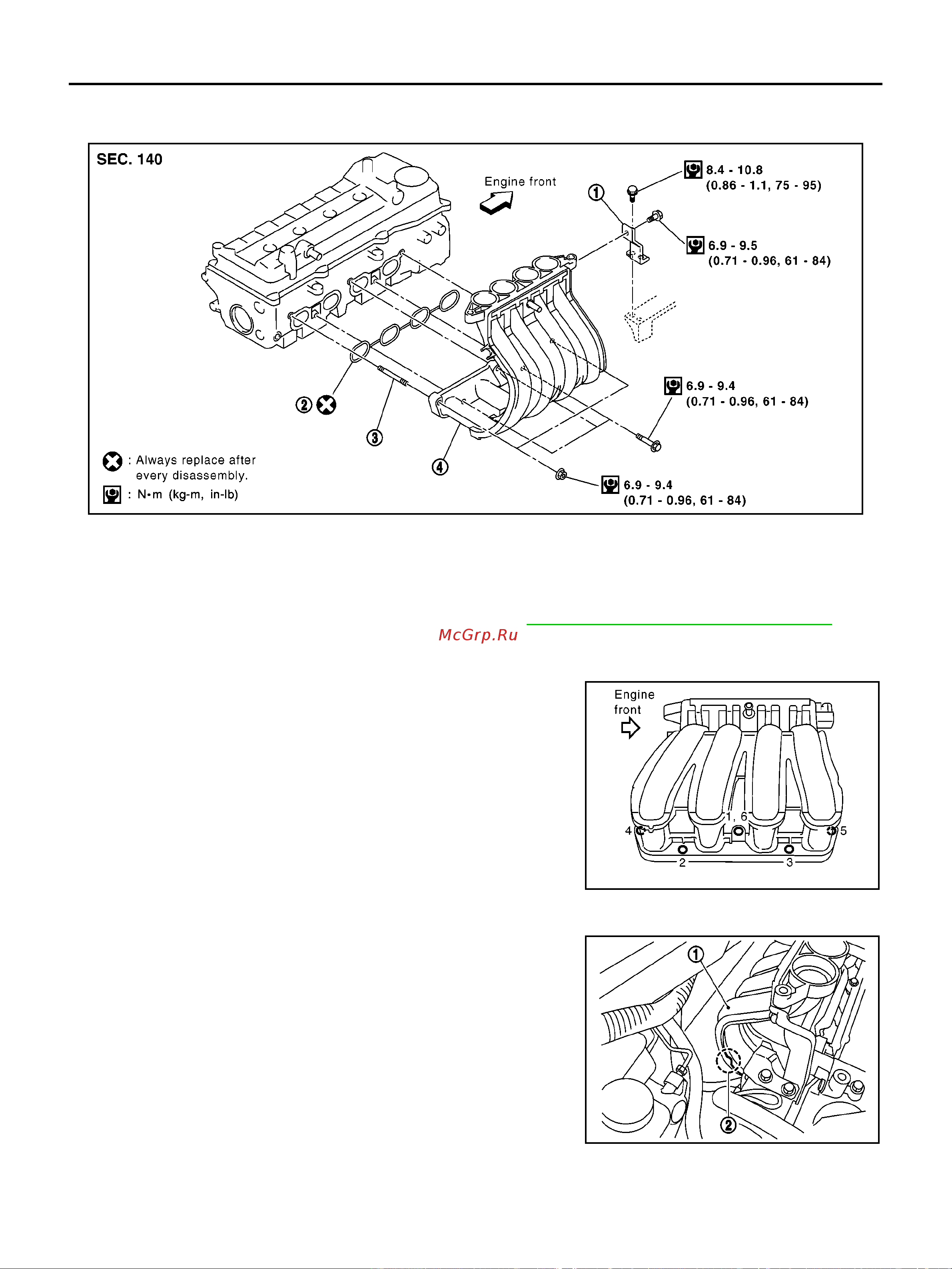

PBIC1421E
1. Support bracket 2. Gasket 3. Stud bolt
4. Intake manifold
PBIC1422E
PBIC1298E
