FUEL INJECTOR AND FUEL TUBE
EM-135
[HR]
C
D
E
F
G
H
I
J
K
L
M
A
EM
FUEL INJECTOR AND FUEL TUBE PFP:16600
Components
BBS002OO
CAUTION:
Do not remove or disassemble parts unless instructed as shown in the figure.
Refer to GI-11, "Components" for symbol marks in the figure.
Removal and Installation
BBS002OP
WARNING:
● Put a “CAUTION: INFLAMMABLE” sign in the workshop.
● Be sure to work in a well ventilated area and furnish workshop with a CO2 fire extinguisher.
● Do not smoke while servicing fuel system. Keep open flames and sparks away from the work area.
REMOVAL
1. Release the fuel pressure. Refer to EC-860, "FUEL PRESSURE RELEASE" (with EURO-OBD) or EC-
1281, "FUEL PRESSURE RELEASE" (without EURO-OBD).
2. Remove intake manifold. Refer to EM-120, "
INTAKE MANIFOLD" .

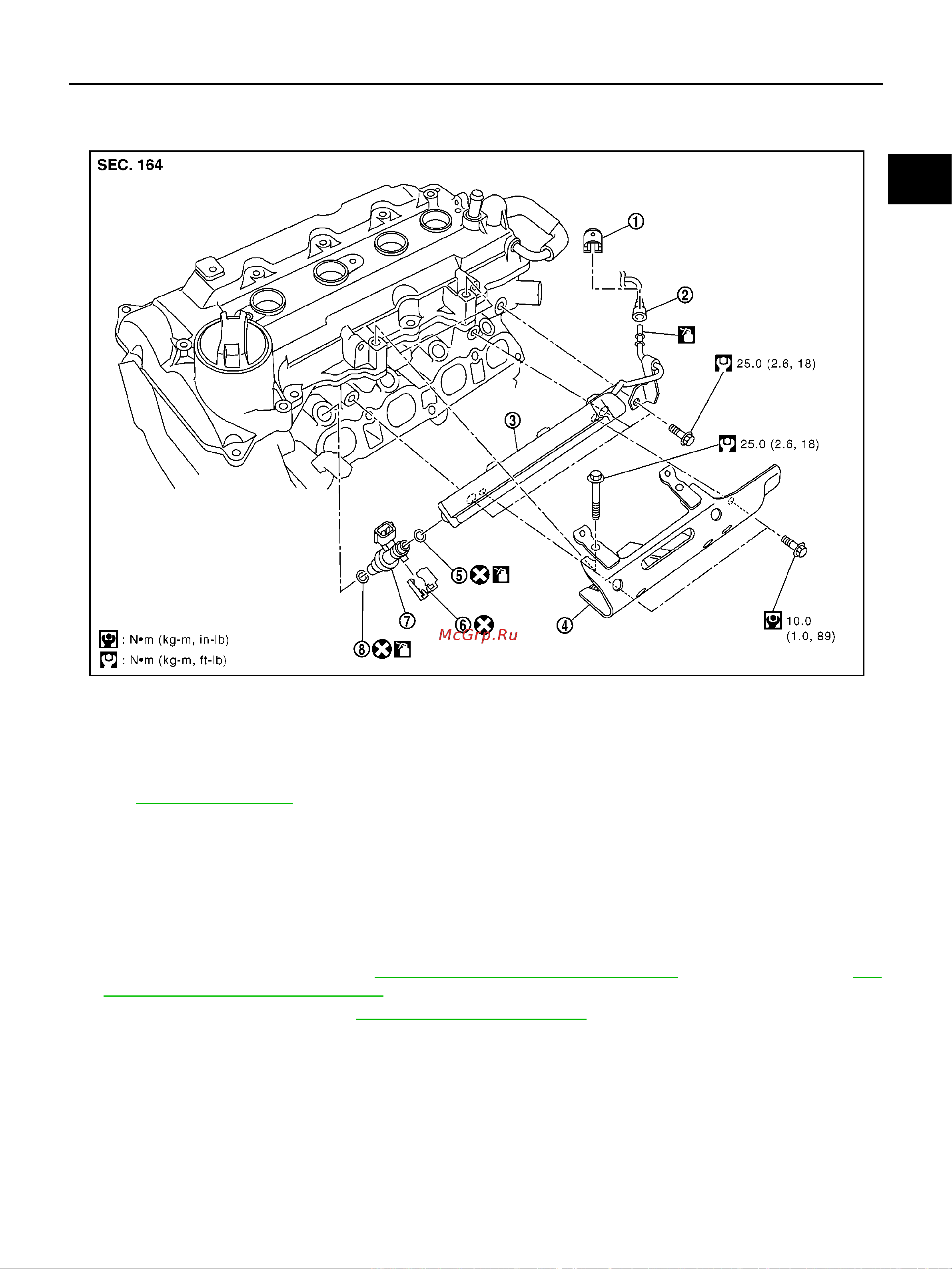

1. Quick connector cap 2. Fuel feed hose 3. Fuel tube
4. Fuel tube protector 5. O-ring (Black) 6. Clip
7. Fuel injector 8. O-ring (Green)
PBIC3663E
