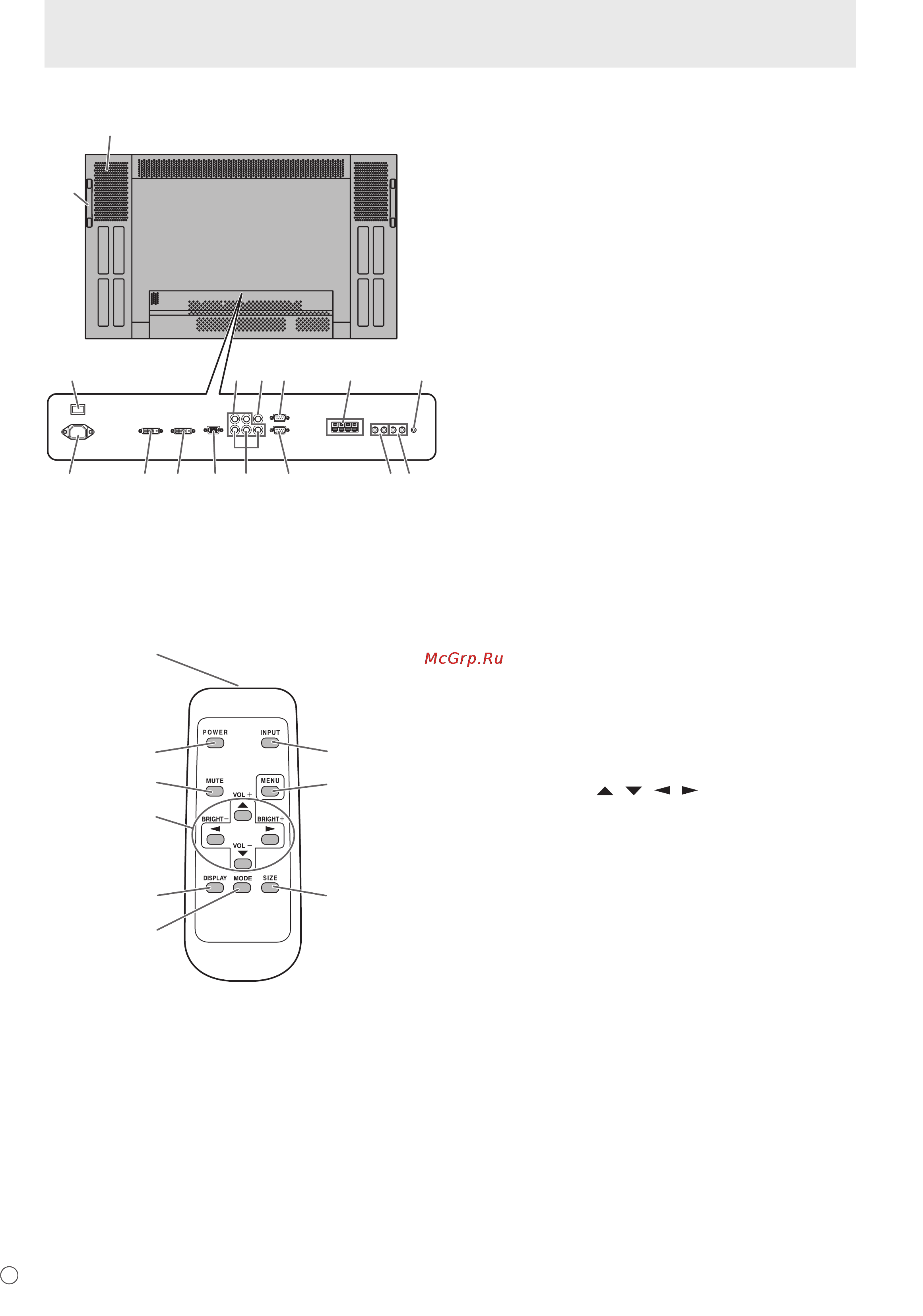

Part Names
Rear view
1 6 8 9 11 14
2 3 4 5 7 10 12 1
3
15
16
1. Main power switch (See page 14.)
2. AC input terminal (See page 12.)
3. PC/AV output terminal (DVI-D) (See page 11.)
4. PC1 input terminal (DVI-D) (See page 10.)
AV1 input terminal
(DVI-D) (See page 10.)
5. PC2 input terminal (Mini D-sub 15 pin) (See page 10.)
6. PC3 input terminals (BNC) (See page 10.)
7. AV2 input terminals (BNC) (See page 10.)
8. AV3 input terminal (BNC) (See page 10.)
9. RS-232C output terminal (D-sub 9 pin) (See page 24.)
10. RS-232C input terminal (D-sub 9 pin) (See page 24.)
11. External speaker terminals (See page 11.)
12. PC/AV audio output terminals (See page 11.)
13. AV audio input terminals (See page 10.)
14. PC audio input terminal (See page 10.)
15. Handles
16. Vents
Remote control unit
1
2
3
4
5
6
9
8
7
1. Signal transmitter
2. POWER button (See page 14.)
3. MUTE button (See page 15.)
4. VOL +/- buttons (See page 15.)
BRIGHT +/- buttons (See page 15.)
Cursor control ( / / / ) buttons
5. DISPLAY button (See page 15.)
6. MODE button (See page 15.)
7. INPUT button (See page 15.)
8. MENU button (See page 17.)
9. SIZE button (See page 15.)

Содержание

Похожие устройства

Part Names 1 Main power switch See page 14 2 AC input terminal See page 12 3 PC AV output terminal DVI D See page 11 4 PC1 input terminal DVI D See page 10 AV1 input terminal DVI D See page 10 5 PC2 input terminal Mini D sub 15 pin See page 10 6 PC3 input terminals BNC See page 10 7 AV2 input terminals BNC See page 10 8 AV3 input terminal BNC See page 10 9 RS 232C output terminal D sub 9 pin See page 24 10 RS 232C input terminal D sub 9 pin See page 24 11 External speaker terminals See page 11 12 PC AV audio output terminals See page 11 13 AV audio input terminals See page 10 14 PC audio input terminal See page 10 15 Handles 16 Vents Remote control unit 1 Signal transmitter 2 POWER button See page 14 3 MUTE button See page 15 4 VOL buttons See page 15 BRIGHT buttons See page 15 Cursor control I I I buttons 5 DISPLAY button See page 15 6 MODE button See page 15 7 INPUT button See page 15 8 MENU button See page 17 9 SIZE button See page 15 8
