CN8000A User Manual
92

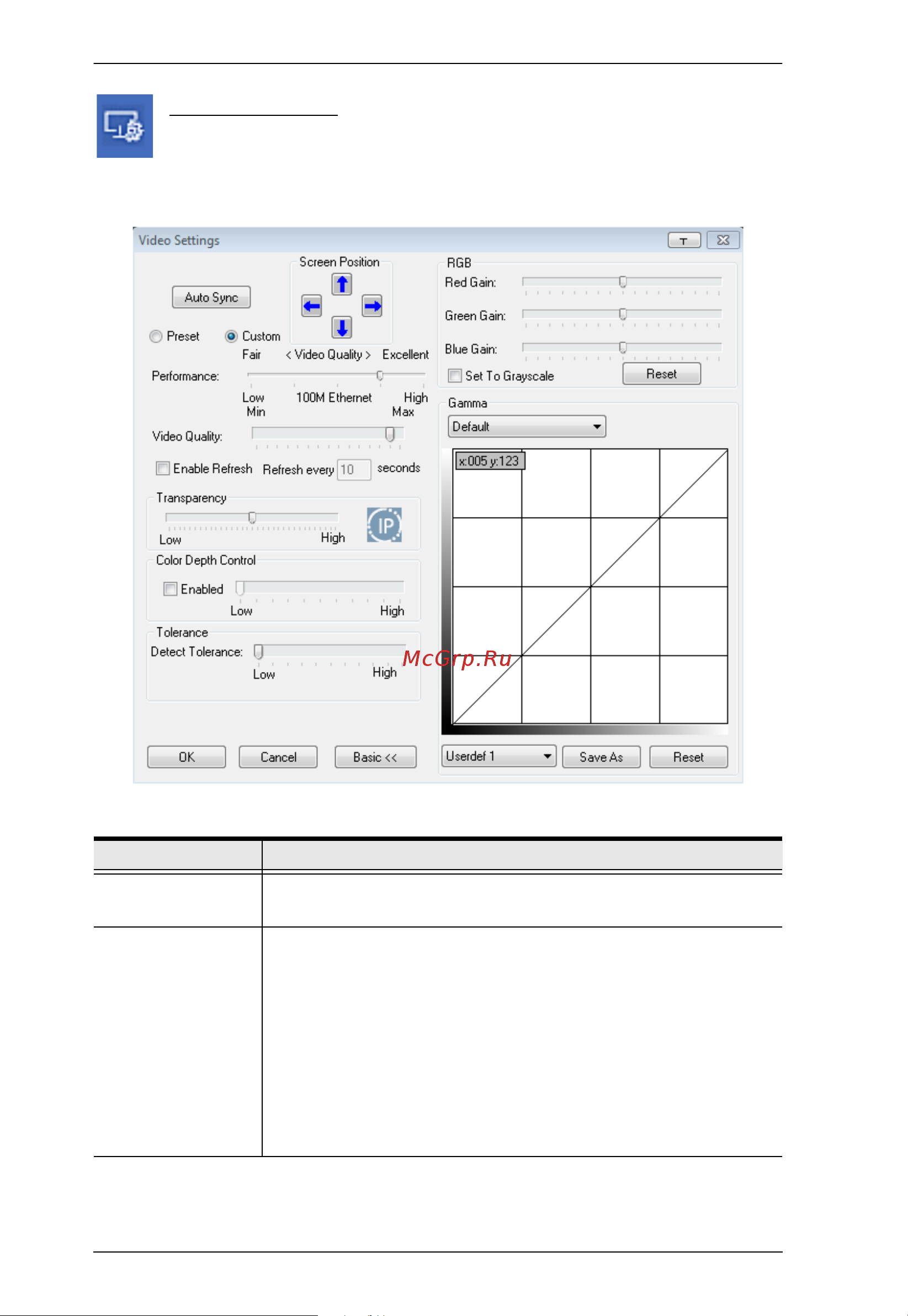

Video Settings
The Video Settings dialog box allows you to adjust the placement and
picture quality of the remote screen display on your monitor. Click
Advanced to view all the video settings.
The meanings of the adjustment options are given in the table below:
Option Usage
Screen Position Adjust the horizontal and vertical position of the remote computer
window by clicking the Arrow buttons.
Auto Sync Click Auto Sync to have the vertical and horizontal offset values
of the remote screen detected and automatically synchronized
with the local screen.
Note: 1. If the local and remote mouse pointers are out of sync,
in most cases, performing this function will bring them
back into sync.
2. This function works best with a bright screen.
3. If you are not satisfied with the results, use the Screen
Position arrows to position the remote display manually.
