1. Introduction

Components

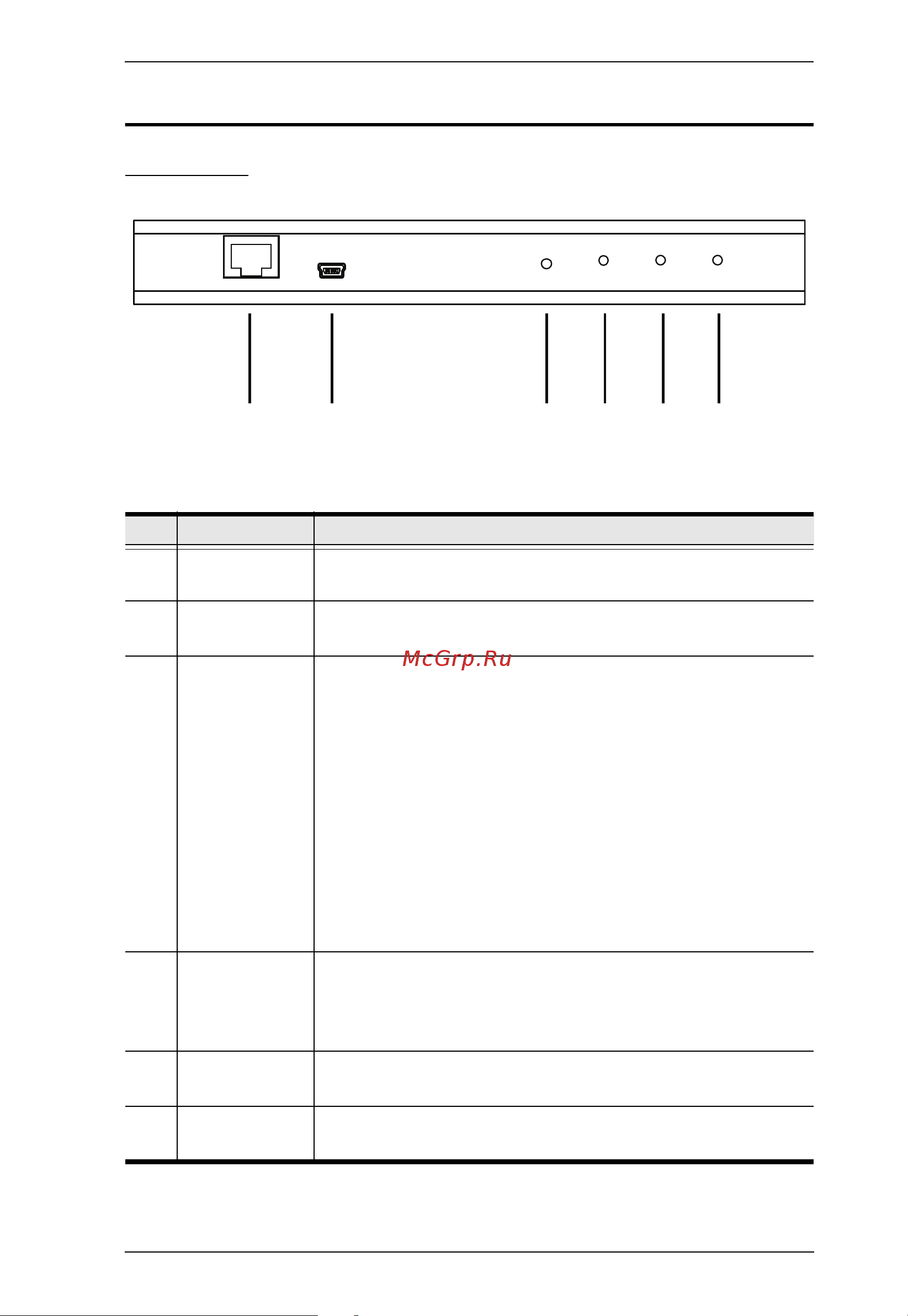

Front View

No. Component Description

1 LAN port The Cat 5e/6 cable that connects the CN8000A to the LAN

plugs in here.

2 Laptop USB

Console (LUC)

Use the USB cable provide with this package to connect a

laptop to this port for console access.

3 firmware

reset switch

1. Pressing and releasing this switch performs a CN8000A

system reset. (See Erratic operation, page 173.)

2. Pressing and holding this switch for more than three

seconds returns the CN8000A to its factory default

configuration settings.

3. Pressing and holding this switch while powering on the

switch returns the CN8000A to its factory default firmware

level. This operation should only be performed in the event

of a firmware upgrade failure that results in the device

becoming inoperable.

Note: This switch is recessed and must be pushed with a thin

object - such as the end of a paper clip, or a ballpoint pen.

4 10/100/1000

Mbps LED

The LED lights orange to indicate 10 Mbps data transmission

speed. It lights orange + green to indicate 100 Mbps data

transmission speed. It lights green to indicate 1000 Mbps data

transmission speed.

5 link LED Flashes green to indicate that a Client program is accessing

the device.

6 power LED Lights orange when the CN8000A is powered up and ready to

operate.

1 2 3 4 5 6
