CN8000A User Manual
10

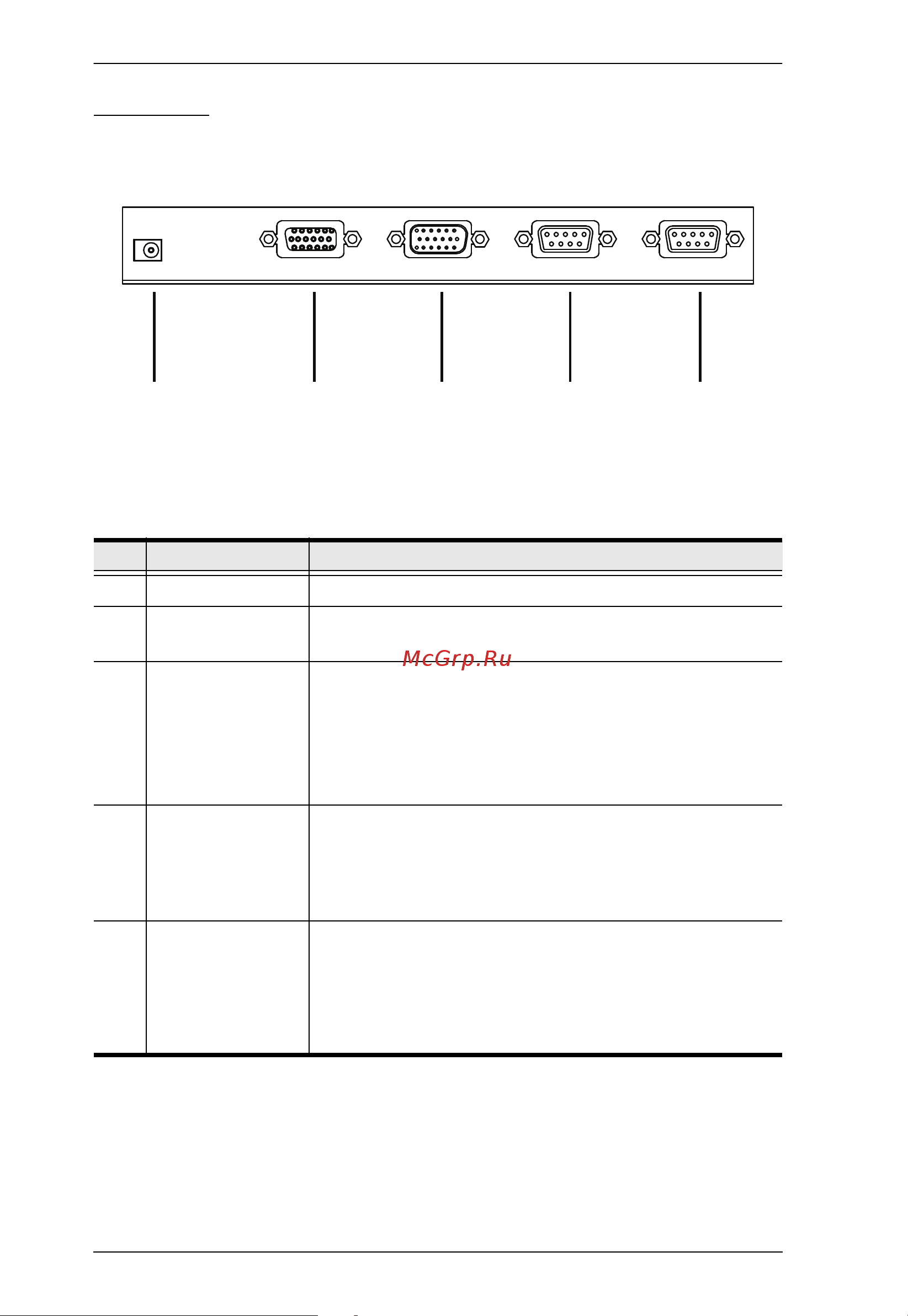

Rear View
No. Component Description
1 power jack The power adapter cable plugs in here.
2 PC/KVM port The KVM cable (supplied with this package) that links the
CN8000A to your server or KVM switch plugs in here.
3 PS/2 - USB
console port
The CN8000A can be accessed via a local console as well
as over the Net. The cable for the local console (keyboard,
monitor, and mouse) plugs in here. The console can use
either a PS/2 or USB keyboard and mouse. Each
connector is color coded and marked with an appropriate
icon to indicate itself.
4 PON port This port is made available for use with a Power over the
NET™ remote power management module. If you connect
a PON device, its cable plugs in here. Refer to the User
Manual that came with the PON device for operation
details.
5 RS-232 port This serial port is provided for:
1. Serial console management (see Console
Management, page 63 for details); or
2. Out-of-band modem operation (see OOBC, page 63 for
details).
1 2 3 4 5
