CN8000A User Manual
40
Advanced Settings
This section provides 7 sub-menus: Device Information, Network, ANMS,
Security, Console Management, Date/Time, and Customization, used to
configure device settings for the CN8000A.
Device Information

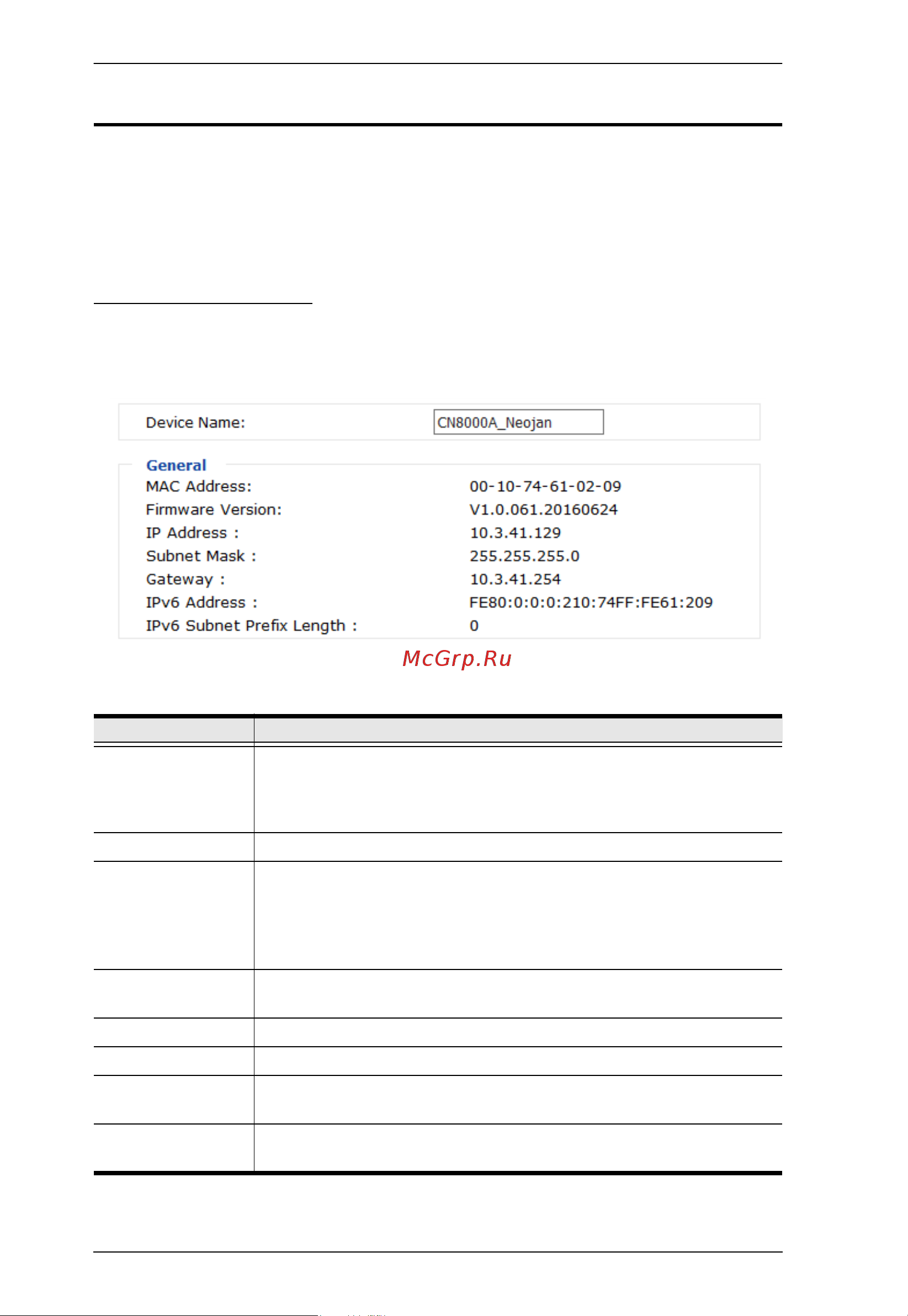

The Device Information page is the first of the Advanced Settings pages, and
provides information about the CN8000A's status.
An explanation of each of the fields is given in the table below:
Field Explanation
Device Name To make it easier to manage installations that have more than one
CN8000A, each one can be given a name. To assign a name for
the CN8000A, key in one of your choosing here (50 characters
max.), then click Save.
MAC Address: The CN8000A's MAC Address is displayed here.
Firmware Version Indicates the CN8000A's current firmware version level. New
versions of the CN8000A's firmware can be downloaded from our
website as they become available (see Upgrade Main Firmware,
page 36). You can reference this number to see if there are newer
versions available on the website.
IP Address Displays the CN8000A’s Internet Protocol Version 4 (32 bit)
address.
Subnet Mask Displays the CN8000A’s Subnet Mask address.
Displays the CN8000A’s Default Gateway address.
IPv6 Address Displays the CN8000A’s Internet Protocol Version 6 (128 bit)
address (Appears only when an IPv6 address is assigned).
IPv6 Subnet Prefix
Length
Displays the prefix length of the IPv6 Subnet address (Appears
only when an IPv6 address is assigned).
