CN8000A User Manual
72
Preferences
The following sections describe the administration utilities covered in this
section, including the User Preferences, Log, Remote Console and
Download pages. You can find the links to these screens under Preferences in
the left panel menu.
User Preferences
The User Preferences screen allows the user to set the device password, as well
as device parameters including the Language, OSD Hotkey, Logout Timeout
and the Viewer.

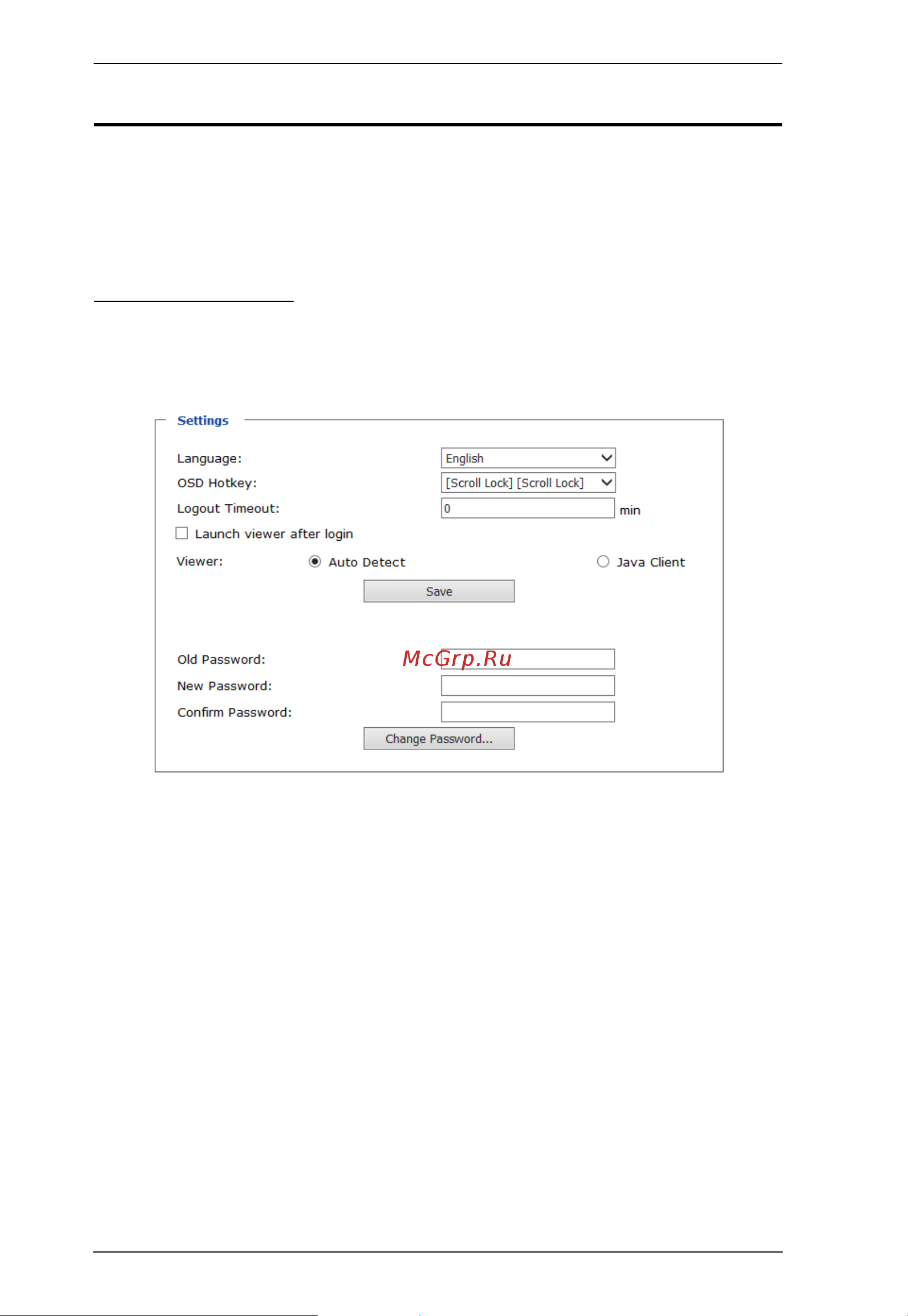

Settings
Set device parameters using the following fields:
Language: Selects the language that the interface displays in. Drop down
the list to make your selection.
Selecting Auto causes the CN8000A to display the pages in the same
language to which the browser is set.
If your browser is set to a non-supported language, the CN8000A looks to
what your server’s operating system is set to. If the operating system is set
to a supported language it will use that language to display its pages. If the
operating system is set to a non-supported language, the CN8000A
defaults to English. After making your choice, click Save.
OSD Hotkey: Select the keyboard combination to call the OSD function.
Logout Timeout: Set how many minutes the CN8000A allows a user
session to last before terminating the session.
