7. The JavaClient Viewer
119
Message Board

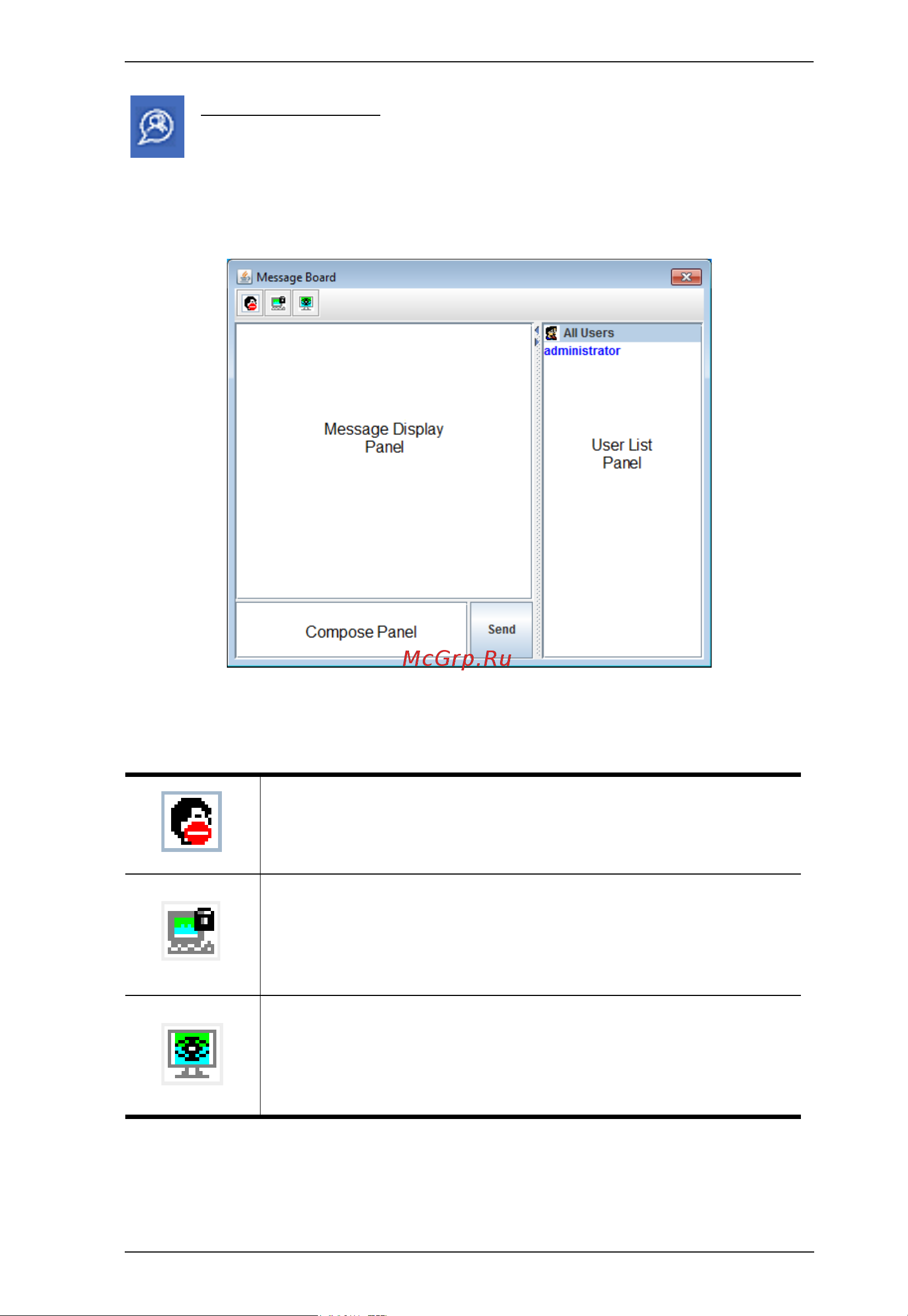

The CN8000A supports multiple user logins, which can possibly give
rise to access conflicts. To alleviate this problem, a message board
feature, similar to an Internet chat program, allows users to communicate with
each other:
The buttons on the Button Bar are toggles. Their actions are described in the
table below:
Enable/Disable Chat. When disabled, messages posted to the
board are not displayed. The button is shadowed when Chat is
disabled. The icon displays next to the user's name in the User List
panel when he has disabled Chat.
Occupy/Release Keyboard/Video/Mouse. When you Occupy the
KVM, other users cannot see the video, and cannot input keyboard
or mouse data. The button is shadowed when the KVM is occupied.
The icon displays next to the user's name in the User List panel
when he has occupied the KVM.
Occupy/Release Keyboard/Mouse. When you Occupy the KM,
other users can see the video, but cannot input keyboard or mouse
data. The button is shadowed when the KM is occupied. The icon
displays next to the user's name in the User List panel when he has
occupied the KM.
