CN8000A User Manual
42

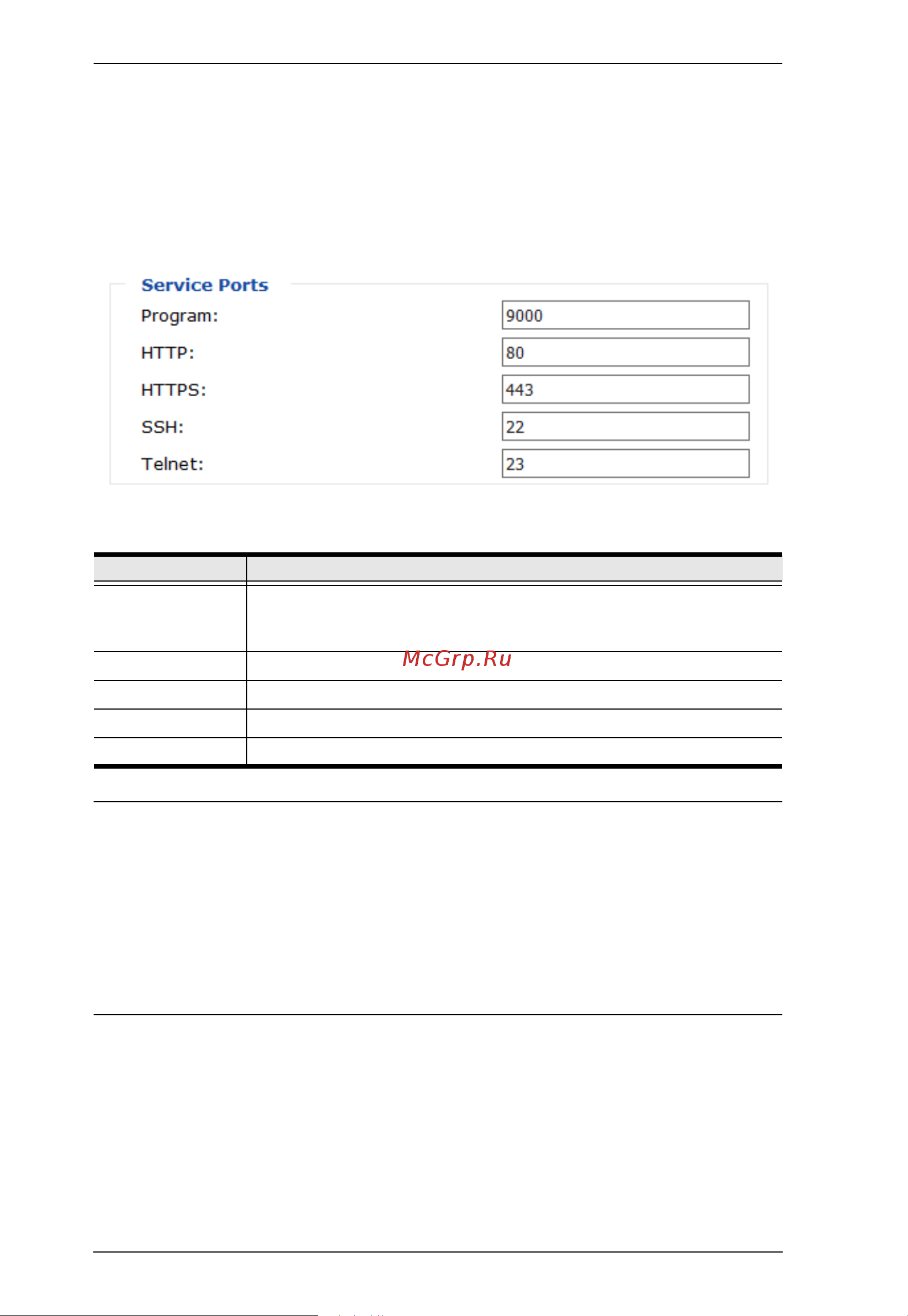

Service Ports
If a firewall is being used, the Administrator can specify the port numbers that
the firewall will allow (and set the firewall accordingly). If a port other than the
default is set, users must specify the port number as part of the IP address when
they login from a WinClient or Java Client AP program. If not, an invalid port
number (or no port number) is specified, the CN8000A will not be found.
An explanation of the fields is given in the table below:
Note: 1. Valid entries for all of the Service Ports are from 1–65535.
2. The service ports cannot have the same value. You must set a
different value for each one.
3. If port numbers are not set to the default value, any user trying to
access the CN8000A from a Windows Client AP, Java Client AP,
third party SSH or Telnet viewer, or via web browser will need to
specify the new port number for access.
Field Explanation
Program This is the port number for connecting to the CN8000A from the
Windows Client and Java Applet Viewers, and from the Windows
and Java AP programs. The default is 9000.
HTTP The port number for a browser login. The default is 80.
HTTPS The port number for a secure browser login. The default is 443.
SSH The port for SSH access. The default is 22.
Telnet The port for Telnet access. The default is 23.
