5. Administration
43

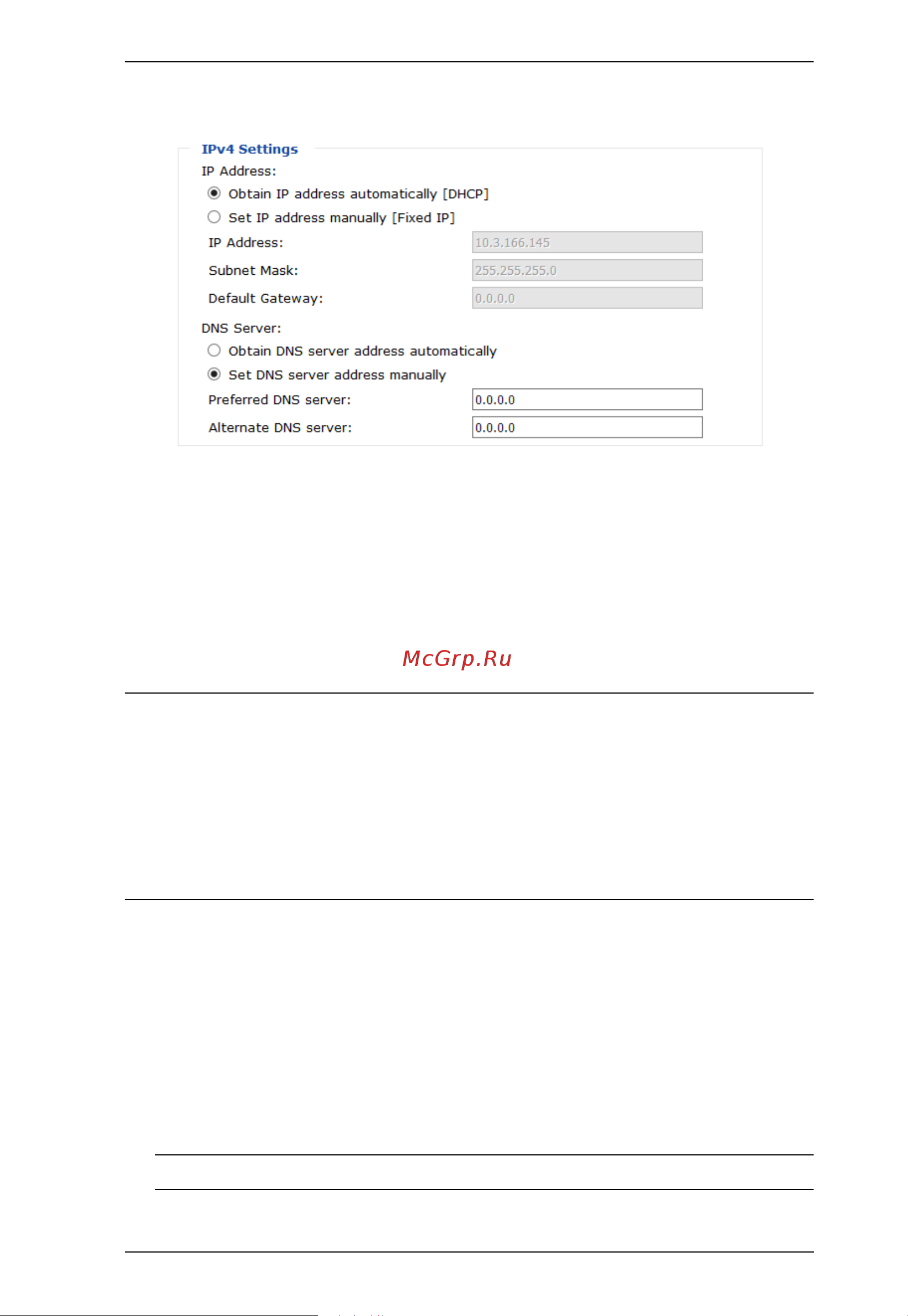

IPv4 Settings
The CN8000A can have its IPv4 address assigned dynamically at boot-up
(DHCP), or it can be given a fixed IP address.
For dynamic IP address assignment, select the Obtain IP address
automatically [DHCP], radio button. (This is the default setting.)
To specify a fixed IP address, select the Set IP address manually [Fixed
IP], radio button and fill in the IP Address, Subnet Mask and Default
Gateway.
Note: 1. If you choose Obtain IP address automatically [DHCP], when the
switch starts up it waits to get its IP address from the DHCP server. If
it hasn’t obtained the address after one minute, it automatically
reverts to its factory default IP address (192.168.0.60.)
2. If the CN8000A is on a network that uses DHCP to assign network
addresses, and you need to ascertain its IP address, see IP Address
Determination, page 159, for information.
DNS Server
The CN8000A can have its DNS server address assigned automatically, or a
fixed address can be specified.
For automatic DNS Server address assignment, select the Obtain DNS
server address automatically, radio button.
To specify a fixed address, select the Set DNS server address manually,
radio button and fill in the required information.
Note: Specifying an alternate DNS Server address is optional.
