CN8000A User Manual
70

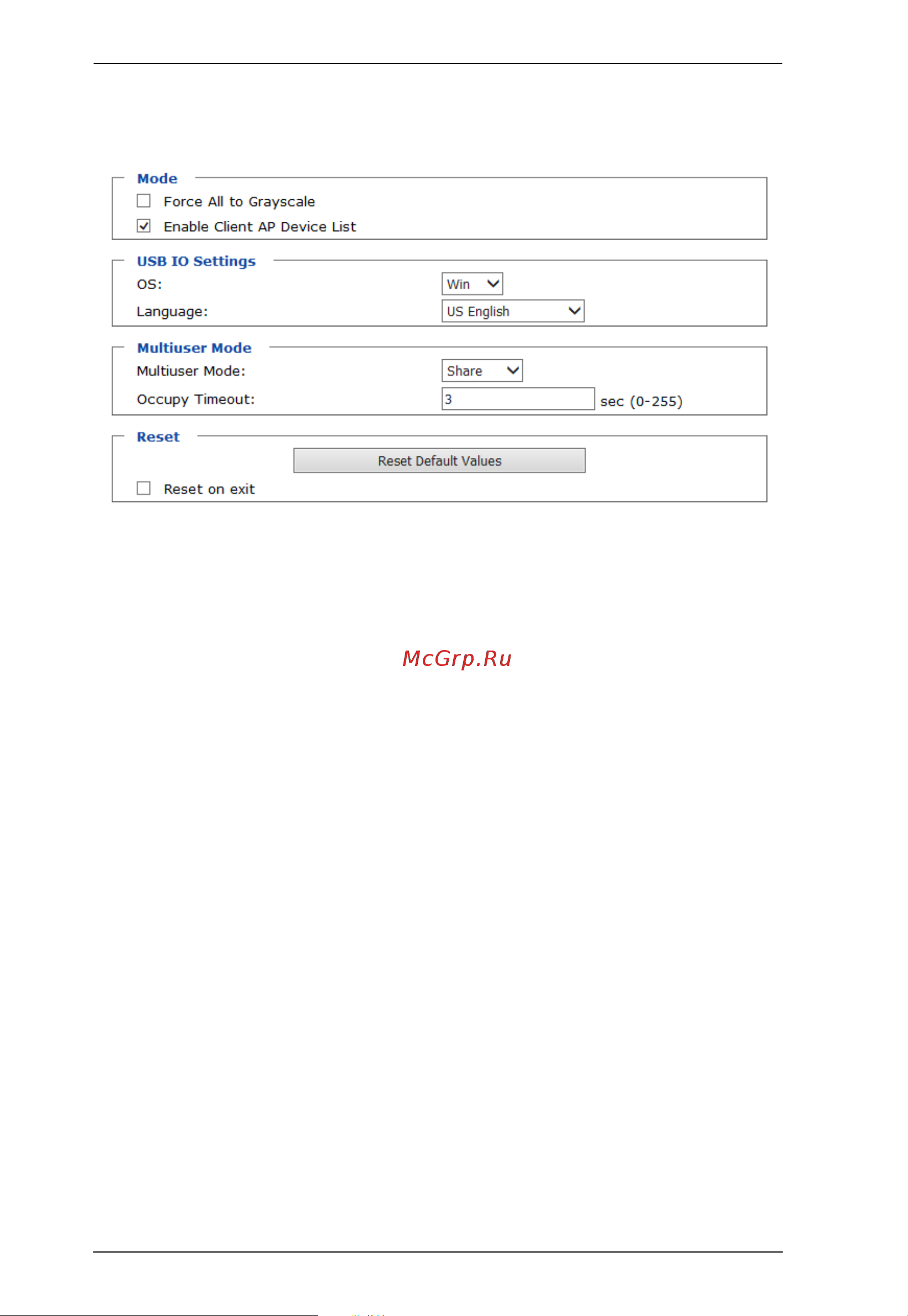

Customization
Use this section to edit the device settings.
If Force All to Grayscale is enabled, the remote displays of all devices
connected to the CN8000A are changed to grayscale. This can speed up I/
O transfer in low bandwidth situations.
If Enable Client AP Device List is enabled, the switch appears in the
Server List when using the WinClient or Java Client AP (see The
WinClient Viewer, page 77, and The JavaClient Viewer, page 111). If this
option is not enabled, the switch can still be connected to, but its name will
not appear in the Server List.
OS: Specifies the operating system that the server on the connected port is
using. Choices are Win, Mac, Sun, and Other. The default is Win.
Language: Specifies the OS language being used by the server on the
connected port. Drop down the list to see the available choices. The
default is English US.
(Continues on next page.)
