5. Administration
35
Sessions

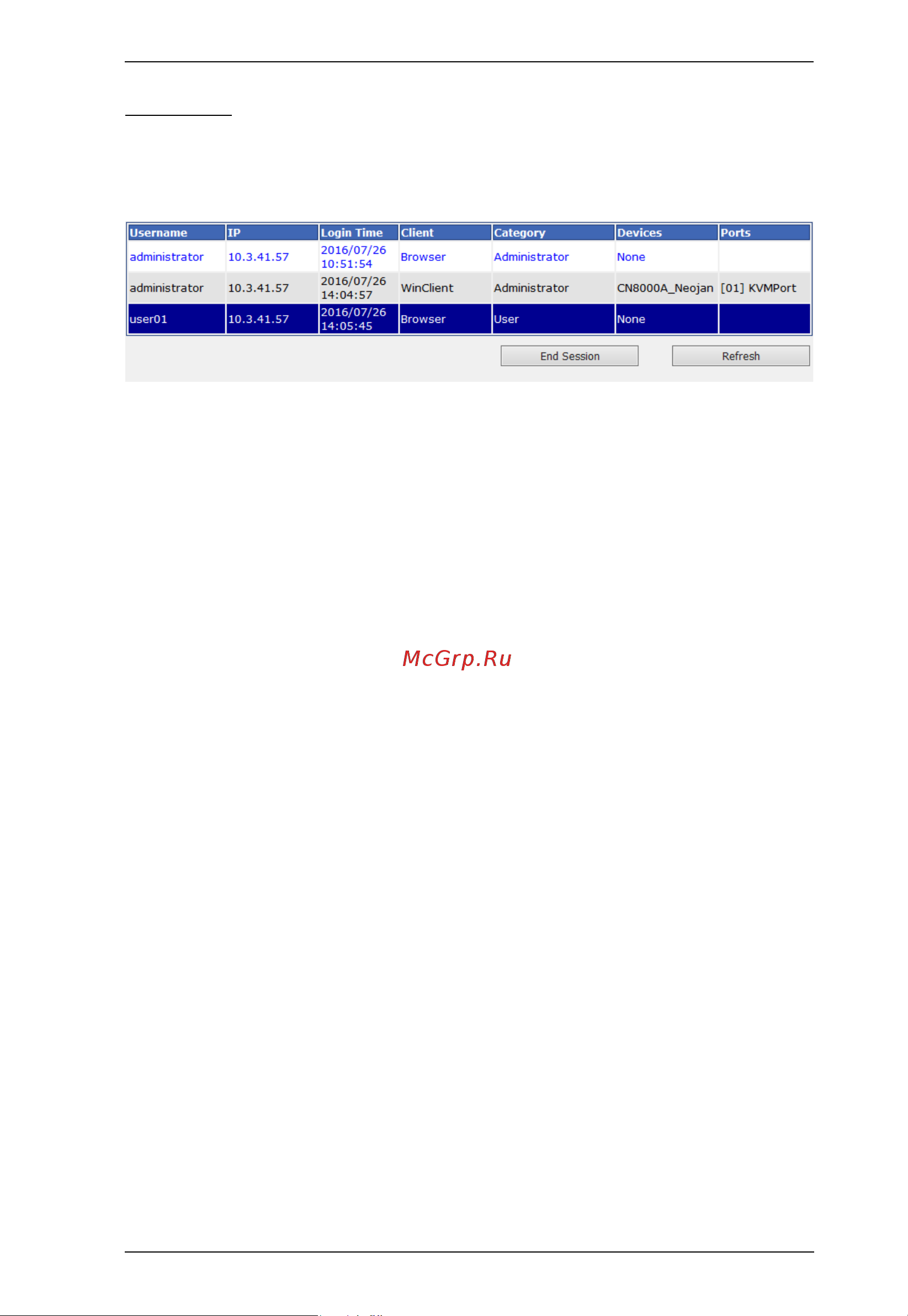

The Sessions page lets the administrator see at a glance all the users currently
logged into the CN8000A, and provides information about each of their
sessions.
The meanings of the headings at the top of the page are fairly straightforward.
Username refers to the account that the user logged in with.
IP refers to the IP address that the user has logged in from.
Login Time refers to the date and time that the account logged in.
Client refers to the means the user employed to connect to the CN8000A
(Browser, WinClient AP, JavaClient AP, etc.).
Category lists the type of user who has logged in: Admin (Administrator),
User, or Select. (See User Management, page 32 for details about user
types.)
Devices lists the device name given to the CN8000A.
Ports lists the name of the name of the KVM port that is being accessed by
the user.
This page also gives the administrator the option of forcing a user logout by
selecting the user and clicking End Session; or refreshing the Sessions page by
clicking Refresh.
