Aten CN8000A [53/203] Ping host

5. Administration

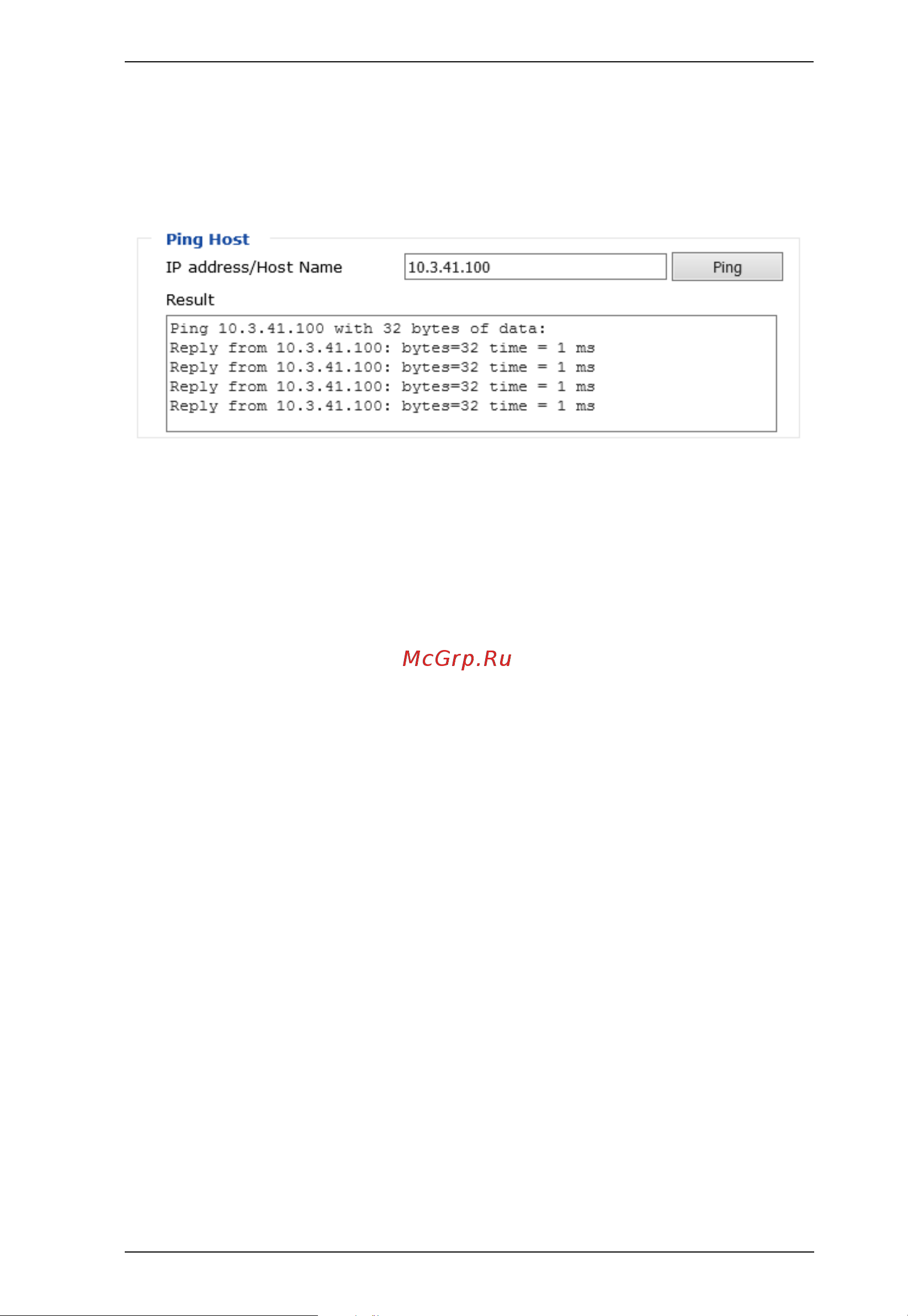

Ping Host

The Ping Host page allows you to ping the IP address of a device to see if it’s

responding on the network. To ping a device, enter the IP address and click

Ping.
