CN8000A User Manual
36
Maintenance
The Maintenance page allows Administrators to upgrade the firmware,
backup/restore the CN8000A’s settings and user information, and ping
devices.
Upgrade Main Firmware
As new versions of the CN8000A firmware become available, they can be
downloaded from our website. Check the website regularly to find the latest
information and packages.
To upgrade the firmware, do the following:
1. Download the new firmware file to your computer.

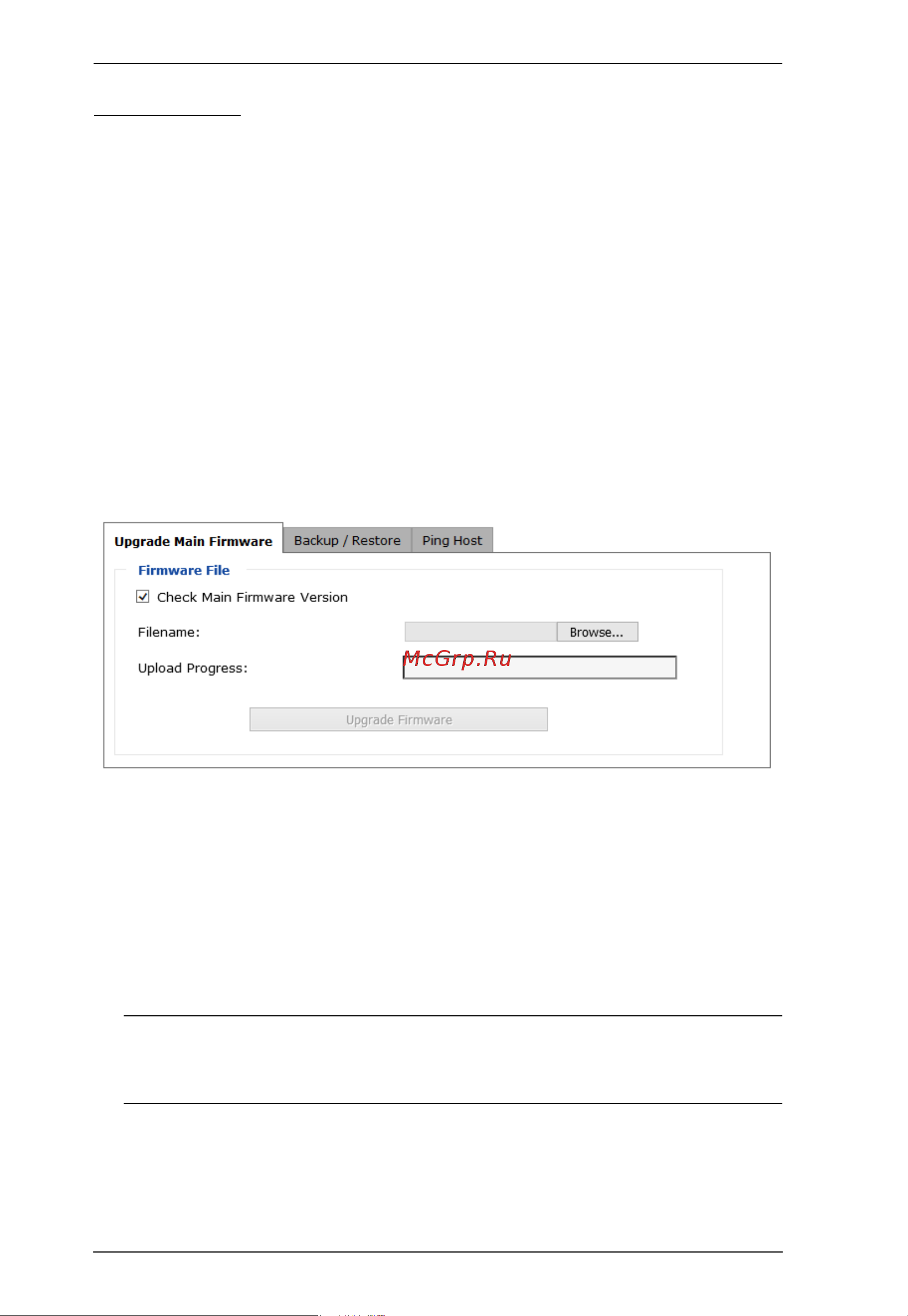

2. Open your browser; log in to the CN8000A; and click the Maintenance
link to bring up the Firmware File dialog box:
3. Click Browse; navigate to the directory that the new firmware file is in
and select the file.
4. Click Upgrade Firmware.
If Check Main Firmware Version is enabled, when you perform an
upgrade the current firmware level is compared with that of the upgrade
file. If the current version is higher than or equal to the upgrade version, a
message appears informing you of the fact and the procedure stops.
Note: If you want to install an older firmware version, you must uncheck
the Check Firmware Version checkbox before clicking Upgrade
Firmware.
5. After the upload completes, a message appears on the screen to inform you
that the operations succeeded. Click Logout at the bottom left of the Main
web page.
