CN8000A User Manual
74

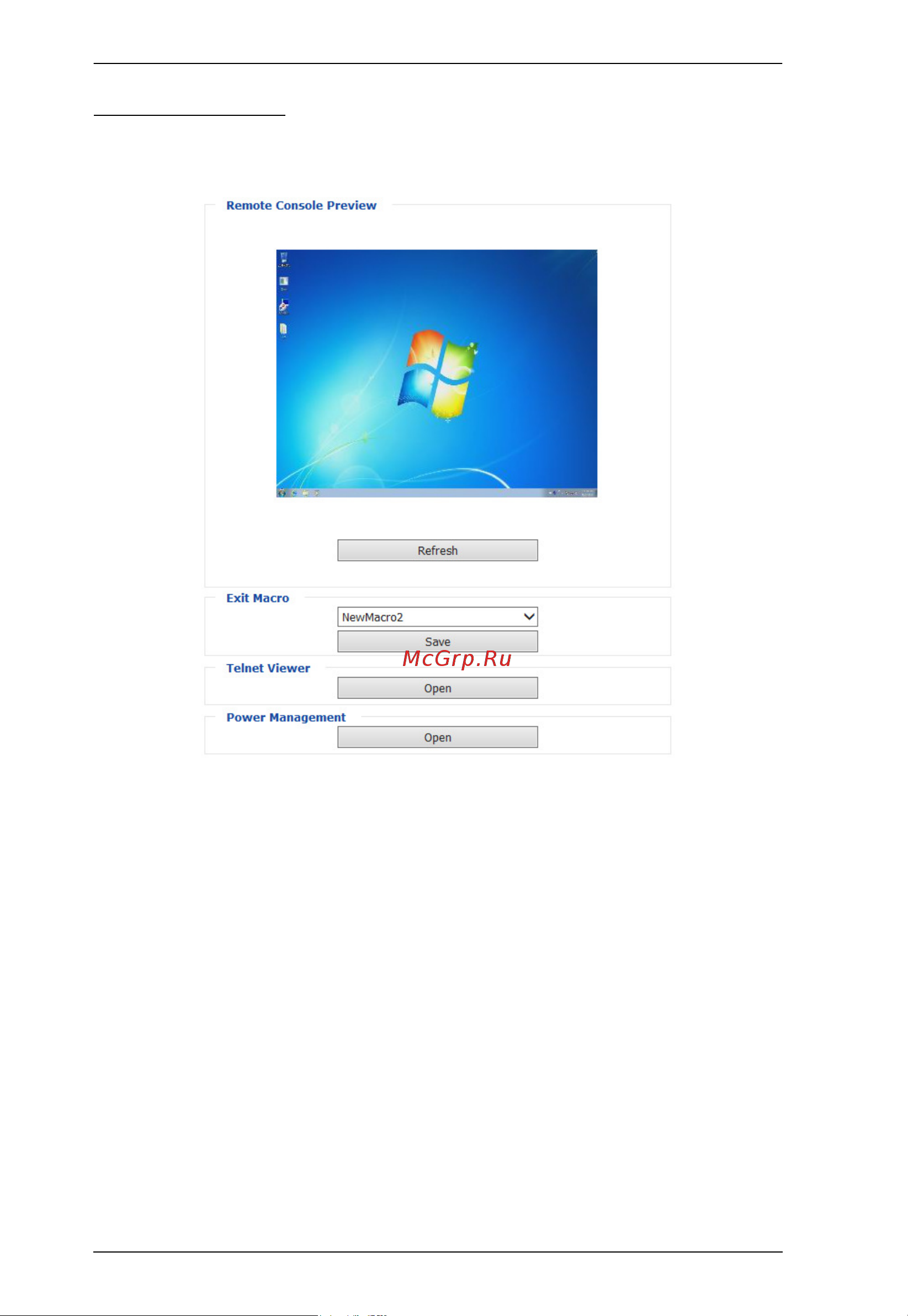

Remote Console
This section provides a preview screen that shows a snapshot of the server’s
display, as follows:
Clicking Refresh updates the snapshot of the remote display.
Exit Macro
The Exit Macro panel contains a drop-down list box of user created System
macros: Select the Exit Macro you would like to use and click Save. See System
Macros, page 89, for details on creating exit macros.
Telnet
If the Serial Console is enabled and a user has telnet access rights, then the
“Open Telnet Client” button will appear on the Remote Console page. Click
this button to launch the built in telnet client AP.
Open Power Management
To configure the PN0108 (a Power Over the NET™ device), click Open Power
Management. When a connection between the devices is established, you can
