CN8000A User Manual

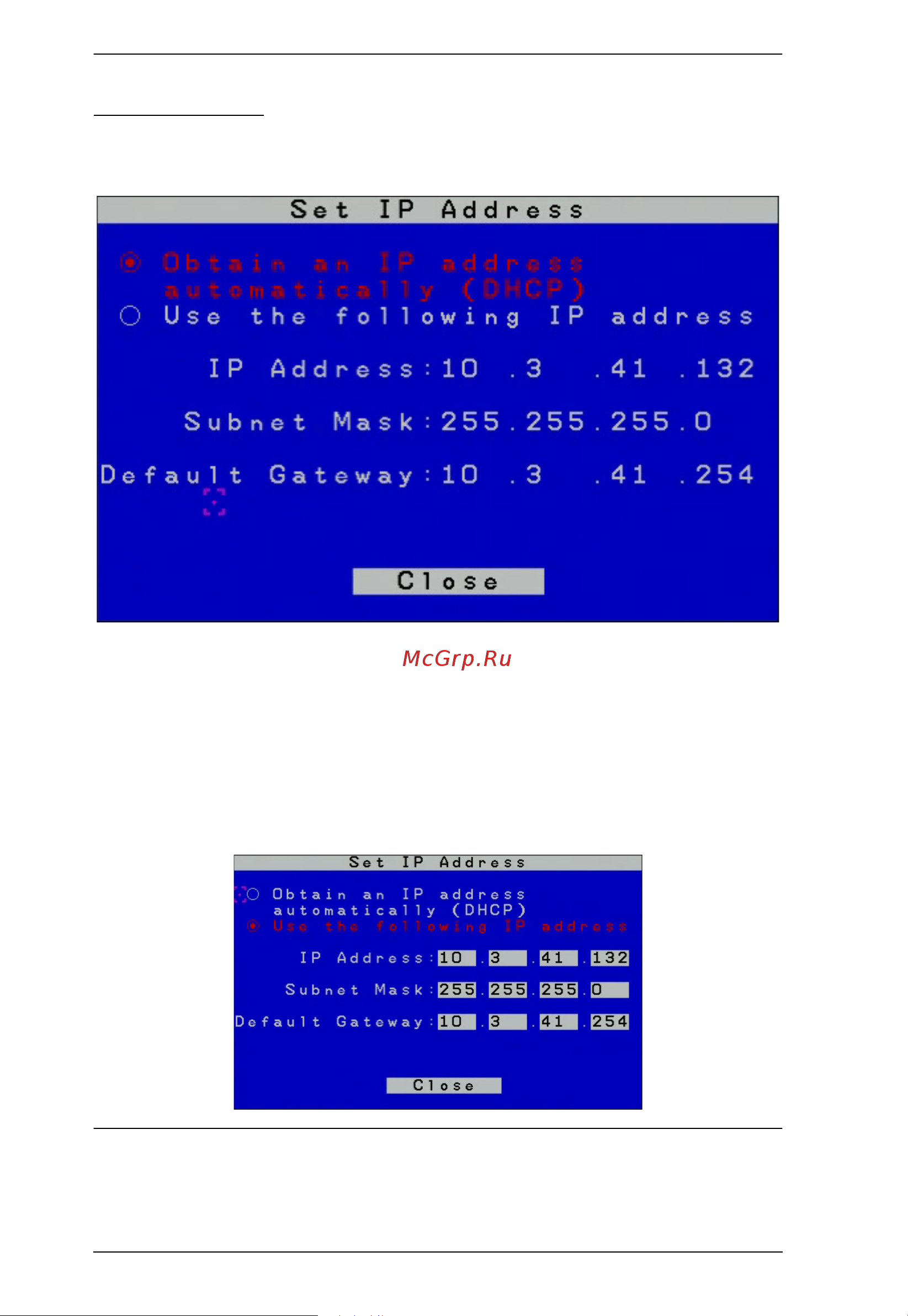

Set IP Address

The Set IP Address screen is used to specify the CN8000A's network

environment.

The CN8000A can have its IPv4 address assigned dynamically (DHCP), or it

can be given a fixed IP address.

 For dynamic IP address assignment, select the Obtain IP address

automatically (DHCP], radio button. (This is the default setting.)

 To specify a fixed IP address, select the Set IP address manually [Fixed

IP], radio button and fill in the IP Address, Subnet Mask and Default

Gateway. When you select this option the following screen appears:

Note: 1. If you choose Obtain IP address automatically (DHCP), when the

switch starts up it waits to get its IP address from the DHCP server. If
