Chapter 3. OSD Operation
21

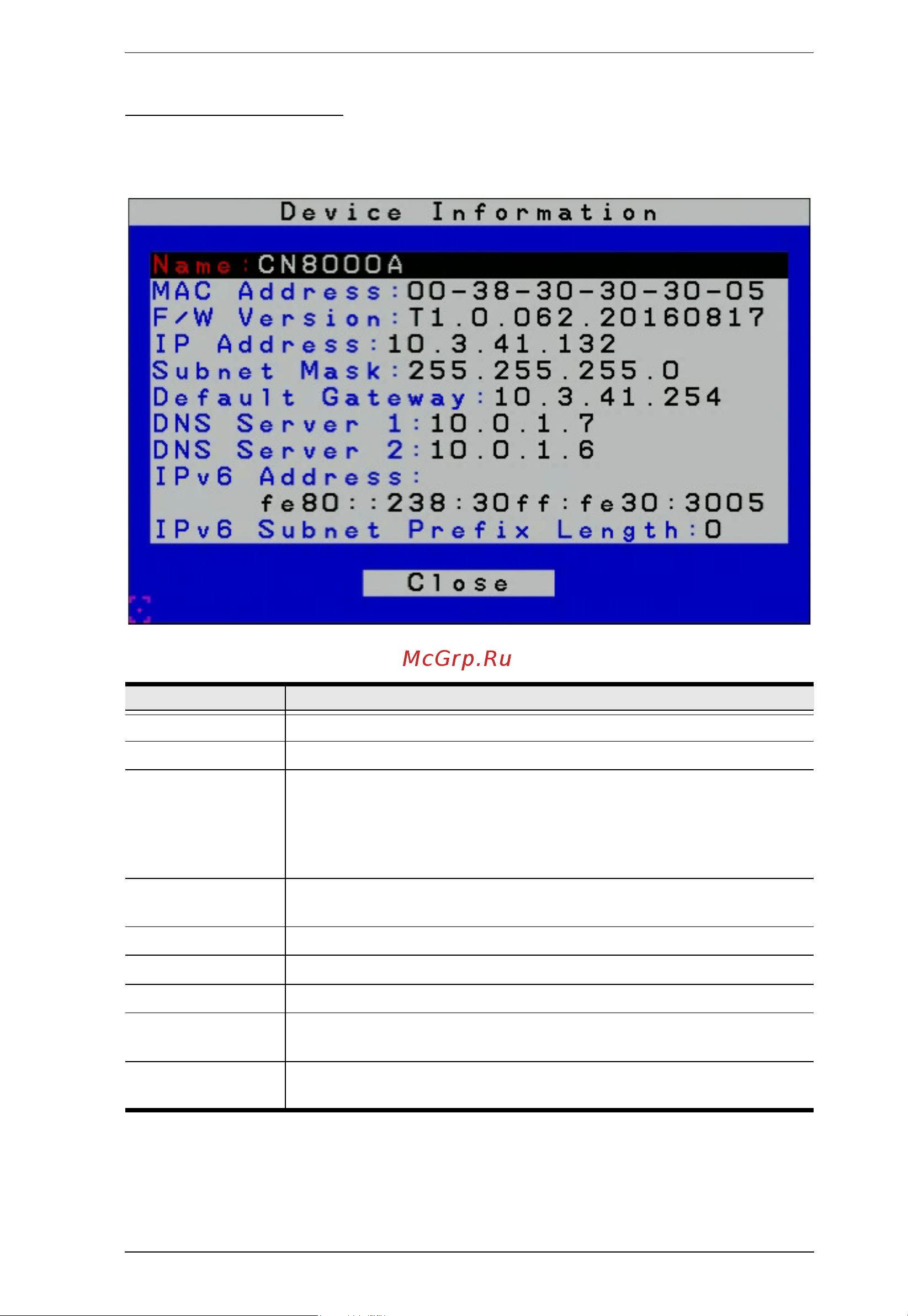

Device Information
The Device Information page provides information about theCN8000A's
status.
Field Explanation
Device Name Display the name given to the CN8000A.
MAC Address: The CN8000A's MAC Address is displayed here.
Firmware Version Indicates the CN8000A's current firmware version level. New
versions of the CN8000A's firmware can be downloaded from our
website as they become available (see Upgrade Main Firmware,
page 36). You can reference this number to see if there are newer
versions available on the website.
IP Address Displays the CN8000A’s Internet Protocol Version 4 (32 bit)
address.
Subnet Mask Displays the CN8000A’s Subnet Mask address.
Default Gateway Displays the CN8000A’s Default Gateway address.
DNS Server 1 / 2 Displays the DNS Server configured for the CN8000A.
IPv6 Address Displays the CN8000A’s Internet Protocol Version 6 (128 bit)
address (Appears only when an IPv6 address is assigned).
IPv6 Subnet Prefix
Length
Displays the prefix length of the IPv6 Subnet address (Appears
only when an IPv6 address is assigned).
