CN8000A User Manual
64

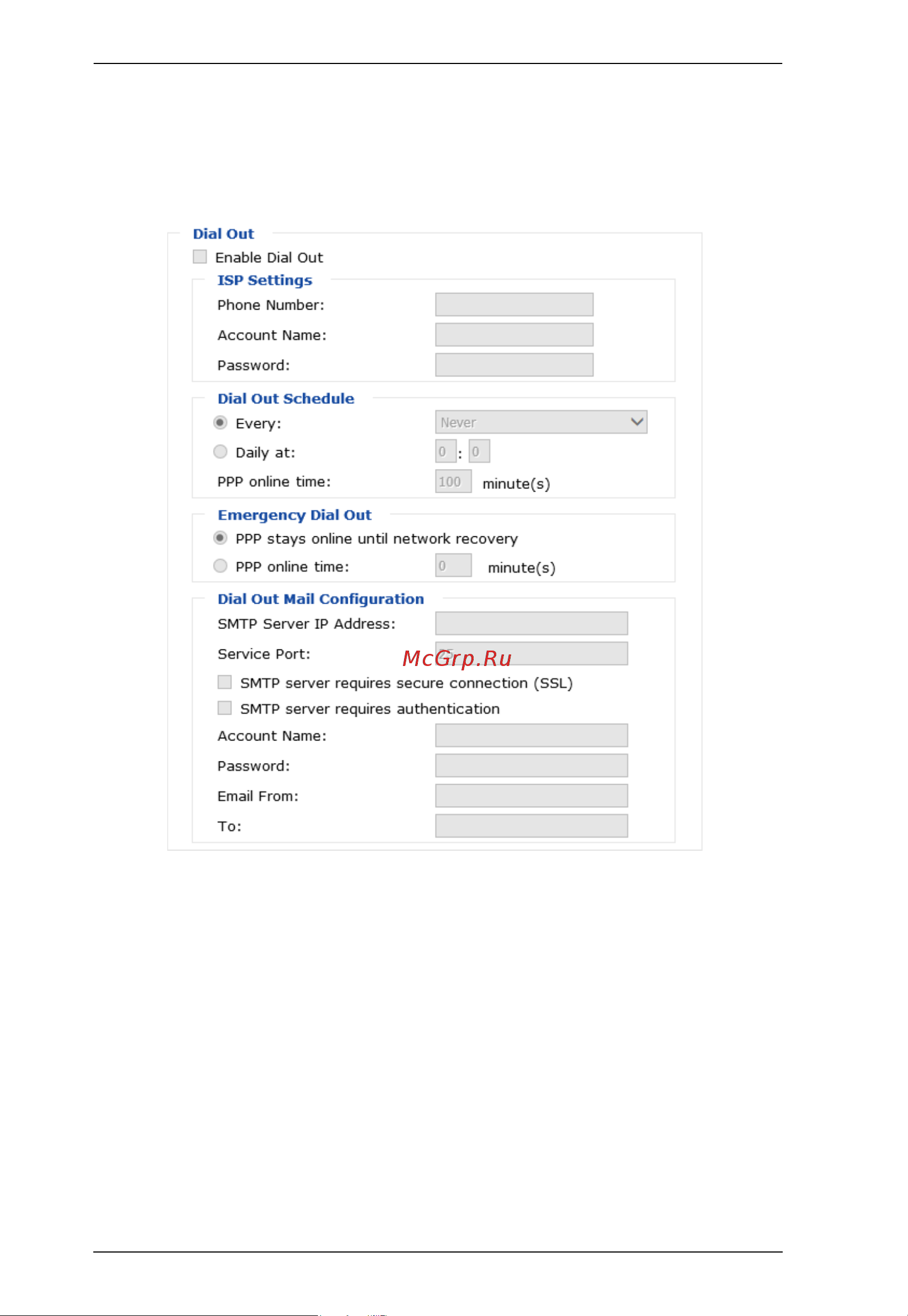

Dial Out
For the dial out function, you must establish an account with an Internet
Service Provider, and use a modem to dial up to your ISP account. An
explanation of the Enable Dial Out items is given in the table below:
ISP Settings: Specify the telephone number, account name (username),
and password that you use to connect to your ISP.
Dial Out Schedule: This entry sets up the times you want the CN8000A
to dial out over the ISP connection. Every provides a listing of fixed times
from every hour to every four hours.
If you select Every two hours (for example), the CN8000A will start
dialing out every two hours beginning at 00:00.
If you don't want the CN8000A to dial out on a fixed schedule, select
Never from the list.
Daily at will dial out once a day at a specified time. Use the hh:mm format
to specify the time.
