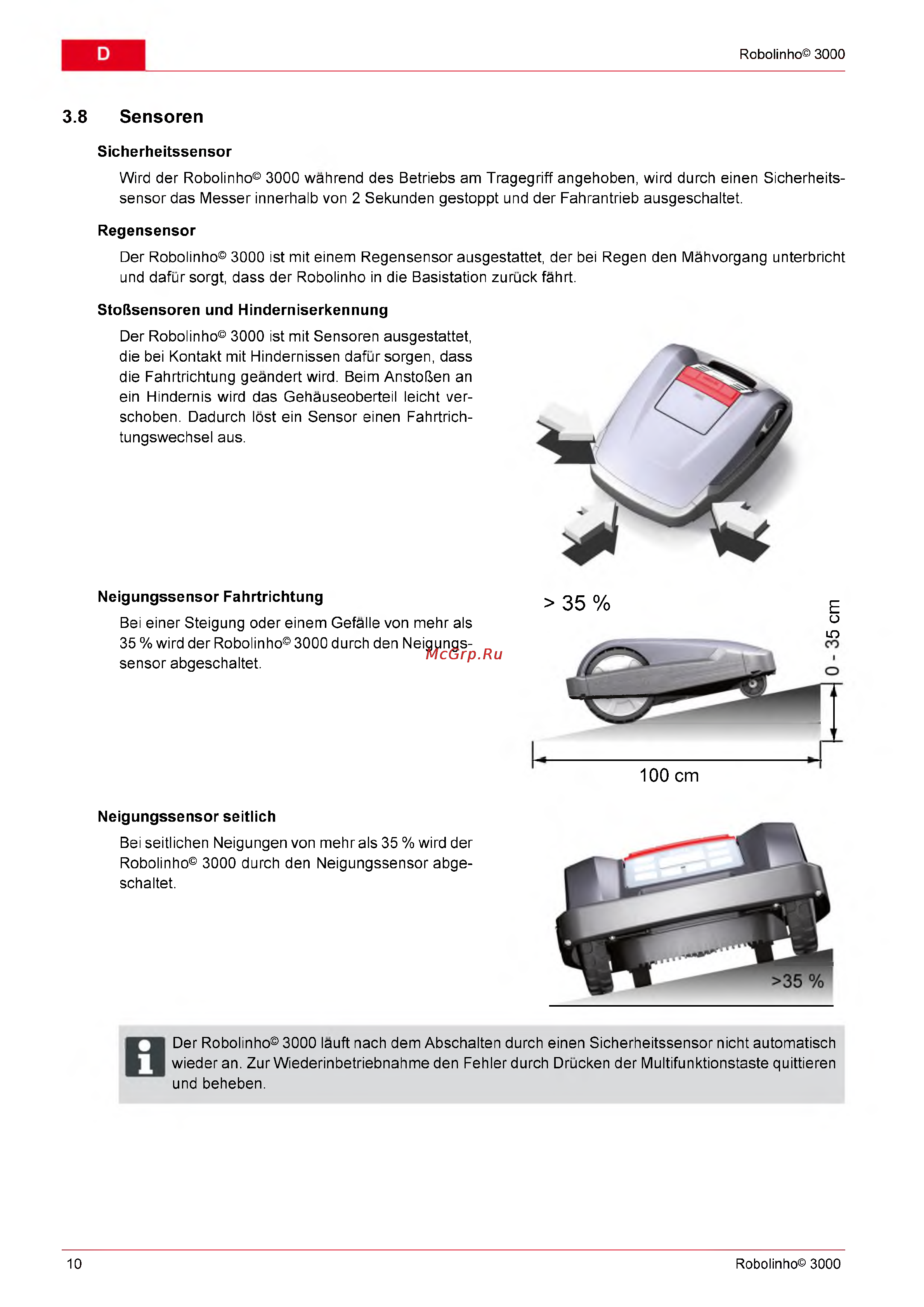

Robolinho© 3000
3.8 Sensoren
Sicherheitssensor
Wird der Robolinho© 3000 wahrend des Betriebs am Tragegriff angehoben, wird durch einen Sicherheits
sensor das Messer innerhalb von 2 Sekunden gestoppt und der Fahrantrieb ausgeschaltet.
Regensensor
Der Robolinho© 3000 ist mit einem Regensensor ausgestattet, der bei Regen den Mahvorgang unterbricht
und dafur sorgt, dass der Robolinho in die Basistation zuruck fahrt.
StoRsensoren und Hinderniserkennung
Der Robolinho© 3000 ist mit Sensoren ausgestattet,
die bei Kontakt mit Hindernissen dafur sorgen, dass
die Fahrtrichtung geandert wird. Beim Anstoften an
ein Hindernis wird das Gehauseoberteil leicht ver-
schoben. Dadurch lost ein Sensor einen Fahrtrich-
tungswechsel aus.
Neigungssensor Fahrtrichtung
Bei einer Steigung oder einem Gefalle von mehr als
35 % wird der Robolinho© 3000 durch den Neigungs
sensor abgeschaltet.
> 35 %
o
IO
E
100 cm
Neigungssensor seitlich
Bei seitlichen Neigungen von mehr als 35 % wird der
Robolinho© 3000 durch den Neigungssensor abge
schaltet.
D er Robolinho© 3000 lauft nach dem Abschalten durch einen Sicherheitssensor nicht automatisch
wieder an. Zur Wiederinbetriebnahme den Fehler durch Drucken der Multifunktionstaste quittieren
und beheben.
10 Robolinho© 3000
