Produktbeschreibung
ALKO

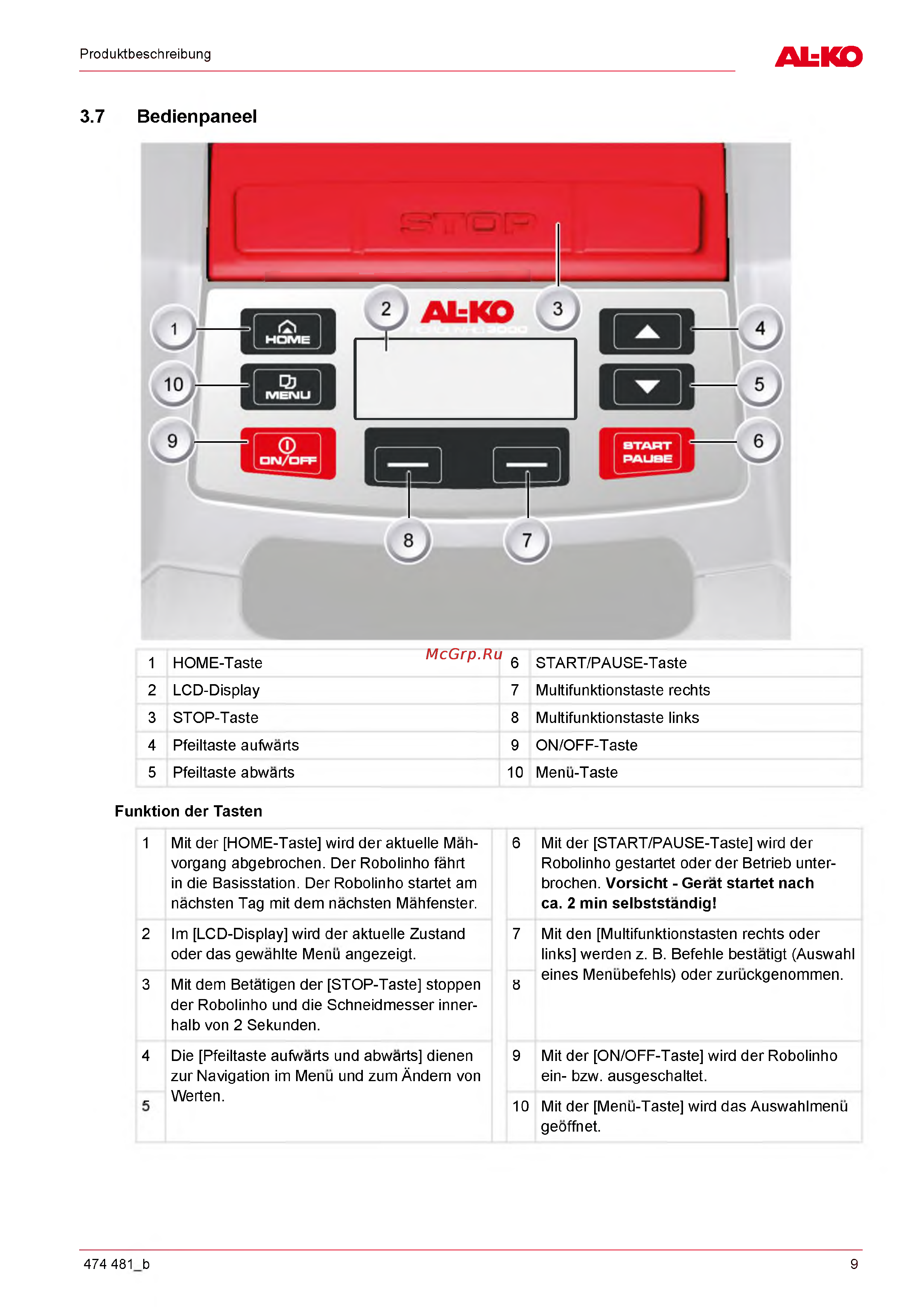

3.7 Bedienpaneel
1 HOME-Taste 6 START/PAUSE-Taste
2 LCD-Display 7 Multifunktionstaste rechts
3 STOP-Taste 8 Multifunktionstaste links
4 Pfeiltaste aufwarts 9 ON/OFF-Taste
5 Pfeiltaste abwarts 10 Menu-Taste
Funktion der Tasten
1 Mit der [HOME-Taste] wird der aktuelle Mah-
vorgang abgebrochen. Der Robolinho fahrt
in die Basisstation. Der Robolinho startet am
nachsten Tag mit dem nachsten Mahfenster.
2 Im [LCD-Display] wird der aktuelle Zustand
oder das gewahlte Menu angezeigt.
3 Mit dem Betatigen der [STOP-Taste] stoppen
der Robolinho und die Schneidmesser inner-
halb von 2 Sekunden.
4 Die [Pfeiltaste aufwarts und abwarts] dienen
zur Navigation im Menu und zum Andern von
„ Werten.
6 Mit der [START/PAUSE-Taste] wird der
Robolinho gestartet oder der Betrieb unter-
brochen. Vorsicht - Gerat startet nach
ca. 2 min selbststandig!
7 Mit den [Multifunktionstasten rechts oder
links] werden z. B. Befehle bestatigt (Auswahl
eines Menubefehls) oder zuruckgenommen.
8
9 Mit der [ON/OFF-Taste] wird der Robolinho
ein- bzw. ausgeschaltet.
10 Mit der [Menu-Taste] wird das Auswahlmenu
geoffnet.
474 481 b 9
