D
Robolinho© 3000

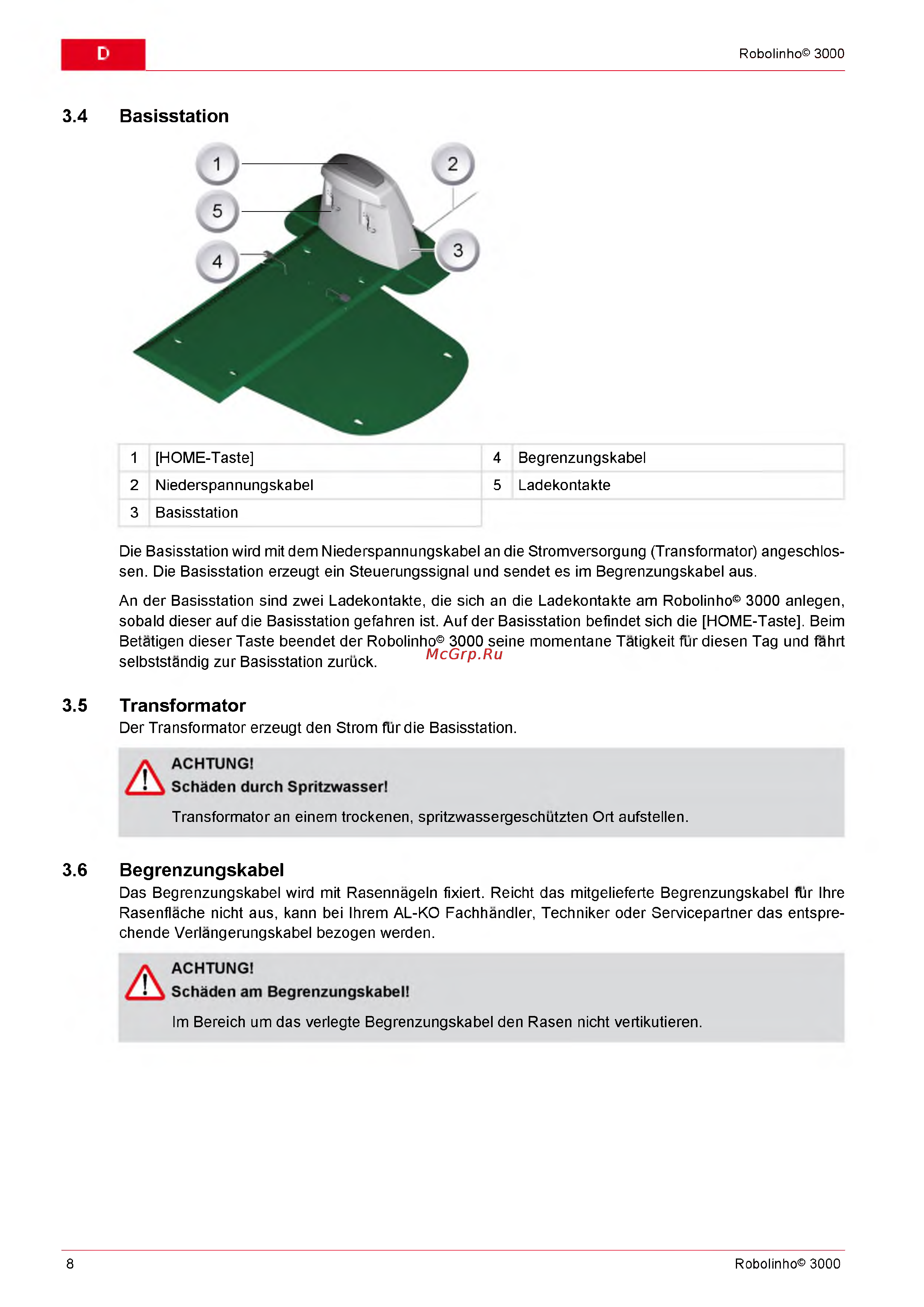

3.4 Basisstation
1 [HOME-Taste]
2 Niederspannungskabel
4 Begrenzungskabel
5 Ladekontakte
3 Basisstation
Die Basisstation wird mit dem Niederspannungskabel an die Stromversorgung (Transformator) angeschlos-
sen. Die Basisstation erzeugt ein Steuerungssignal und sendet es im Begrenzungskabel aus.
An der Basisstation sind zwei Ladekontakte, die sich an die Ladekontakte am Robolinho© 3000 anlegen,
sobald dieser auf die Basisstation gefahren ist. Auf der Basisstation befindet sich die [HOME-Taste]. Beim
Betatigen dieser Taste beendet der Robolinho© 3000 seine momentane Tatigkeit fur diesen Tag und fahrt
selbststandig zur Basisstation zuruck.
3.5 Transform ator
Der Transformator erzeugt den Strom fur die Basisstation.
3.6 Begrenzungskabel
Das Begrenzungskabel wird mit Rasennageln fixiert. Reicht das mitgelieferte Begrenzungskabel fur Ihre
Rasenflache nicht aus, kann bei Ihrem AL-KO Fachhandler, Techniker oder Servicepartner das entspre-
chende Verlangerungskabel bezogen werden.
Transformator an einem trockenen, spritzwassergeschutzten Ort aufstellen.
Im Bereich um das verlegte Begrenzungskabel den Rasen nicht vertikutieren.
8 Robolinho© 3000
