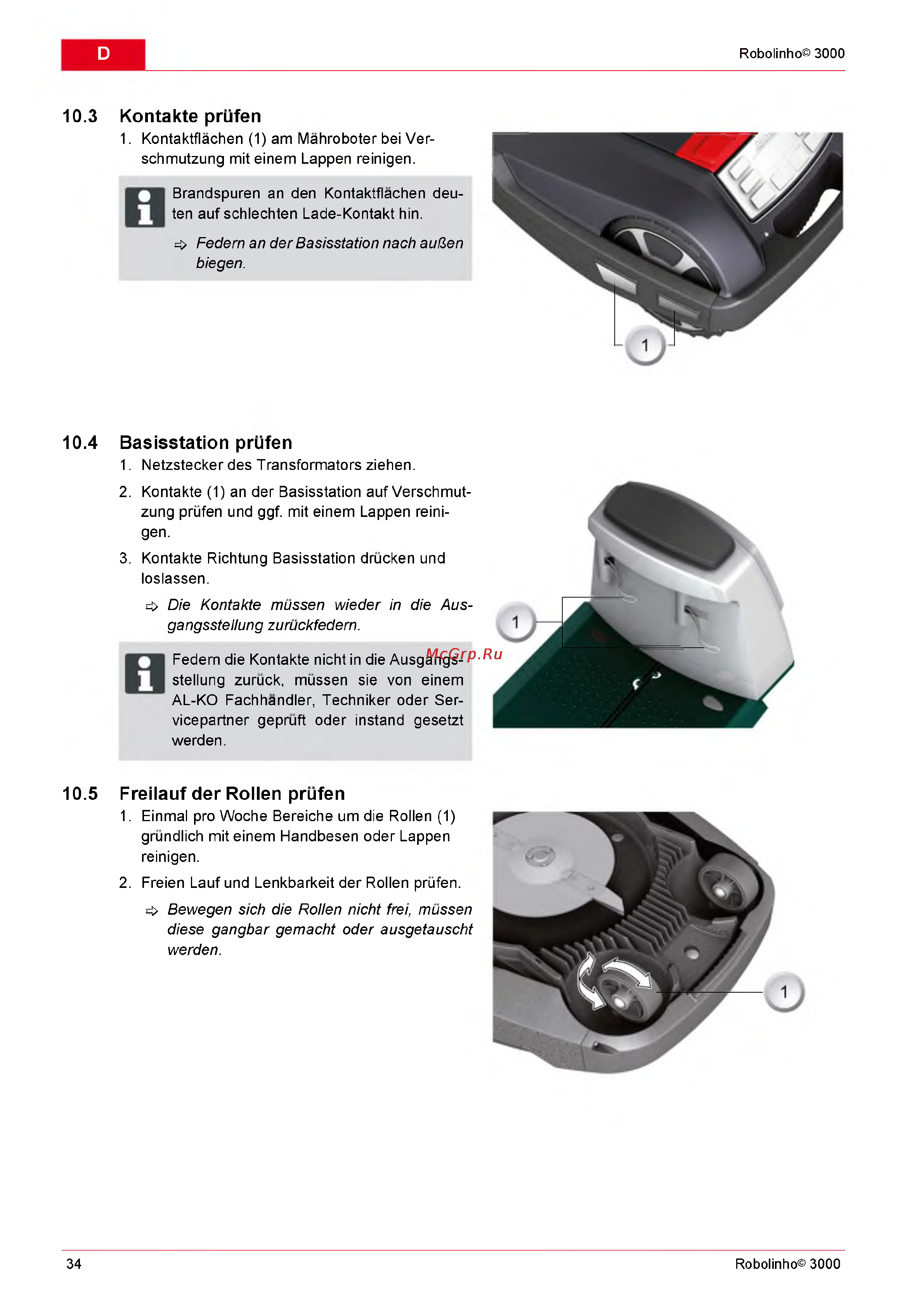

D
Robolinho© 3000
10.3
10.4
10.5
Kontakte prufen
1. Kontaktflachen (1) am Mahroboter bei Ver-
schmutzung mit einem Lappen reinigen.
B randspuren an den Kontaktflachen deu-
ten auf schlechten Lade-Kontakt hin.
^ Federn an der Basisstation nach auften
biegen.
B asisstation prufen
1. Netzstecker des Transformators ziehen.
2. Kontakte (1) an der Basisstation auf Verschmut-
zung prufen und ggf. mit einem Lappen reini
gen.
3. Kontakte Richtung Basisstation drucken und
loslassen.
^ Die Kontakte mussen wieder in die Aus-
gangsstellung zuruckfedern.
F edern die Kontakte nicht in die Ausgangs-
stellung zuruck, mussen sie von einem
AL-KO Fachhandler, Techniker oder Ser-
vicepartner gepruft oder instand gesetzt
werden.
Freilauf der Rollen prufen
1. Einmal pro Woche Bereiche um die Rollen (1)
grundlich mit einem Handbesen oder Lappen
reinigen.
2. Freien Lauf und Lenkbarkeit der Rollen prufen.
^ Bewegen sich die Rollen nicht frei, mussen
diese gangbar gemacht oder ausgetauscht
werden.
34 Robolinho© 3000
