7-32
Setup Mode
The WHEEL Page
The WHEEL Page
The two wheels are typical of what is found on many keyboards. The left one is normally used for
pitch bend and springs back to center, while the right wheel is normally used as a standard Mod
Wheel. On the Wheel page in the Setup editor, the pitch wheel has two parameters—one for
pushing the pitch wheel up and one for pushing it down—whereas the mod wheel has one.

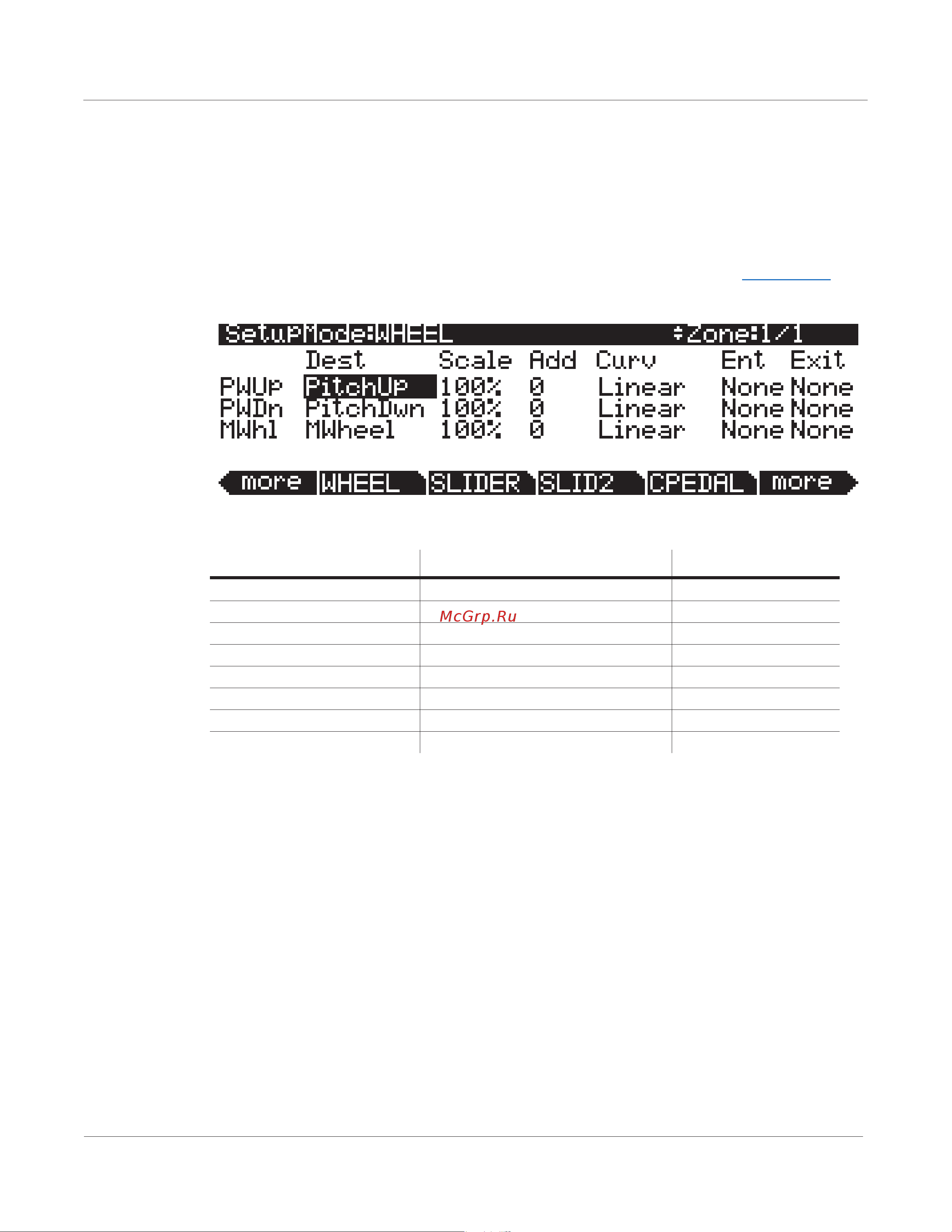

The WHEEL page parameters are described in Continuous Controller Parameters on page 7-29.
Parameter Range of Values Default
Destination (PWUp) Control Destination List PitchUp
Destination (PWDn) Control Destination List PitchDwn
Destination (MWhl) Control Destination List MWheel
Scale ± 300% 100%
Add -128 to 127 0
Curve Linear, Compress, Expand Linear
Entry Value None, 0 to 127 None
Exit Value None, 0 to 127 None
