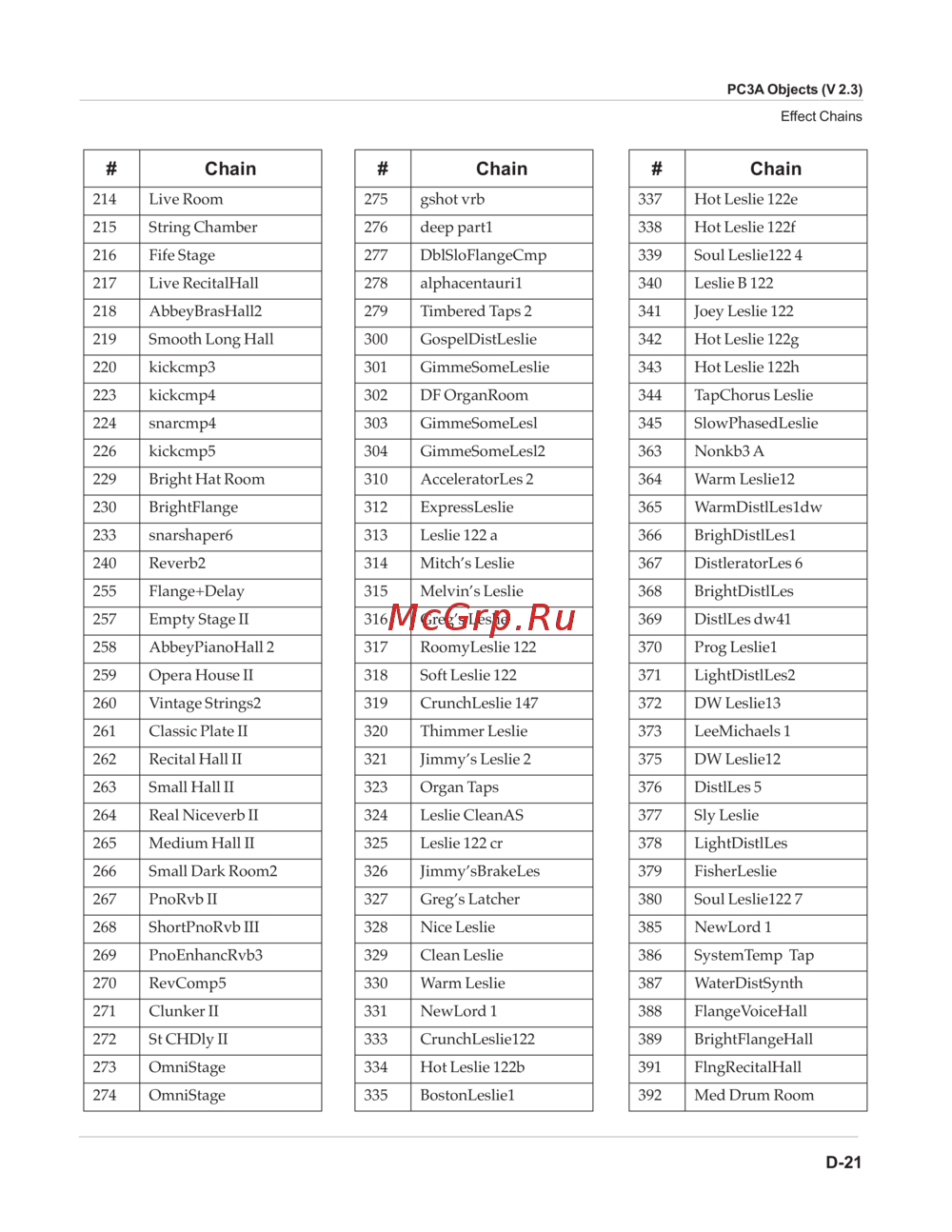

PC3A Objects (V 2.3)
Effect Chains
D-21
# Chain # Chain # Chain
214 Live Room 275 gshot vrb 337 Hot Leslie 122e
215 String Chamber 276 deep part1 338 Hot Leslie 122f
216 Fife Stage 277 DblSloFlangeCmp 339 Soul Leslie122 4
217 Live RecitalHall 278 alphacentauri1 340 Leslie B 122
218 AbbeyBrasHall2 279 Timbered Taps 2 341 Joey Leslie 122
219 Smooth Long Hall 300 GospelDistLeslie 342 Hot Leslie 122g
220 kickcmp3 301 GimmeSomeLeslie 343 Hot Leslie 122h
223 kickcmp4 302 DF OrganRoom 344 TapChorus Leslie
224 snarcmp4 303 GimmeSomeLesl 345 SlowPhasedLeslie
226 kickcmp5 304 GimmeSomeLesl2 363 Nonkb3 A
229 Bright Hat Room 310 AcceleratorLes 2 364 Warm Leslie12
230 BrightFlange 312 ExpressLeslie 365 WarmDistlLes1dw
233 snarshaper6 313 Leslie 122 a 366 BrighDistlLes1
240 Reverb2 314 Mitch’s Leslie 367 DistleratorLes 6
255 Flange+Delay 315 Melvin’s Leslie 368 BrightDistlLes
257 Empty Stage II 316 Greg’s Leslie 369 DistlLes dw41
258 AbbeyPianoHall 2 317 RoomyLeslie 122 370 Prog Leslie1
259 Opera House II 318 Soft Leslie 122 371 LightDistlLes2
260 Vintage Strings2 319 CrunchLeslie 147 372 DW Leslie13
261 Classic Plate II 320 Thimmer Leslie 373 LeeMichaels 1
262 Recital Hall II 321 Jimmy’s Leslie 2 375 DW Leslie12
263 Small Hall II 323 Organ Taps 376 DistlLes 5
264 Real Niceverb II 324 Leslie CleanAS 377 Sly Leslie
265 Medium Hall II 325 Leslie 122 cr 378 LightDistlLes
266 Small Dark Room2 326 Jimmy’sBrakeLes 379 FisherLeslie
267 PnoRvb II 327 Greg’s Latcher 380 Soul Leslie122 7
268 ShortPnoRvb III 328 Nice Leslie 385 NewLord 1
269 PnoEnhancRvb3 329 Clean Leslie 386 SystemTemp Tap
270 RevComp5 330 Warm Leslie 387 WaterDistSynth
271 Clunker II 331 NewLord 1 388 FlangeVoiceHall
272 St CHDly II 333 CrunchLeslie122 389 BrightFlangeHall
273 OmniStage 334 Hot Leslie 122b 391 FlngRecitalHall
274 OmniStage 335 BostonLeslie1 392 Med Drum Room
