11-10
Master Mode
OUTPUT
Default Sequence
The Default Sequence parameter species the song that is used as a template for new and clear
songs in Song mode.

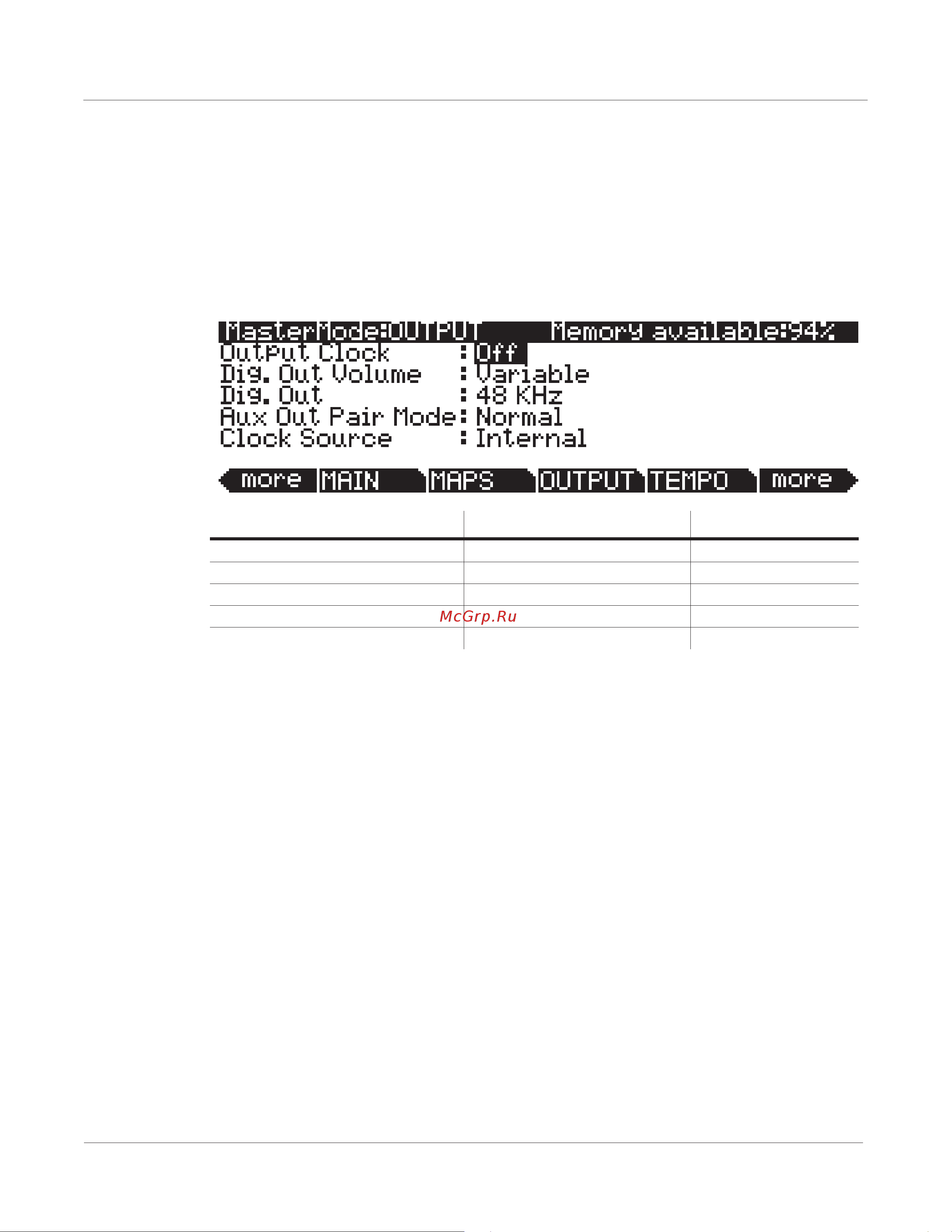

OUTPUT
The OUTPUT page has options for digital audio output volume and sample rate. You can also set
the analog Aux outputs to mirror the primary analog outputs. You can also control the MIDI
clock source and MIDI clock output.
Parameter Range of Values Default
Output Clock Off, On Off
Digital Output Volume (Dig. out volume) Variable, Fixed Variable
Digital Output (Dig.Out) Digital Output List 48 KHz
Aux Out Pair Mode Normal, Mirror Primary Outputs Normal
Clock Source Internal, External Internal
Output Clock
To send a MIDI clock pulse to the MIDI Out port, set this parameter to On. Otherwise, set it to
O.
Digital Output Volume (Dig. out volume)
The Digital Output Volume parameter species the behavior of the PC3A’s Digital Output.
Setting this parameter to Variable makes the Digital Output respond to changes made on the
volume slider. Setting this parameter to Fixed makes the Digital Output output a signal with a
xed volume.
Digital Output (Dig. Out)
This Digital Output parameter species the PC3A’s digital output sample rate. Internally clocked
sample rates go from 44.1K up to 192K.
Externally synced sample rates cover 20-220KHz in 3 ranges. Be sure the external clock frequency
is within the range you select.
Aux Out Pair Mode
The Aux Out Pair Mode parameter species the behavior of the Secondary Audio Outputs
(located on the back panel underneath the “Balanced Analog Outputs - AUX” label. Setting this
parameter to Normal makes the Aux Outputs behave as such. Setting this parameter to Mirror
Primary Outputs makes the Aux Outputs output the same audio signal as the Primary output.
