Setup Mode
The Ribbon Conguration (RIBCFG) Page
7-49
Press Delete to delete the pattern from memory. Press Rename to rename the pattern and save.
Pressing Save gives you the option to save the pattern or rename and save. To create a new
ShiftPatt, edit an existing pattern and choose Rename when saving. Press Exit to return to the
ARPEGGIATOR page. When exiting the editor, it will automatically give you the option to save
the pattern if changes have been made. For more detailed instructions on these functions, see
Saving and Naming on page 5-3.

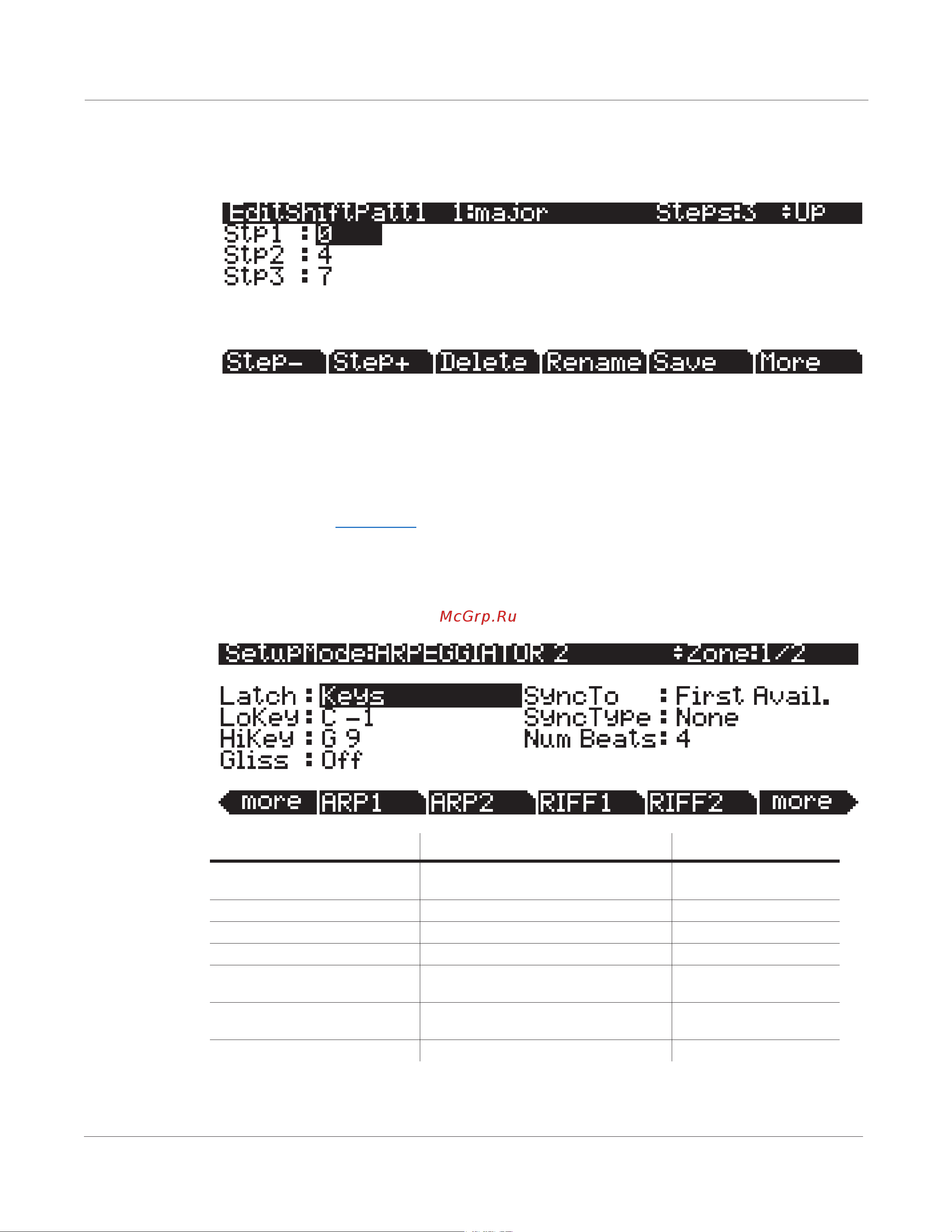

The ARPEGGIATOR 2 Page
Parameter Range of Values Default
Latch Keys, Overplay, Arpeg, Add, Auto,
Pedals, Autohold, 1NoteAuto
Keys
Low Key C -1 to G9 C -1
High Key C -1 to G9 G9
Glissando Off, On Off
SyncTo First Avail., Riff1-16, Main Seq., Arp1-16,
FirstRiff.Av., FirstArp.Av.,
First Avail.
SyncType None, DownBeat, AnyBeat,
DownBeatWait, AnyBeatWait
None
Num Beats 1-32 4
